3M Products & Supplies

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-35/10-500, Length 19.7 in (500 mm), 5/case - 7010403591

Sold As: 5-Pack
SKU: 7010403591
MPN: 7010403591
Stock Item: Stock items typically ship within 2-3 business days
UPC: 34001895590536
3M ID: DE999965325
5 Digit UPC: 59053
$408.10 ($81.62 / Count)
Hurry up! Current stock:

Product Description

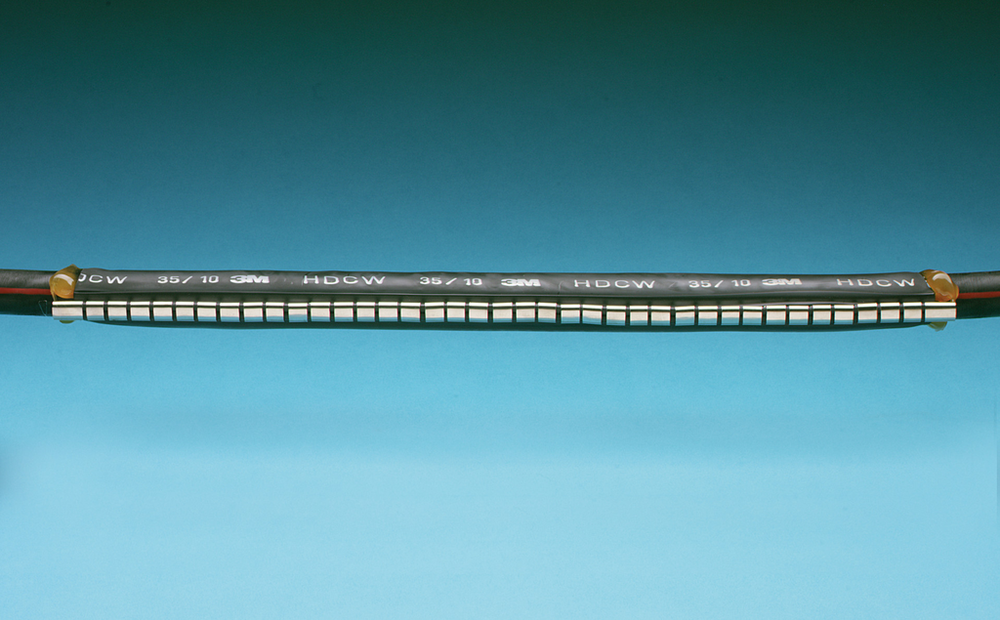

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Made of adhesive-lined, cross-linked polyolefin
  • Excellent protection against mechanical stress
  • Thick-walled sheet is tough and reliable
  • Rated for 35 kV applications
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • Offers excellent corrosion protection on undamaged cables

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric)500.0
Sleeve Length19.7
Inner Diameter Before Shrink (Imperial) UOMin
Product TechnologyHeat Shrink
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric)8.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Voltage1 kV
Product ColorBlack
Cable TypeAny type of cable
Sleeve Length UOMin
Heat Shrink TypeHeat Shrink Molded Shapes
Jacket Repair Range0.39 to 1.38 Inch
Units per Case5.0
Minimum Expanded Tubing I. D.1.69
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Inner Diameter After Shrink (Imperial)0.3
Overall Length (Imperial)19.7
Inner Diameter Before Shrink (Metric)50.0
Splice TypeHeat Shrink
Overall Length (Imperial) UOMin
MaterialAdhesive-lined, Cross-Linked Polyolefin
Inner Diameter Before Shrink (Imperial)1.97
Halogen FreeYes
UV ResistantYes
Minimum Expanded Tubing I. D. UOMin
Product TypeSplice
