3M Products & Supplies

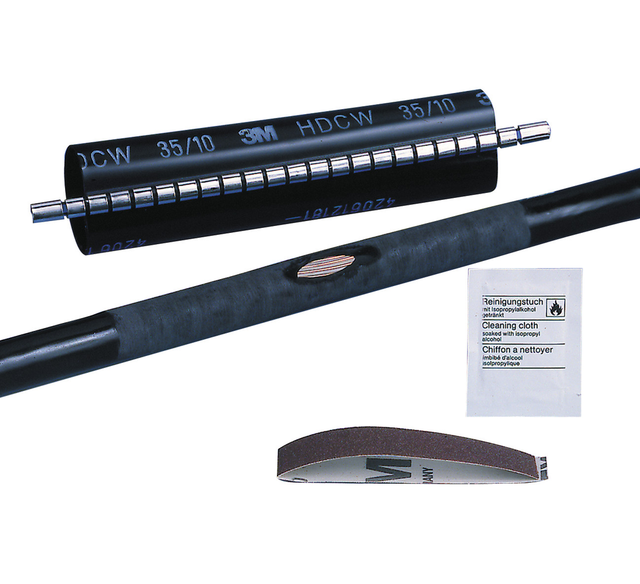

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-35/10-750, Length 29.5 in (750 mm), 5/case - 7000138421

Sold As: 5-Pack
SKU: 7000138421
MPN: 7000138421
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590559
3M ID: DE999965333
5 Digit UPC: 59055
$563.87 ($112.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Rated for 35 kV applications
  • Made of adhesive-lined, cross-linked polyolefin
  • Offers excellent corrosion protection on undamaged cables
  • Thick-walled sheet is tough and reliable
  • Excellent protection against mechanical stress
  • ANSI Certified and RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Product TypeSplice
Dielectric Strength (V/mil)14 kV/mm
Adhesive LinedYes
Sleeve Length UOMin
Inner Diameter After Shrink (Metric)8.0
Chemical ResistantYes
Cable TypeAny type of cable
Product ColorBlack
Overall Length (Imperial)29.5
Inner Diameter After Shrink (Imperial) UOMin
Minimum Shrink Temperature (Celsius)125.0
Overall Length (Metric)750.0
Overall Length (Metric) UOMmm
Sleeve Length29.5
Jacket Repair Range0.39 to 1.38 Inch
Inner Diameter Before Shrink (Metric)50.0
Splice TypeHeat Shrink
Inner Diameter After Shrink (Metric) UOMmm
Heat Shrink TypeHeat Shrink Molded Shapes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D.1.69
Minimum Expanded Tubing I. D. UOMin
Flame RetardantNo
Inner Diameter Before Shrink (Imperial) UOMin
Product FormSleeve-roll
Inner Diameter After Shrink (Imperial)0.3
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
UV ResistantYes
Units per Case5.0
Maximum Voltage Rating1 kV to 35 kV
MaterialAdhesive-lined, Cross-Linked Polyolefin
Product TechnologyHeat Shrink
Inner Diameter Before Shrink (Imperial)1.97
Elongation UOM%
Voltage1 kV
Halogen FreeYes
