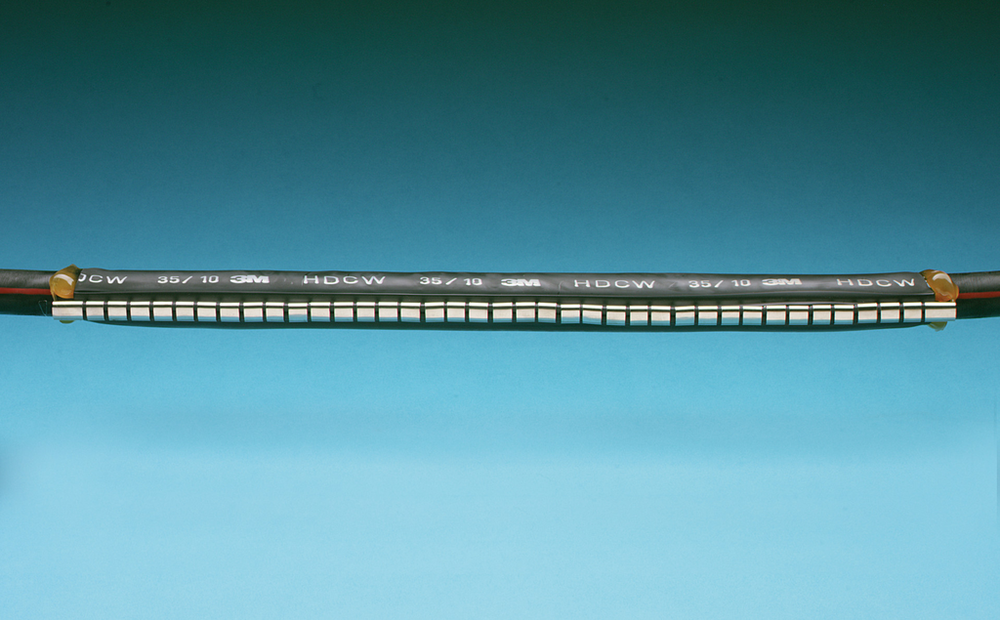

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-80/25-250, Length 9.8 in (250 mm), 5/case - 7010403595

Sold As: 5-Pack
SKU: 7010403595
MPN: 7010403595
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590634
3M ID: DE999965416
5 Digit UPC: 59063
$314.60 ($62.92 / Count)
Hurry up! Current stock:

Product Description

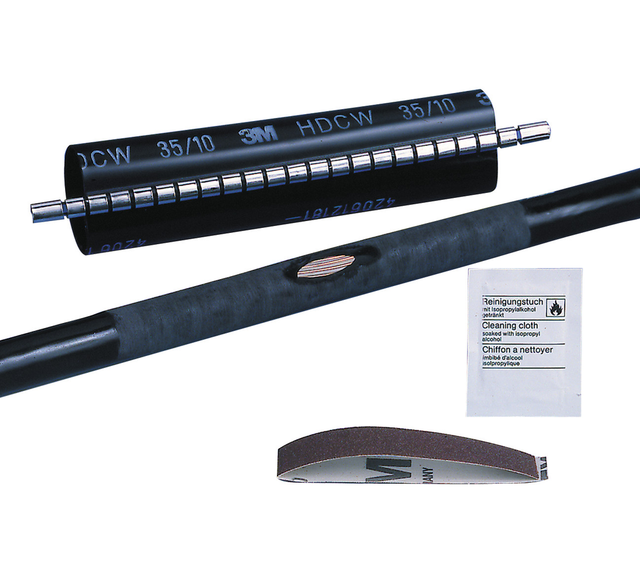

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Rated for 35 kV applications
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • Thick-walled sheet is tough and reliable
  • Offers excellent corrosion protection on undamaged cables
  • Excellent protection against mechanical stress
  • Made of adhesive-lined, cross-linked polyolefin

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Heat Shrink TypeHeat Shrink Molded Shapes
Overall Length (Imperial)9.8
Sleeve Length9.8
UV ResistantYes
Halogen FreeYes
Inner Diameter Before Shrink (Imperial)3.94
Overall Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product ColorBlack
MaterialAdhesive-lined, Cross-Linked Polyolefin
Units per Case5.0
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Minimum Expanded Tubing I. D.3.66
Inner Diameter Before Shrink (Metric)100.0
Sleeve Length UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Product TypeSplice
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.9
Splice TypeHeat Shrink
Inner Diameter After Shrink (Imperial) UOMin
Voltage1 kV
Inner Diameter After Shrink (Metric)23.0
Overall Length (Metric)1219.0
Jacket Repair Range0.98 to 3.15 Inch
Cable TypeAny type of cable
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Product TechnologyHeat Shrink
