3M Products & Supplies

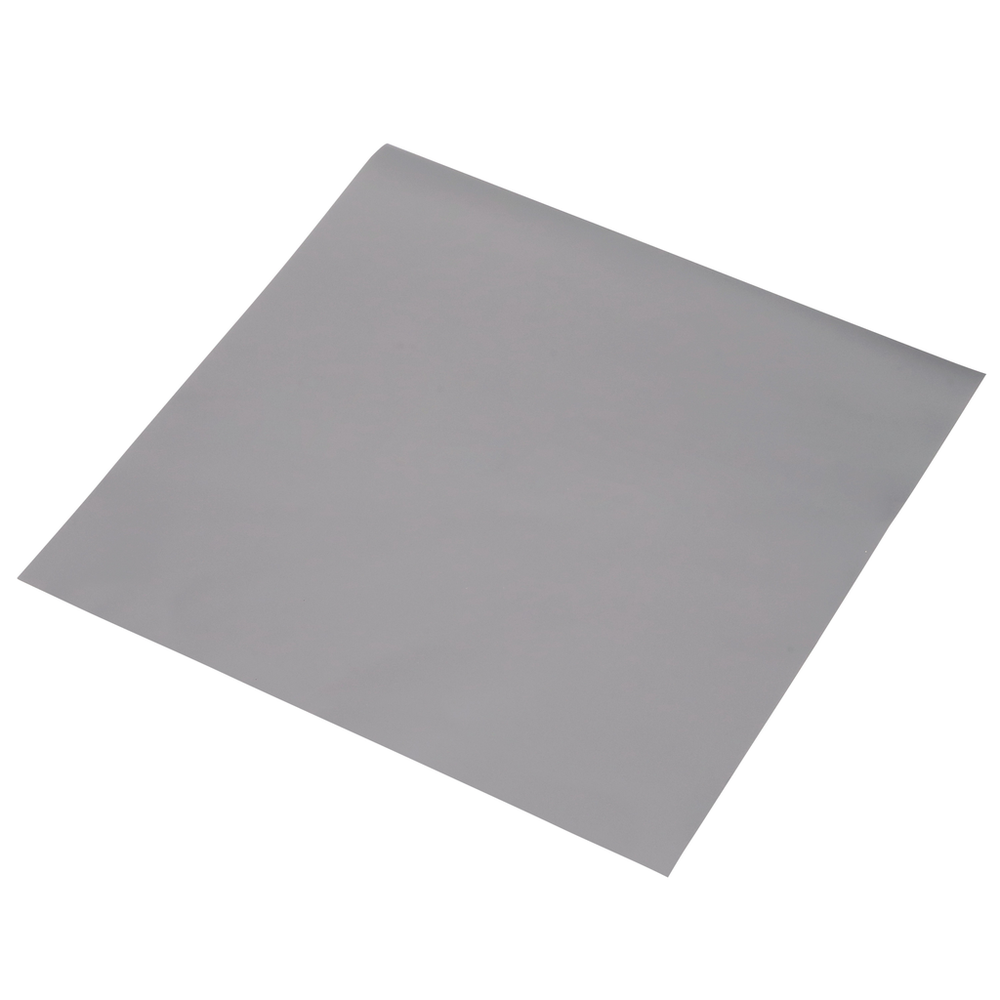

3M™ EMI Absorber & Magnetic Shielding Material AB3030, 340 mm x 340 mm, 100 Sheets/Case - 7100350312

Sold As: 100-Pack
SKU: 7100350312
MPN: 7100350312
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060611017
3M ID: XN400536415
$10,345.05 ($103.45 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber & Magnetic Shielding Material AB3000 Series is a magnetic, high-frequency EMI absorber for near-field applications from 1 GHz to 10 GHz . The broadband absorber AB3000 series features composite materials including carrier resin, magnetic fillers and an optional acrylic pressure sensitive adhesive (PSA). Target frequency range – or the optimal range for peak performance – is 3 GHz - 7 GHz. The magnetic-shielding material is designed to suppress near-field EMI noise and interact with and/or influence an electro-magnetic field to reduce disruptive EMI transmissions. This EMI absorber sheet is designed to also efficiently couple to the EM field and to provide EM absorbing.

Features

  • Targeted permeability for 300 kHz -15 MHz for EM field coupling
  • Supplied on a removable liner for easy handling
  • Absorbing performance for broadband or focused range
  • 3M EMI absorber performance from 1 GHz to 10 GHz
  • Multiple thickness options available
  • Available with and without (WO) adhesive
Spec Sheet



Downloads

Specifications

Adhesive Thickness (Metric) UOMmm
Adhesive Thickness (Imperial)0.394
AdhesivePressure-sensitive Acrylic
Overall Width (Imperial) UOMin
Number of Adhesive Sides1
Adhesive Thickness (Metric)0.01
Frequency Range1 GHz - 10 GHz
Magnetic Permeability30
Overall Length (Metric)340.0
Total Thickness12.992 mil
Overall Length (Metric) UOMmm
Overall Thickness (Metric)0.31
Overall Width (Imperial)13.386
Total Tape Thickness without Liner (Imperial)12.992
Total Thickness (Metric)0.31
Overall Width (Metric) UOMmm
Overall Length (Imperial)13.386
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; EMI Shields; Sensors; Smartphones; Tablets
Overall Length (Imperial) UOMin
Overall Width (Metric)340.0
Overall Thickness (Imperial) UOMmil
Overall Thickness (Metric) UOMmm
ApplicationMagnetic Shielding
Overall Thickness (Imperial)12.205
Country of OriginSouth Korea
Total Tape Thickness without Liner (Imperial) UOMmil
