3M Products & Supplies

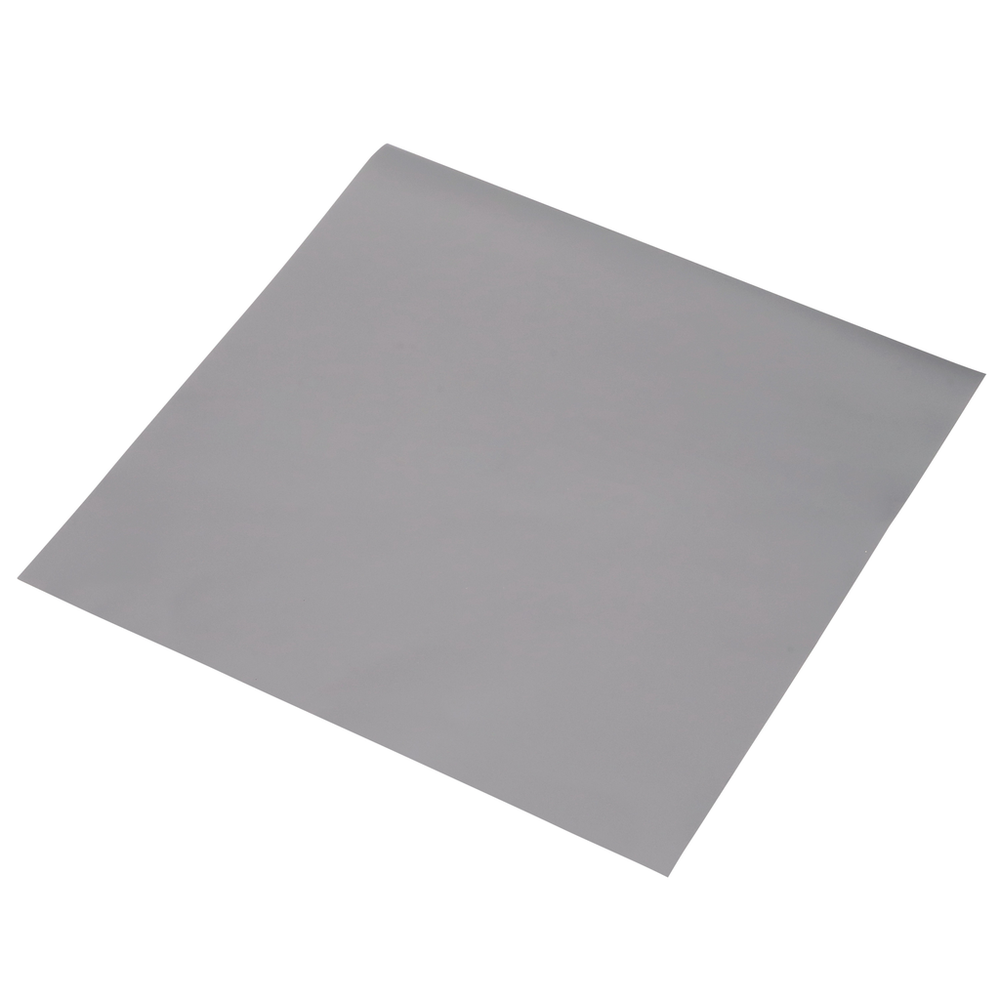

3M™ EMI Absorber & Magnetic Shielding Material AB3050, 340 mm x 340 mm, 50 Sheets/Case - 7100350310

Sold As: 50-Pack
SKU: 7100350310
MPN: 7100350310
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060610980
3M ID: XN400536423
$7,758.78 ($155.18 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber & Magnetic Shielding Material AB3000 Series is a magnetic, high-frequency EMI absorber for near-field applications from 1 GHz to 10 GHz . The broadband absorber AB3000 series features composite materials including carrier resin, magnetic fillers and an optional acrylic pressure sensitive adhesive (PSA). Target frequency range – or the optimal range for peak performance – is 3 GHz - 7 GHz. The magnetic-shielding material is designed to suppress near-field EMI noise and interact with and/or influence an electro-magnetic field to reduce disruptive EMI transmissions. This EMI absorber sheet is designed to also efficiently couple to the EM field and to provide EM absorbing.

Features

  • 3M EMI absorber performance from 1 GHz to 10 GHz
  • Absorbing performance for broadband or focused range
  • Available with and without (WO) adhesive
  • Multiple thickness options available
  • Targeted permeability for 300 kHz -15 MHz for EM field coupling
  • Supplied on a removable liner for easy handling
Spec Sheet



Downloads

Specifications

Total Tape Thickness without Liner (Imperial)20.079
Overall Length (Imperial) UOMin
Adhesive Thickness (Imperial)0.394
Overall Width (Metric) UOMmm
Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial)13.386
Total Thickness20.079 mil
Total Thickness (Metric)0.51
Overall Width (Imperial) UOMin
Overall Width (Metric)340.0
Total Tape Thickness without Liner (Imperial) UOMmil
Number of Adhesive Sides1
Magnetic Permeability30
Adhesive Thickness (Metric)0.01
Overall Width (Imperial)13.386
Overall Thickness (Metric)0.51
ApplicationMagnetic Shielding
Overall Thickness (Imperial) UOMmil
Country of OriginSouth Korea
Overall Length (Metric)340.0
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; EMI Shields; Sensors; Smartphones; Tablets
Overall Thickness (Metric) UOMmm
AdhesivePressure-sensitive Acrylic
Overall Thickness (Imperial)20.079
Overall Length (Metric) UOMmm
Frequency Range1 GHz - 10 GHz
