3M Products & Supplies

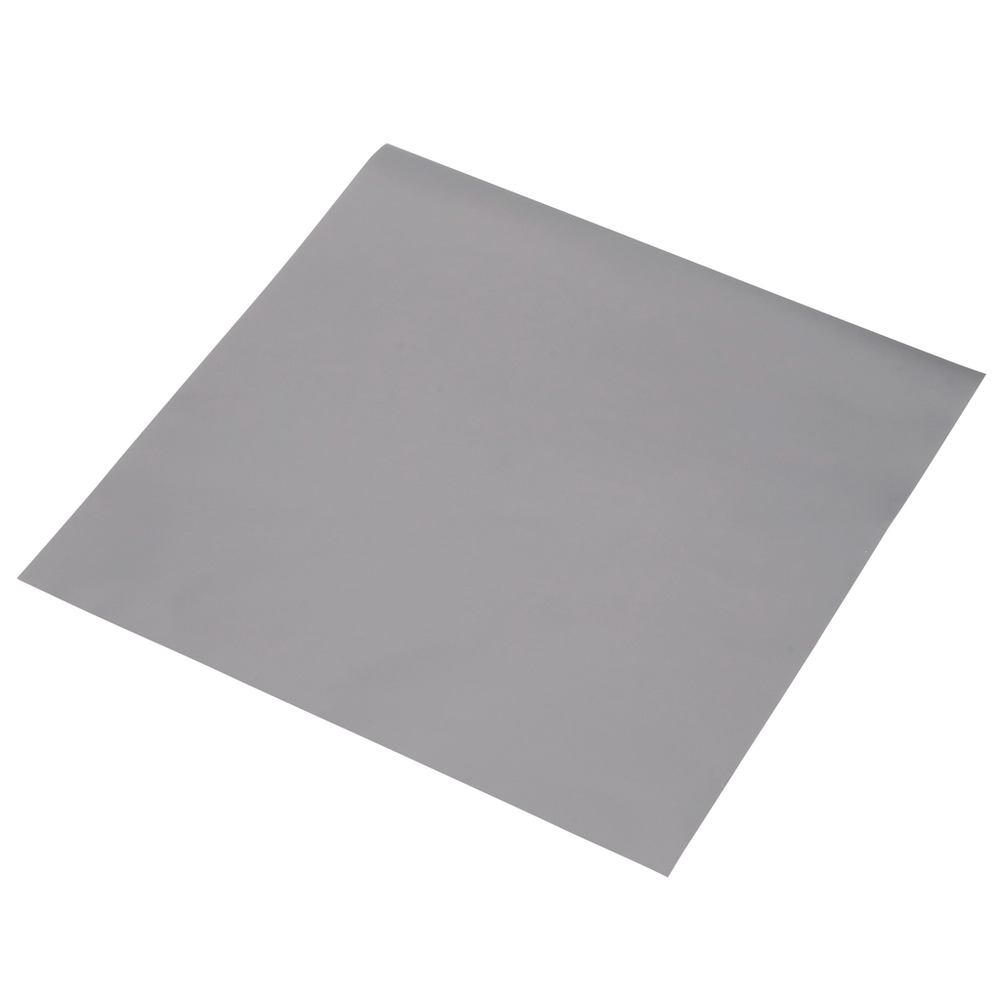

3M™ EMI Absorber & Magnetic Shielding Material AB3050-WO, 340 mm x 340 mm, 50 Sheets/Case - 7100350199

Sold As: 50-Pack
SKU: 7100350199
MPN: 7100350199
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060610966
3M ID: XN400536456
$7,138.08 ($142.76 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber & Magnetic Shielding Material AB3000 Series is a magnetic, high-frequency EMI absorber for near-field applications from 1 GHz to 10 GHz . The broadband absorber AB3000 series features composite materials including carrier resin, magnetic fillers and an optional acrylic pressure sensitive adhesive (PSA). Target frequency range – or the optimal range for peak performance – is 3 GHz - 7 GHz. The magnetic-shielding material is designed to suppress near-field EMI noise and interact with and/or influence an electro-magnetic field to reduce disruptive EMI transmissions. This EMI absorber sheet is designed to also efficiently couple to the EM field and to provide EM absorbing.

Features

  • 3M EMI absorber performance from 1 GHz to 10 GHz
  • Targeted permeability for 300 kHz -15 MHz for EM field coupling
  • Absorbing performance for broadband or focused range
  • Multiple thickness options available
  • Available with and without (WO) adhesive
  • Supplied on a removable liner for easy handling
Spec Sheet



Downloads

Specifications

Adhesive Thickness (Metric) UOMmm
ApplicationMagnetic Shielding
Overall Width (Metric) UOMmm
Adhesive Thickness (Metric)0.01
Frequency Range1 GHz - 10 GHz
Magnetic Permeability30
Total Thickness (Metric)0.5
Overall Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)19.685
Overall Thickness (Metric) UOMmm
Overall Width (Imperial)13.386
Overall Length (Imperial) UOMin
Overall Width (Metric)340.0
Overall Length (Metric) UOMmm
Country of OriginSouth Korea
Overall Thickness (Imperial)19.685
Total Tape Thickness without Liner (Imperial) UOMmil
Number of Adhesive Sides0
Overall Length (Imperial)13.386
Total Thickness19.685 mil
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; EMI Shields; Sensors; Smartphones; Tablets
Overall Length (Metric)340.0
Overall Width (Imperial) UOMin
Overall Thickness (Metric)0.5
Adhesive Thickness (Imperial)0.394
AdhesivePressure-sensitive Acrylic
