3M™ Scotch-Weld™ Structural Adhesive Film AF 191XS, .045 wt, 36 in x 3 yd, 1 Roll/Case, Sample - 7010297840

SKU: 7010297840
MPN: 7010297840
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011532332
3M ID: 87250001622
$2,755.02 each
Hurry up! Current stock:

Product Description

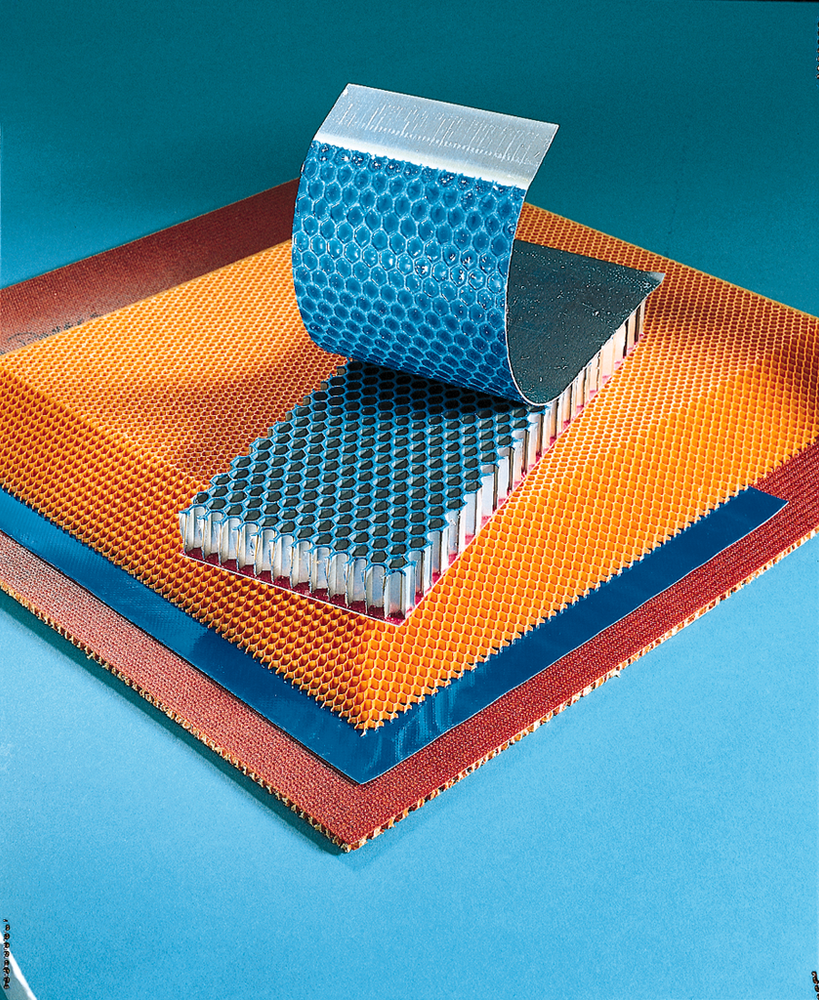

Our 3M™ Scotch-Weld™ Structural Adhesive Film AF 191 encompasses a family of thermosetting modified epoxy adhesives in film form that provide long-term durability and meet specific challenges for metal and composite solid panel and honeycomb sandwich construction, where high fracture toughness and peel strength is required.

Features

  • Unsupported version available for reticulation
  • Designed for 350°F cure (175°C)
  • High-fracture toughness and peel strength
  • Adhesive can be cured from 275°F (135°C) up to 350°F (175°C)
  • Excellent elevated temperature performance
  • Available with lightweight conductive screen for lightning strike/composite surfacing

Downloads

Specifications

Cure Temperature350 Degree Fahrenheit
Adhesive TypeEpoxy
Color FamilyBeige
Overall Width (Metric)1 m
Maximum Operating Temperature (Fahrenheit)350 Degree Fahrenheit
Overall Length (Metric)2.7 m
Overall Length (Imperial)3 yd
Product ColorTan
Minimum Operating Temperature (Celsius)-55 Degree Celsius
Market SegmentStructures
Product NumberAF 191
Maximum Operating Temperature (Celsius)175 Degree Celsius
Minimum Operating Temperature (Fahrenheit)-67 Degree Fahrenheit
Overall Width (Imperial)36 in
