3M Products & Supplies

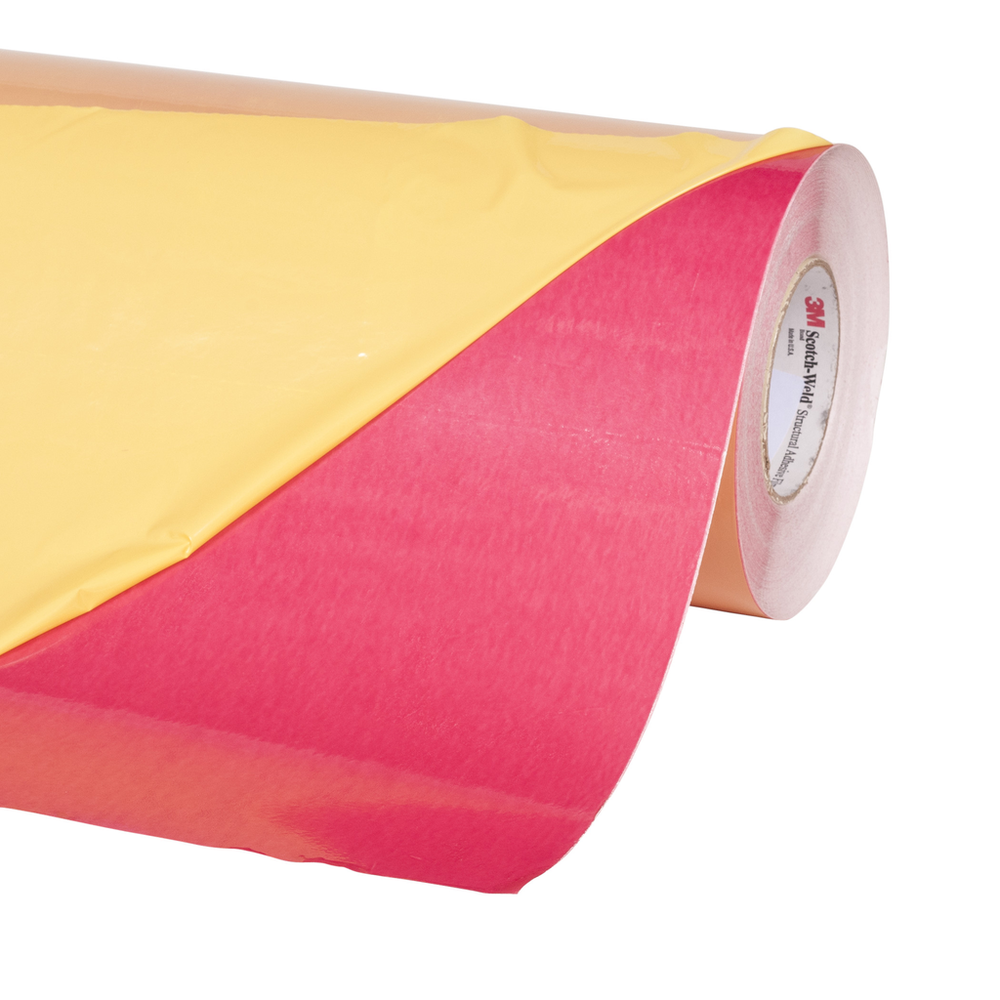

3M™ Scotch-Weld™ Composite Surfacing Film AF 163-2LS, .045 wt, 35 in x 50 yd, 1 Roll/Case - 7010330016

SKU: 7010330016
MPN: 7010330016
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200963841
3M ID: 62018653055
$26,583.79 each
Hurry up! Current stock:

Product Description

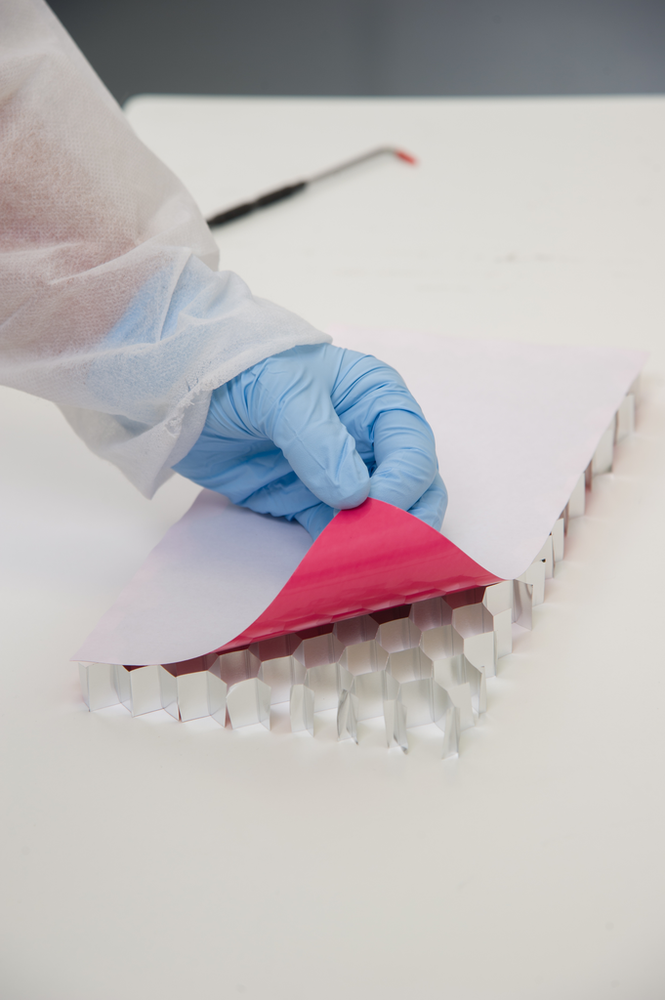

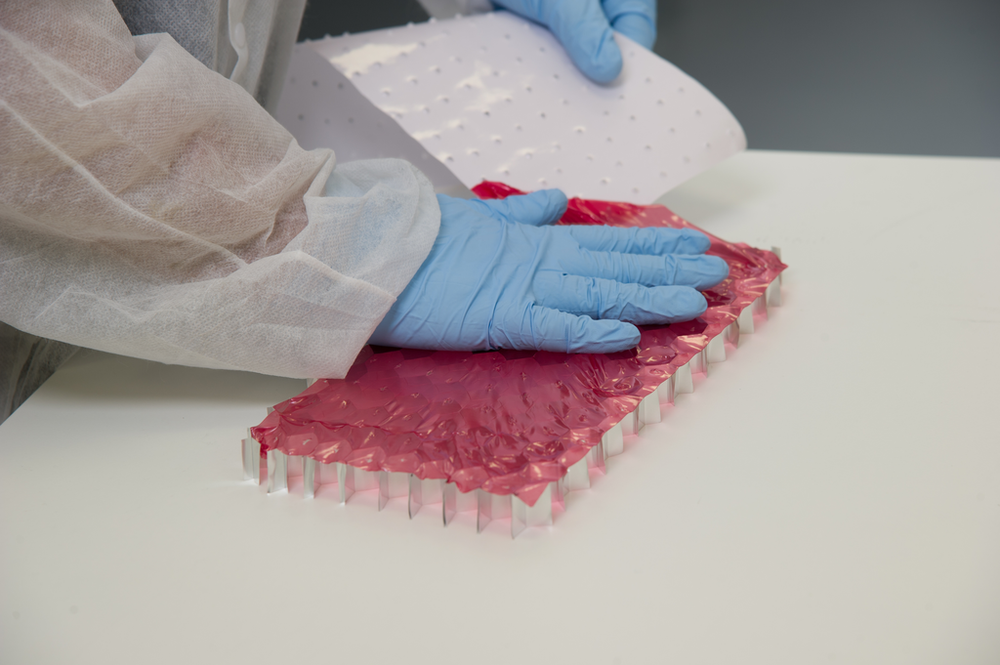

Our 3M™ Scotch-Weld™ Composite Surfacing Film AF 163-2 encompasses a family of thermosetting modified epoxy adhesives in film form that provides long-term durability and meets specific challenges for metal and composite solid panel and honeycomb sandwich construction, where high fracture toughness and peel strength is required.

Features

  • Designed for 250°F (120°C) cure
  • Excellent pre-bond humidity performance on composite substrates
  • High-fracture toughness and peel strength
  • Excellent shop handling characteristics
  • Unsupported version available for reticulation
  • Adhesive can be cured from 180°F (80°C) up to 300°F (150°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Cure Conditions (Fahrenheit)270.0
Country of OriginUnited States
ApplicationComposite Surfacing; Lightning Strike Protection
Overall Width (Imperial)35.0
Overall Width (Metric)1.0
Overall Width (Imperial) UOMin
Product ColorRed
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-67.0
Nominal Weight (Imperial)0.045
Minimum Operating Temperature (Celsius)-55.0
Overall Width (Metric) UOMm
Overall Length (Metric) UOMm
Overall Length (Imperial)50.0
Maximum Operating Temperature (Celsius)121.0
Overall Length (Imperial) UOMyd
Curing Temperature (Celsius) UOMDegree
Product FormRoll
Curing Temperature (Fahrenheit) UOMDegree
Product UsageAircraft Components; Aircraft Engine Components; Composite Materials; Helicopter Components
Minimum Cure Conditions (Fahrenheit)225.0
Overall Length (Metric)45.7
Maximum Operating Temperature (Fahrenheit)250.0
Adhesive TypeEpoxy
