3M Products & Supplies

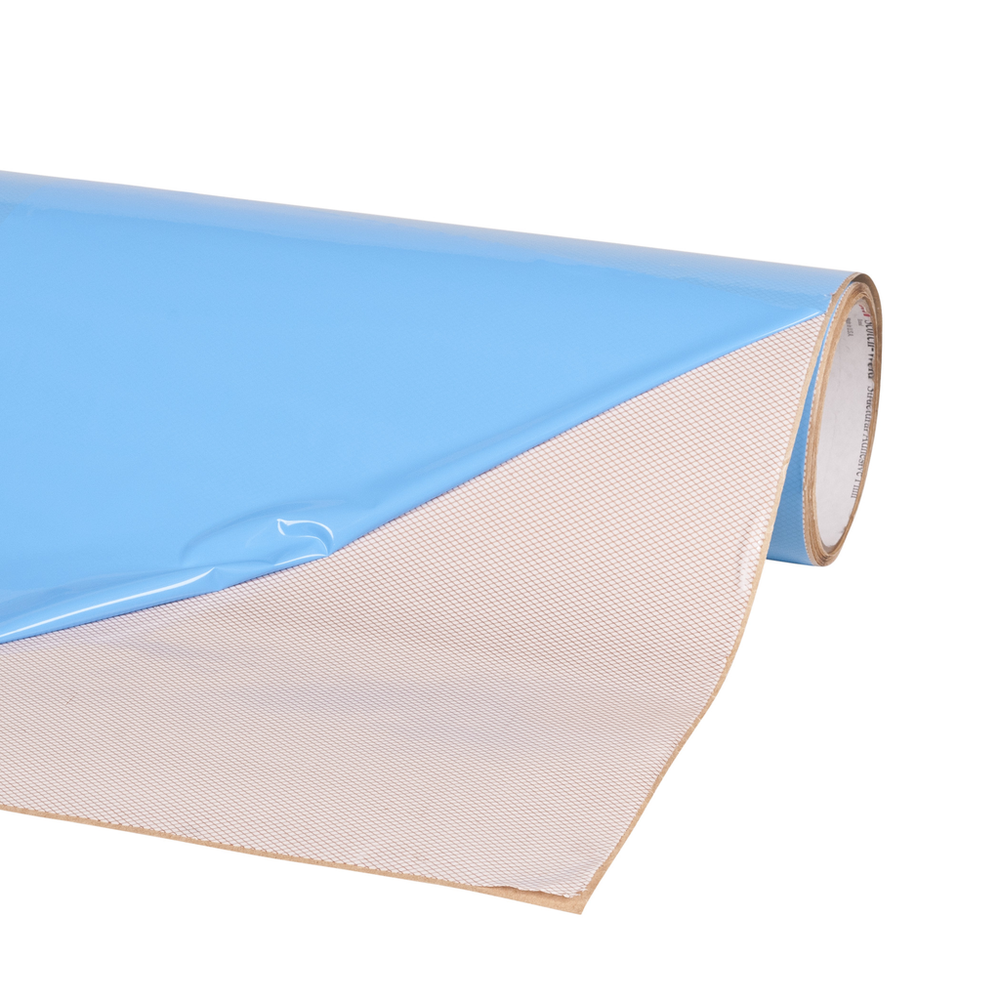

3M™ Scotch-Weld™ Composite Surfacing Film AF 325M, Blue, .035 wt, 36 in x 50 yd, 1 Roll/Case - 7100062397

SKU: 7100062397
MPN: 7100062397
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200233340
3M ID: 62338253099
$11,207.01 each
Hurry up! Current stock:

Product Description

3M™ Scotch-Weld™ Composite Surfacing Film AF 325 M, Blue is a thermosetting epoxy that we developed as an excellent product for surfacing composites, where its smooth, void-free surface with minimal pinholes reduces the need for subsequent surface fill or finishing and pre-paint prep.

Features

  • Co-cure compatible with most epoxy composite prepreg systems
  • Excellent for surfacing composite parts
  • Low density formulation aids in pre-paint surface preparation
  • Reduces the need for subsequent surface filling, fairing and sanding operations
  • Provides a smooth surface with minimal pinholes and other surface imperfections
  • Available in both white and blue to provide color contrast to underlying composite prepreg
Spec Sheet



Downloads

Specifications

Shelf Life730
Overall Length (Metric) UOMm
Product ColorBlue
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-55.0
Product FormRoll
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)0.9
Overall Width (Imperial)36.0
Maximum Cure Conditions (Celsius)177.0
ApplicationComposite Surfacing
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product UsageAircraft Components; Aircraft Engine Components; Composite Materials; Helicopter Components
Overall Length (Imperial)50.0
Maximum Cure Conditions (Fahrenheit)350.0
Overall Length (Metric)45.7
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Cure Conditions (Fahrenheit)250.0
Overall Width (Imperial) UOMin
Nominal Weight (Imperial)0.035
Country of OriginUnited States
Maximum Operating Temperature (Celsius)149.0
Adhesive TypeEpoxy
Minimum Cure Conditions (Celsius)121.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-67.0
