3M Products & Supplies

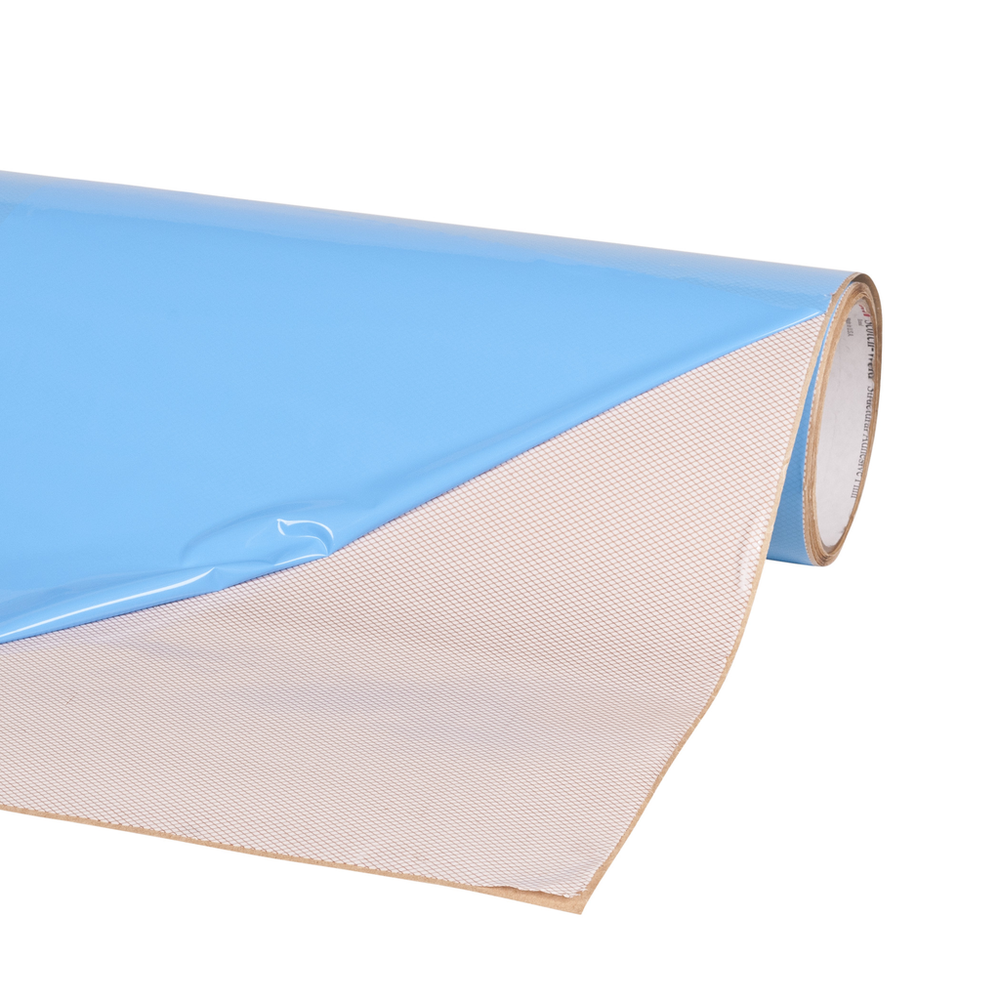

3M™ Scotch-Weld™ Composite Surfacing Film AF 325M, White, .030wt, 36 in x 50 yd, 1 Roll/Case - 7010399423

SKU: 7010399423
MPN: 7010399423
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011986029
3M ID: 87250003644
$11,207.01 each
Hurry up! Current stock:

Product Description

3M™ Scotch-Weld™ Composite Surfacing Film AF 325 M, White is a thermosetting epoxy that we developed as an excellent product for surfacing composites, where its smooth, void-free surface with minimal pinholes reduces the need for subsequent surface fill or finishing and pre-paint prep.

Features

  • Low density formulation aids in pre-paint surface preparation
  • Provides a smooth surface with minimal pinholes and other surface imperfections
  • Reduces the need for subsequent surface filling, fairing and sanding operations
  • Excellent for surfacing composite parts
  • Available in both white and blue to provide color contrast to underlying composite prepreg
  • Co-cure compatible with most epoxy composite prepreg systems
Spec Sheet



Downloads

Specifications

Shelf Life730
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)50.0
Overall Width (Imperial) UOMin
Overall Width (Metric)0.9
ApplicationComposite Surfacing
Overall Length (Imperial) UOMyd
Product FormRoll
Maximum Cure Conditions (Fahrenheit)350.0
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Celsius)-55.0
Maximum Cure Conditions (Celsius)177.0
Maximum Operating Temperature (Celsius)149.0
Minimum Cure Conditions (Fahrenheit)250.0
Product ColorWhite
Product UsageAircraft Components; Aircraft Engine Components; Composite Materials; Helicopter Components
Adhesive TypeEpoxy
Overall Width (Imperial)36.0
Overall Length (Metric)45.7
Minimum Operating Temperature (Fahrenheit)-67.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Cure Conditions (Celsius)121.0
Overall Length (Metric) UOMm
Nominal Weight (Imperial)0.03
Country of OriginUnited States
Overall Width (Metric) UOMm
