3M Products & Supplies

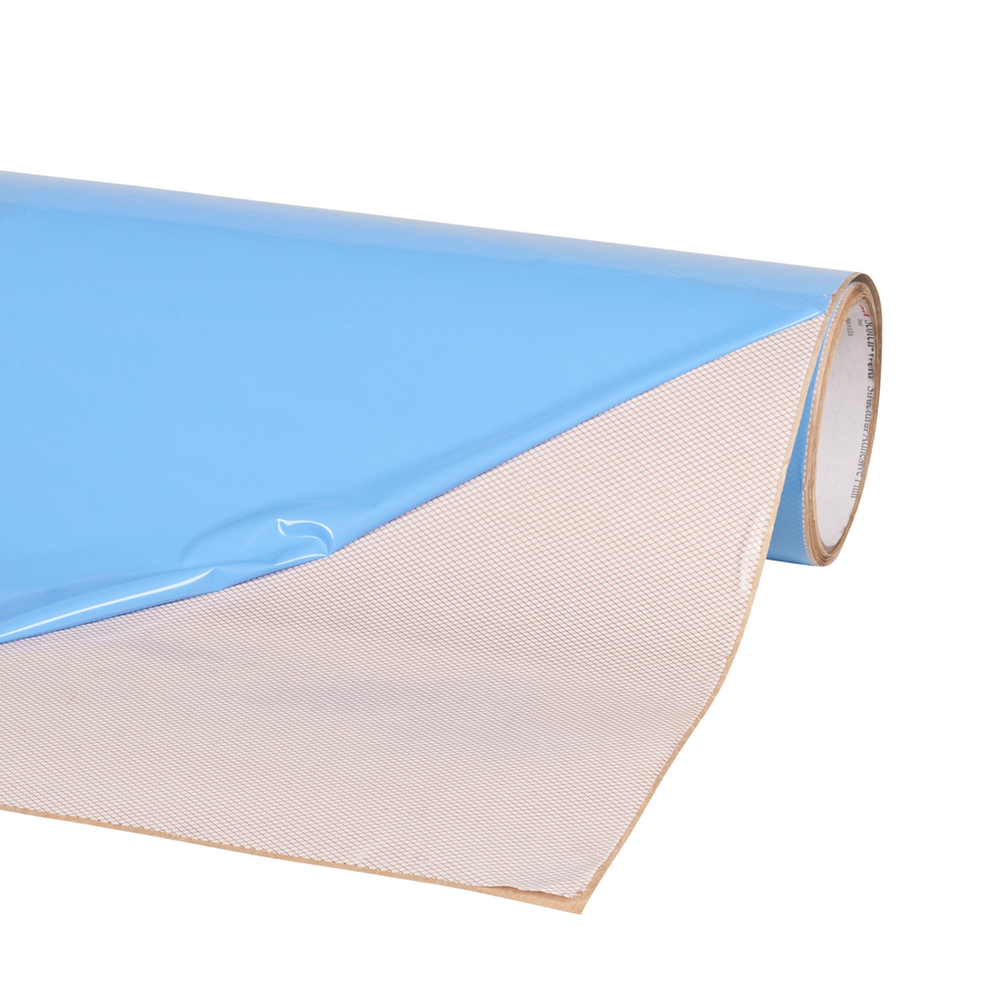

3M™ Scotch-Weld™ Composite Surfacing Film AF 325LS, White, .059 wt, 35 in x 50 yd, 1 Roll/Case - 7100064889

SKU: 7100064889
MPN: 7100064889
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011986012
3M ID: 87250003636
$34,079.05 each
Hurry up! Current stock:

Product Description

3M™ Scotch-Weld™ Composite Surfacing Film AF 325 LS White is a thermosetting epoxy that we developed as an excellent product for surfacing composites, where its smooth, void-free surface with minimal pinholes reduces the need for subsequent surface fill or finishing and pre-paint prep. It includes copper mesh for lightning strike protection.

Features

  • Co-cure compatible with most epoxy composite prepreg systems
  • Low density formulation aids in pre-paint surface preparation
  • Provides a smooth surface with minimal pinholes and other surface imperfections
  • Reduces the need for subsequent surface filling, fairing and sanding operations
  • Operational performance range from -67°F (-55°C) to 300°F (149°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Minimum Operating Temperature (Celsius)-55.0
Maximum Operating Temperature (Celsius)149.0
Product UsageAircraft Components; Aircraft Engine Components; Composite Materials; Helicopter Components
Adhesive TypeEpoxy
Overall Length (Metric)45.7
Product FormRoll
Product ColorWhite
Nominal Weight (Imperial)0.059
Country of OriginUnited States
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial)50.0
Minimum Cure Conditions (Fahrenheit)250.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Cure Conditions (Celsius)121.0
Overall Width (Metric) UOMm
Maximum Cure Conditions (Fahrenheit)350.0
Overall Length (Metric) UOMm
Overall Width (Metric)1.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)35.0
ApplicationLightning Strike Protection
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-67.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Cure Conditions (Celsius)177.0
