3M Products & Supplies

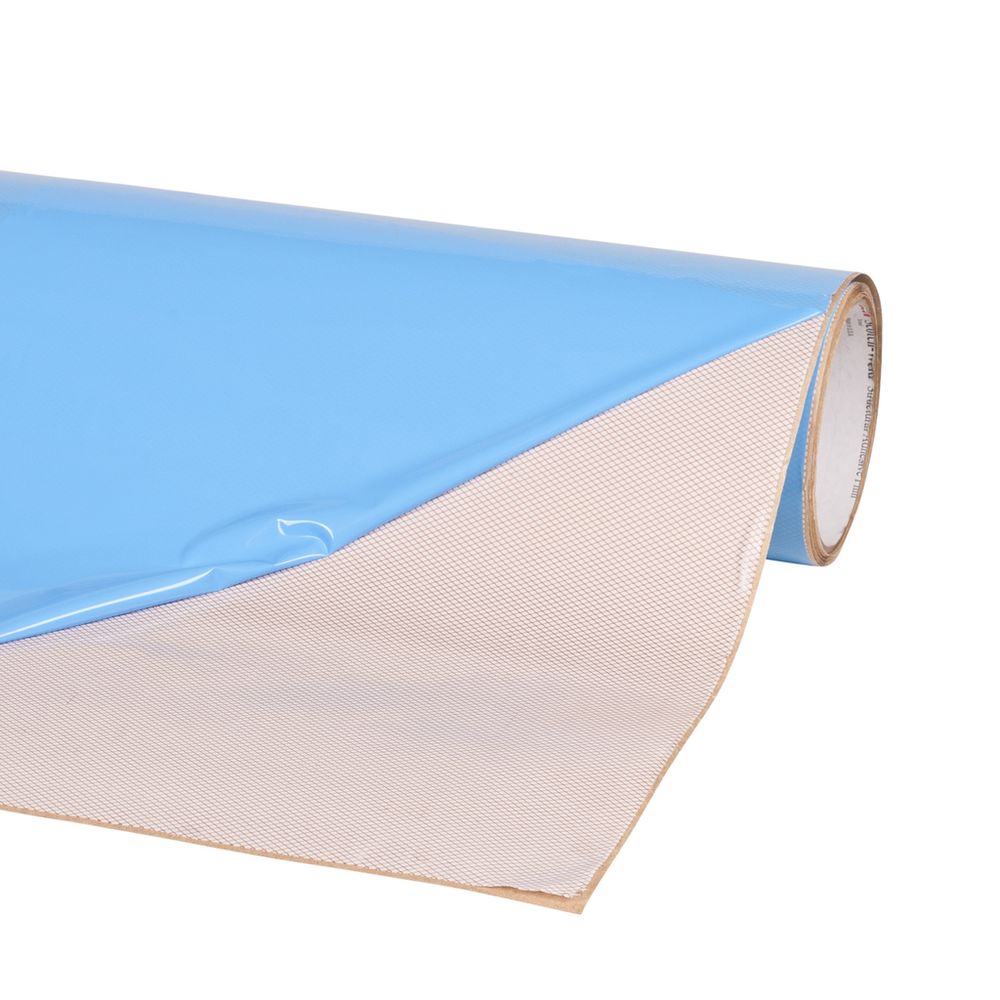

3M™ Scotch-Weld™ Composite Surfacing Film AF 325LS, Blue,, .064 wt, 35 in x 50 yd, 1 Roll/Case - 7000046369

Sold As: 2-Pack
SKU: 7000046369
MPN: 7000046369
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200233487
3M ID: 62262050099
$68,156.74 ($34078.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotch-Weld™ Composite Surfacing Film AF 325 LS Blue is a thermosetting epoxy that we developed as an excellent product for surfacing composites, where its smooth, void-free surface with minimal pinholes reduces the need for subsequent surface fill or finishing and pre-paint prep. It includes copper mesh for lightning strike protection.

Features

  • Available in both white and blue to provide color contrast to underlying composite prepreg
  • Co-cure compatible with most epoxy composite prepreg systems
  • Provides a smooth surface with minimal pinholes and other surface imperfections
  • Excellent for surfacing composite parts
  • Reduces the need for subsequent surface filling, fairing and sanding operations
  • Low density formulation aids in pre-paint surface preparation
Spec Sheet



Downloads

Specifications

Shelf Life730
Product ColorBlue
Maximum Cure Conditions (Fahrenheit)350.0
Maximum Cure Conditions (Celsius)177.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Cure Conditions (Celsius)121.0
Product UsageAircraft Components; Aircraft Engine Components; Composite Materials; Helicopter Components
Minimum Cure Conditions (Fahrenheit)250.0
Overall Length (Imperial) UOMyd
Product FormRoll
Minimum Operating Temperature (Celsius)-55.0
Adhesive TypeEpoxy
ApplicationLightning Strike Protection
Minimum Operating Temperature (Fahrenheit)-67.0
Overall Width (Metric) UOMm
Nominal Weight (Imperial)0.064
Maximum Operating Temperature (Celsius) UOMDegree
Country of OriginUnited States
Overall Length (Imperial)50.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)149.0
Overall Width (Imperial)35.0
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)45.7
Overall Width (Metric)1.0
