3M Products & Supplies

3M™ UV Activated Tape 30025, 584 mm x 66 m, 1 Roll/Case - 7100412615

SKU: 7100412615
MPN: 7100412615
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 06936177936320
3M ID: XP003859921
$913.42 each
Hurry up! Current stock:

Product Description

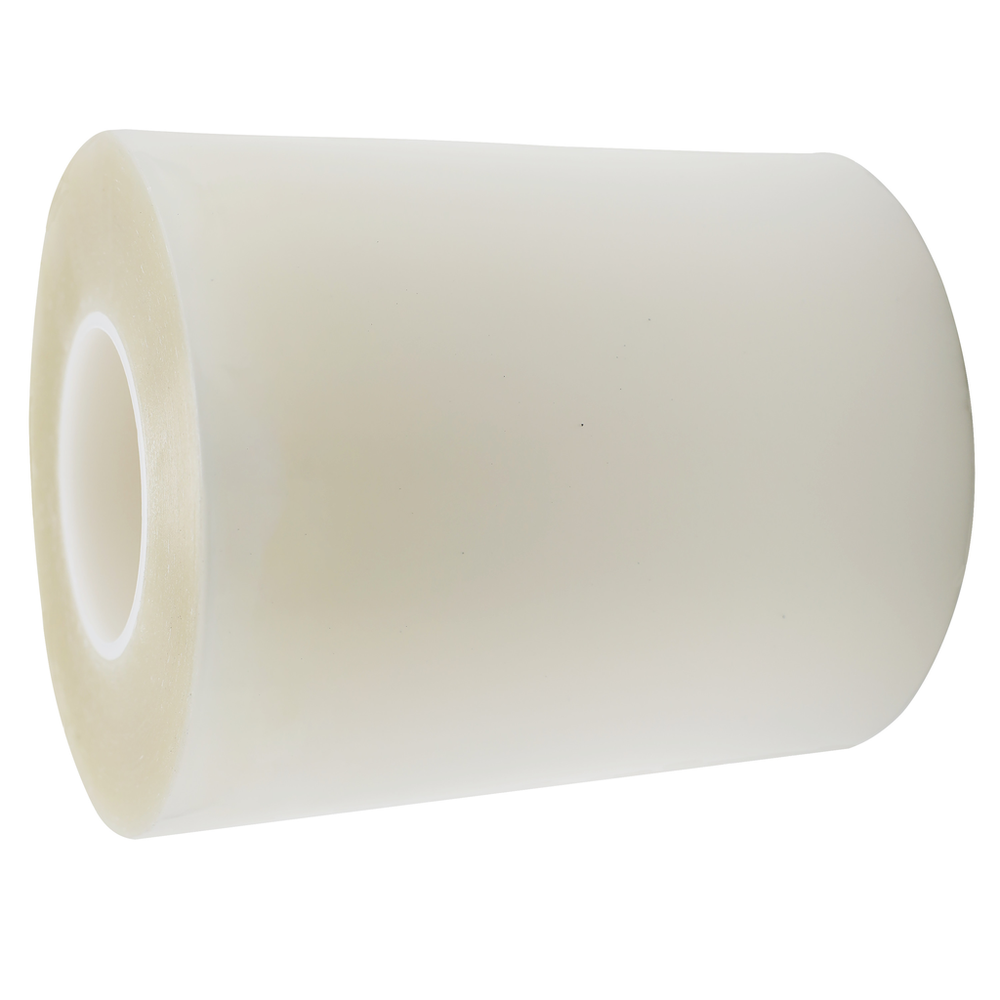

3M™ UV Activated Tape 30025 is a translucent, UV-curable, high-strength bonding tape that handles like a pressure-sensitive adhesive (PSA) before activation. Featuring a middle carrier film for easy converting and application before curing, this tape provides good impact resistance to meet industry drop test requirements and offers high bond strength while ensuring good removability. With the added benefits of initial tackiness and very low shrinkage, 3M™ UV Activated Tape 30025 is an ideal bonding option for opaque and transparent substrates, as well as electronic components like displays, frames, speakers, and wearables.

Features

  • FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for precision bonding
  • ENHANCED PERFORMANCE: Delivers good impact resistance and high bond strength with good reworkability
  • CURING TIME: Achieves immediate green strength and full bond strength at room temperature within 24 hours following UV activation
  • VARIOUS SUBSTRATES: Bonds opaque and transparent substrates, creating excellent bond strength on most medium and high surface energy materials
  • MIDDLE CARRIER FILM: Features a middle carrier film for easy converting and application before curing
  • BONDING, REIMAGINED: Offers easier application compared to liquid adhesives while activating with light, rather than heat
Spec Sheet



Downloads

Specifications

Shelf Life730
ApplicationBonding
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)50.0
Maximum Operating Temperature (Fahrenheit)140.0
Shear Strength UOMpsi
Maximum Cure Conditions (Celsius)45.0
Product UsageAppliances; Displays; Electronic Components; Electronic Enclosures
Shear Strength750.0
Adhesive TypeAcrylic Epoxy Blend
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)66.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)60.0
Density1.2
Curing Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)72.178
Maximum Cure Conditions (Fahrenheit)113.0
Nominal Adhesive Thickness (Metric)250.0
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Product ColorTranslucent
Minimum Operating Temperature (Celsius) UOMDegree
Nominal Adhesive Thickness (Imperial)10.0
Country of OriginChina
IndustriesElectronics
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)10.0
Curing Temperature (Celsius) UOMDegree
