3M Products & Supplies

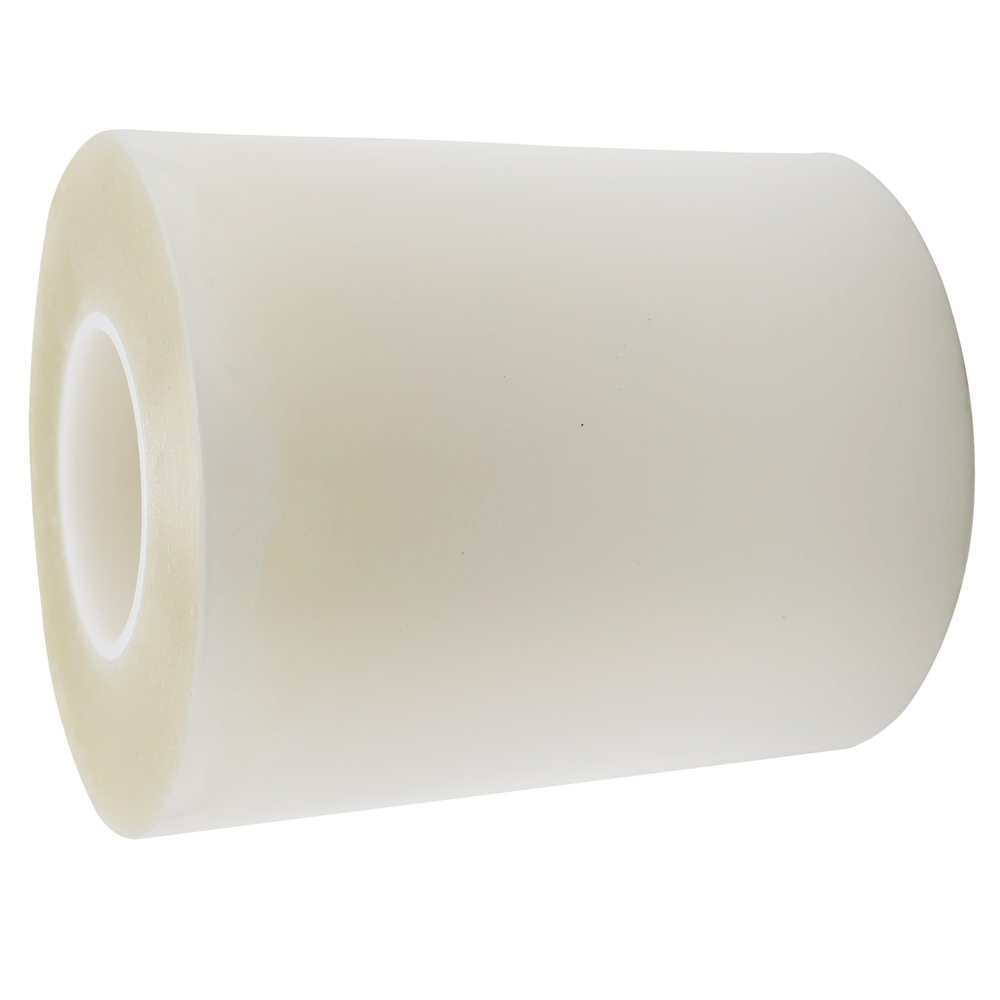

3M™ UV Activated Tape 30030, 584 mm x 66 m, 1 Roll/Case - 7100412439

SKU: 7100412439
MPN: 7100412439
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 06936177936146
3M ID: XP003859392
$976.41 each
Hurry up! Current stock:

Product Description

3M™ UV Activated Tape 30030 is a translucent, UV-curable, high-strength bonding tape that handles like a pressure-sensitive adhesive (PSA) before activation. Featuring a middle carrier film for easy converting and application before curing, this tape provides good impact resistance to meet industry drop test requirements and offers high bond strength while ensuring good removability. With the added benefits of initial tackiness and very low shrinkage, 3M™ UV Activated Tape 30030 is an ideal bonding option for opaque and transparent substrates, as well as electronic components like displays, frames, speakers, and wearables.

Features

  • VARIOUS SUBSTRATES: Bonds opaque and transparent substrates, creating excellent bond strength on most medium and high surface energy materials
  • CURING TIME: Achieves immediate green strength and full bond strength at room temperature within 24 hours following UV activation
  • MIDDLE CARRIER FILM: Features a middle carrier film for easy converting and application before curing
  • ENHANCED PERFORMANCE: Delivers good impact resistance and high bond strength with good reworkability
  • FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for precision bonding
  • BONDING, REIMAGINED: Offers easier application compared to liquid adhesives while activating with light, rather than heat
Spec Sheet



Downloads

Specifications

Shelf Life730
Maximum Cure Conditions (Celsius)45.0
Product UsageAppliances; Displays; Electronic Components; Electronic Enclosures
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Curing Temperature (Celsius) UOMDegree
Curing Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)50.0
Nominal Adhesive Thickness (Metric)300.0
ApplicationBonding
Shear Strength862.0
Maximum Operating Temperature (Celsius)60.0
Overall Length (Metric)66.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Product ColorTranslucent
Density1.2
Shear Strength UOMpsi
Minimum Operating Temperature (Celsius)10.0
Adhesive TypeAcrylic Epoxy Blend
Overall Length (Imperial)72.178
IndustriesElectronics
Maximum Cure Conditions (Fahrenheit)113.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Country of OriginChina
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)140.0
Overall Length (Imperial) UOMyd
Nominal Adhesive Thickness (Imperial)12.0
