3M Products & Supplies

3M™ UV Activated Tape 30035, 584 mm x 66 m, 1 Roll/Case - 7100412704

SKU: 7100412704
MPN: 7100412704
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 06936177936153
3M ID: XP003859418
$1,039.41 each
Hurry up! Current stock:

Product Description

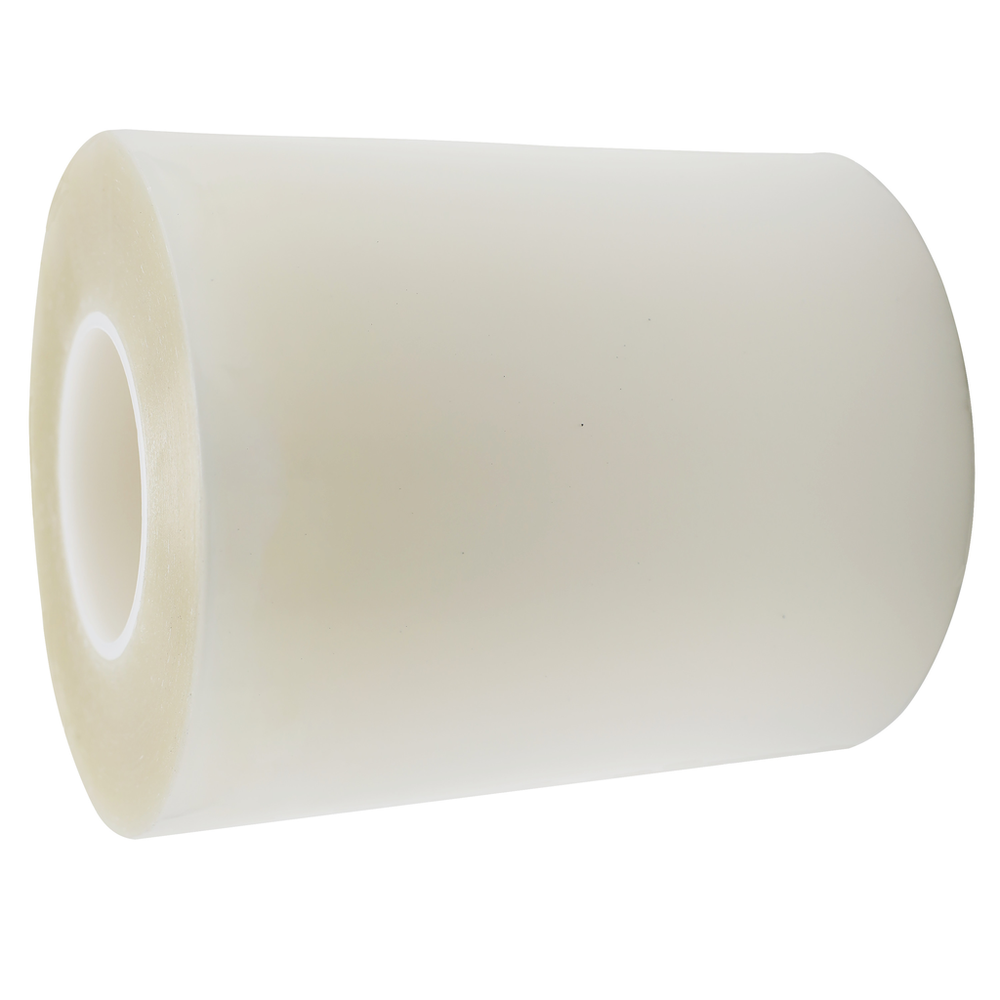

3M™ UV Activated Tape 30035 is a translucent, UV-curable, high-strength bonding tape that handles like a pressure-sensitive adhesive (PSA) before activation. Featuring a middle carrier film for easy converting and application before curing, this tape provides good impact resistance to meet industry drop test requirements and offers high bond strength while ensuring good removability. With the added benefits of initial tackiness and very low shrinkage, 3M™ UV Activated Tape 30035 is an ideal bonding option for opaque and transparent substrates, as well as electronic components like displays, frames, speakers, and wearables.

Features

  • VARIOUS SUBSTRATES: Bonds opaque and transparent substrates, creating excellent bond strength on most medium and high surface energy materials
  • BONDING, REIMAGINED: Offers easier application compared to liquid adhesives while activating with light, rather than heat
  • MIDDLE CARRIER FILM: Features a middle carrier film for easy converting and application before curing
  • FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for precision bonding
  • CURING TIME: Achieves immediate green strength and full bond strength at room temperature within 24 hours following UV activation
  • ENHANCED PERFORMANCE: Delivers good impact resistance and high bond strength with good reworkability
Spec Sheet



Downloads

Specifications

Shelf Life730
Maximum Cure Conditions (Celsius)45.0
Country of OriginChina
Maximum Operating Temperature (Celsius)60.0
Maximum Operating Temperature (Celsius) UOMDegree
Nominal Adhesive Thickness (Metric)350.0
Overall Length (Metric) UOMm
Shear Strength UOMpsi
Minimum Operating Temperature (Fahrenheit)50.0
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit)140.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)72.178
IndustriesElectronics
Minimum Operating Temperature (Celsius)10.0
Adhesive TypeAcrylic Epoxy Blend
Product ColorTranslucent
Overall Length (Metric)66.0
Curing Temperature (Celsius) UOMDegree
Maximum Cure Conditions (Fahrenheit)113.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Curing Temperature (Fahrenheit) UOMDegree
ApplicationBonding
Overall Length (Imperial) UOMyd
Density1.2
Shear Strength831.1
Product UsageAppliances; Displays; Electronic Components; Electronic Enclosures
Minimum Operating Temperature (Celsius) UOMDegree
Nominal Adhesive Thickness (Imperial)14.0
