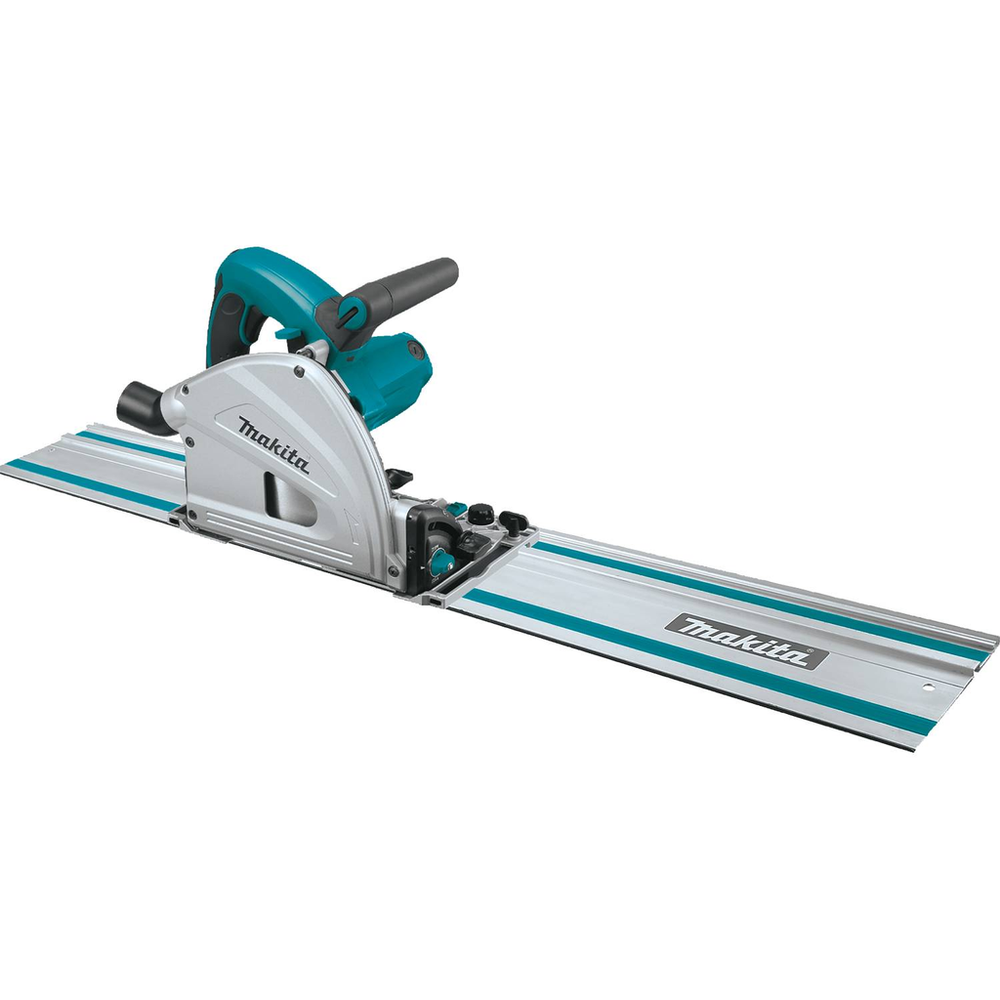

The Makita 6-1/2" Plunge Cut Circular Saw and 55" Guide Rail (model SP6000J1) work together to produce accurate cuts with minimal tear-out. The saw combines a powerful 12 AMP motor and a large cutting capacity with magnesium components for less weight and electronic speed control to maintain constant speed under load for smooth cutting and a splinter-free mirror finish. The SP6000J1 is a more portable option to a table saw for select applications, and it is ideal for use on the jobsite or in a workshop. Precision Settings and Features for Quality Cuts The SP6000J1 saw has a bevel capability of -1° to 48° with positive stops at 22.5° and 45°. The saw delivers precise cutting, as the position of the blade enters the material on the same cutting line whether cutting straight or bevel. In addition, the saw has close-to-wall cutting (11/16-inch) for expanded cutting applications. The built-in depth stop allows a preliminary cut of 1/16-inch to be performed before the entire material is cut through for clean and splinter-free cutting. 12 AMP Direct-Drive Power for Smooth Cutting The SP6000J1 has a powerful 12 AMP motor with soft start for smooth start-ups, and Electronic Speed Control to maintain a constant speed under load for smooth cutting. The variable speed dial control (2,000 – 5,200 RPM) allows the user to set the speed for optimum performance in a variety of materials. The built-in torque limiter helps prevent motor burnout, with an electric brake for added productivity. Precision Cuts and Ease of Use The saw includes a range of convenient features, including a large top handle, an electric brake for more productivity, as well as a lock-lever that attaches the saw to the rail system so the saw stays on the anodized aluminum rail when positioned for a bevel cut. The smooth and convenient plunge release lever is designed for operator comfort, and the depth adjustment with large scale is easy to set. Best in Class for a Range of Applications The SP6000J1 is engineered for cutting sheet material, finish work, trim work, and remodeling. It is ideal for a broad range of trades, including cabinet installers, cabinet manufacturers, finish carpenters, stair installers, flooring installers, woodworkers, and general contractors seeking a best-in-class 6-1/2" Plunge Circular Saw.
Features
- Easy-to-set depth adjustment with large scale
- Large 1-7/16" rear dust port directs material away from the operator and easily connects to a vacuum system
- Bevel capability (-1 to 48°) with positive stops at 22.5° and 45°
- Rubberized handles for added comfort
- Close to the wall cutting (11/16") for expanded cutting applications

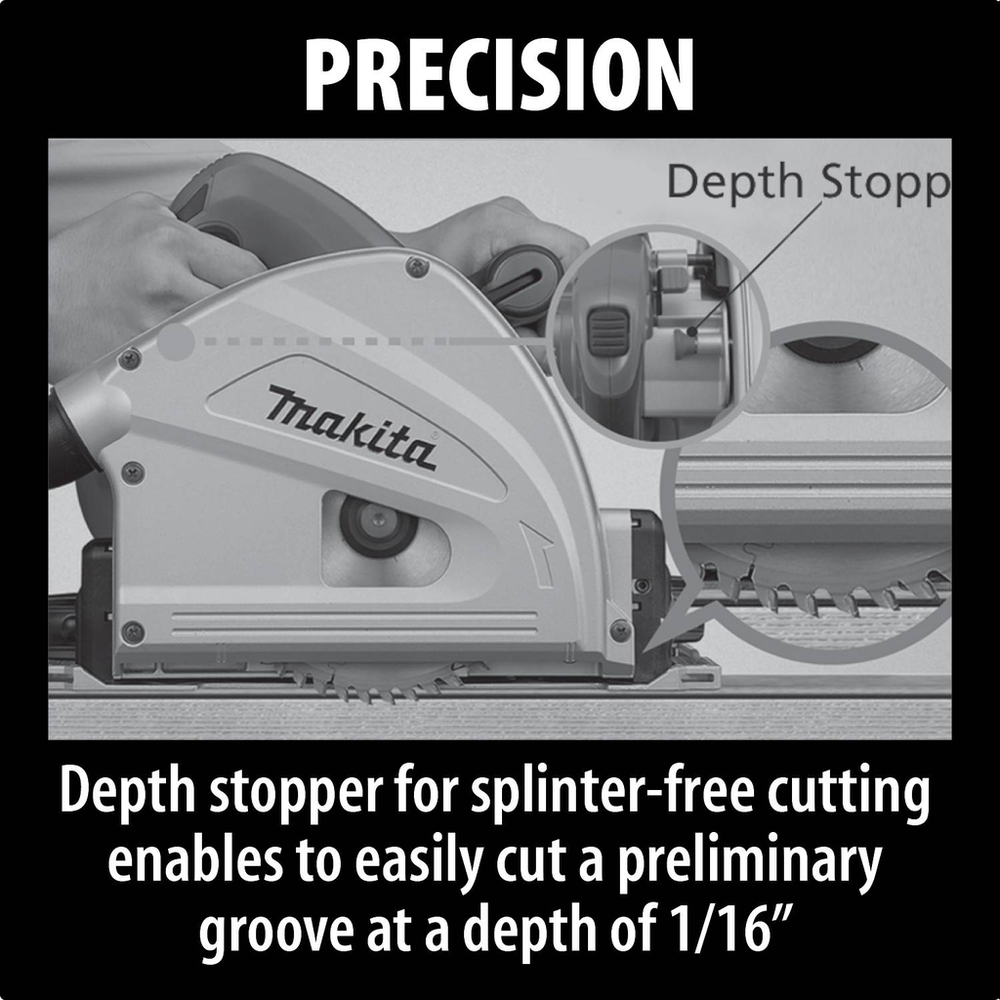

- Built-in depth stop allows a preliminary first cut of 2 to 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
- Precise straight and 45° bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail
- Saw base is attachable to other guide rail systems in the market
- Includes a premium 48 tooth carbide tipped blade
- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- Electronic speed control maintains constant speed under load for smooth cutting
- Soft start feature for smooth start-ups
- Built-in current limiter helps prevent motor burnout
- 12 AMP motor with variable speed control dial (2,000 - 5,200 RPM) for optimum performance in a variety of materials
- 1-1/2" OD dust port directs material away from the operator and connects to a vacuum system
- Large cutting capacity (2-3/16" at 90° and 1-9/16" at 45°)
- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
- Smooth and convenient plunge release lever for operator comfort
- On-board hex wrench for fast and easy blade changes
- 55" Guide Rail interacts with the saw base to provide smooth, perfect, dead-on straight or bevel cutting
- Magnesium components deliver a well balanced and lightweight saw at only 9.7 lbs.
- Ideal for cutting large wood panels and other wood materials in confined areas
