Makita

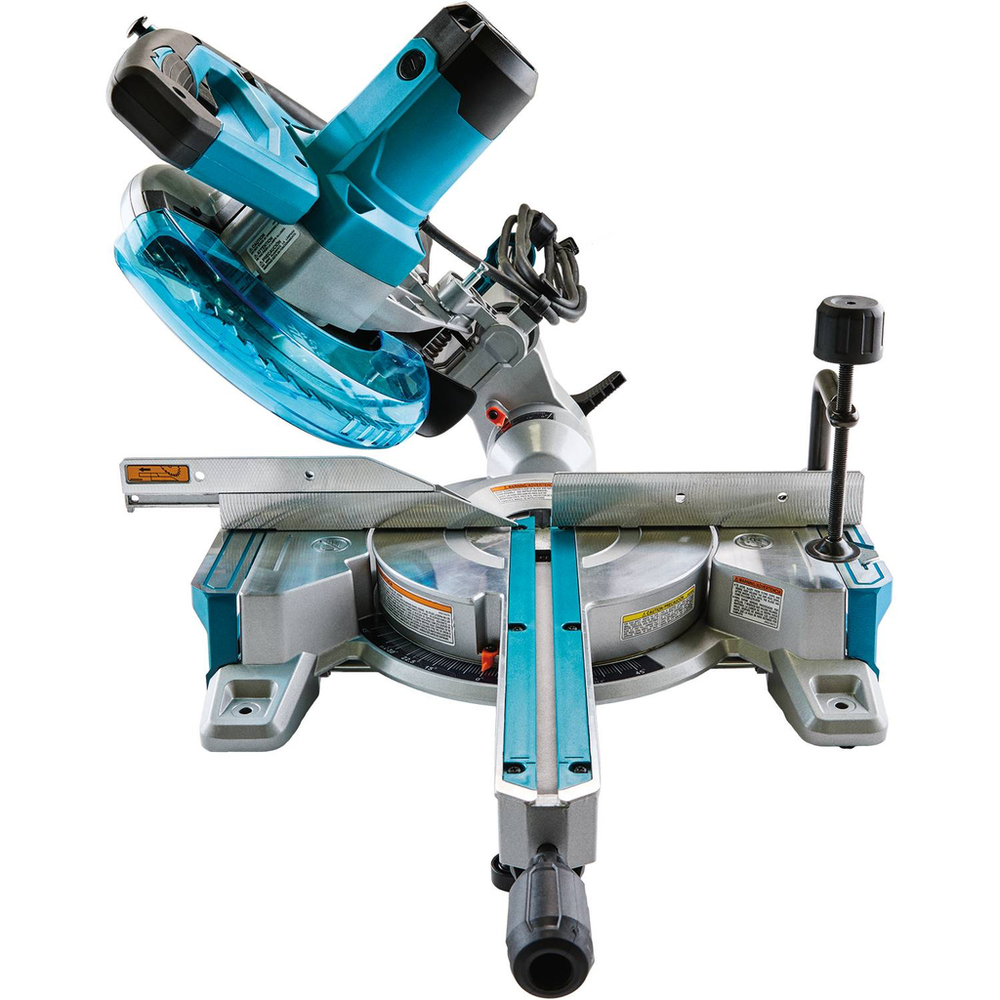

8-1/2” Slide Compound Miter Saw - LS0816F

Name: 8-1/2” Slide Compound Miter Saw - LS0816F
Brand: Makita
SKU: LS0816F
Price: 544 USD
Availability: InStock

SKU: LS0816F

MPN: LS0816F

Stock Item: Typical lead time for Makita products is 1-2 weeks.

$544.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 8-1/2” Slide Compound Miter Saw (LS0816F) features a compact design with low weight of only 30.6 lbs. for job site portability. It is ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction, and more. The powerful 10.5 AMP direct drive motor requires less maintenance and delivers 5,000 RPM. The 8-1/2” Slide Compound Miter Saw can perform miters including 0°- 47° left and 0°- 47° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 47° (left and right). It can also perform cuts up to 12” at 90° and 8-1/2” at 45°. The LS0816F features a linear ball bearing system that is engineered to deliver "dead-on" accurate cuts. It also features dual rear handle bevel lock that is easily accessible and adjusts 0°- 47° (left) and 0°- 2° (right) with positive stops at 0° and 45° (left). It features a large precision machined aluminum base that supports the material for more efficient cutting, an electric brake for maximum productivity and features a see-through blade guard system for greater visibility of the line of cut. Convenience features include a soft start feature for smooth start-ups, a built-in L.E.D. light that illuminates the line of cut for increased accuracy, an exclusive 2-1/2" tall fence system for increased vertical cutting capacity, as well as an ergonomic rubberized D-handle design for better fit and added comfort. It includes extension wings for supporting long work pieces.

Features

Electric brake for maximum productivity
Compact and lightweight (30.6 lbs.) for job site portability
VERSATILITY - Built-in L.E.D. light illuminates the line of cut for increased accuracy
Soft start feature for smooth start-ups
INCLUDES - 8-1/2" C.T. Blade 40T, Hex Wrench, Dust Bag, Vertical Vise
Dust port for attaching included dust bag; also connects to a Dust Extractor/Vacuum (sold separately) for more efficient dust collection
Dust Bag, LS0816F (JM00000535)

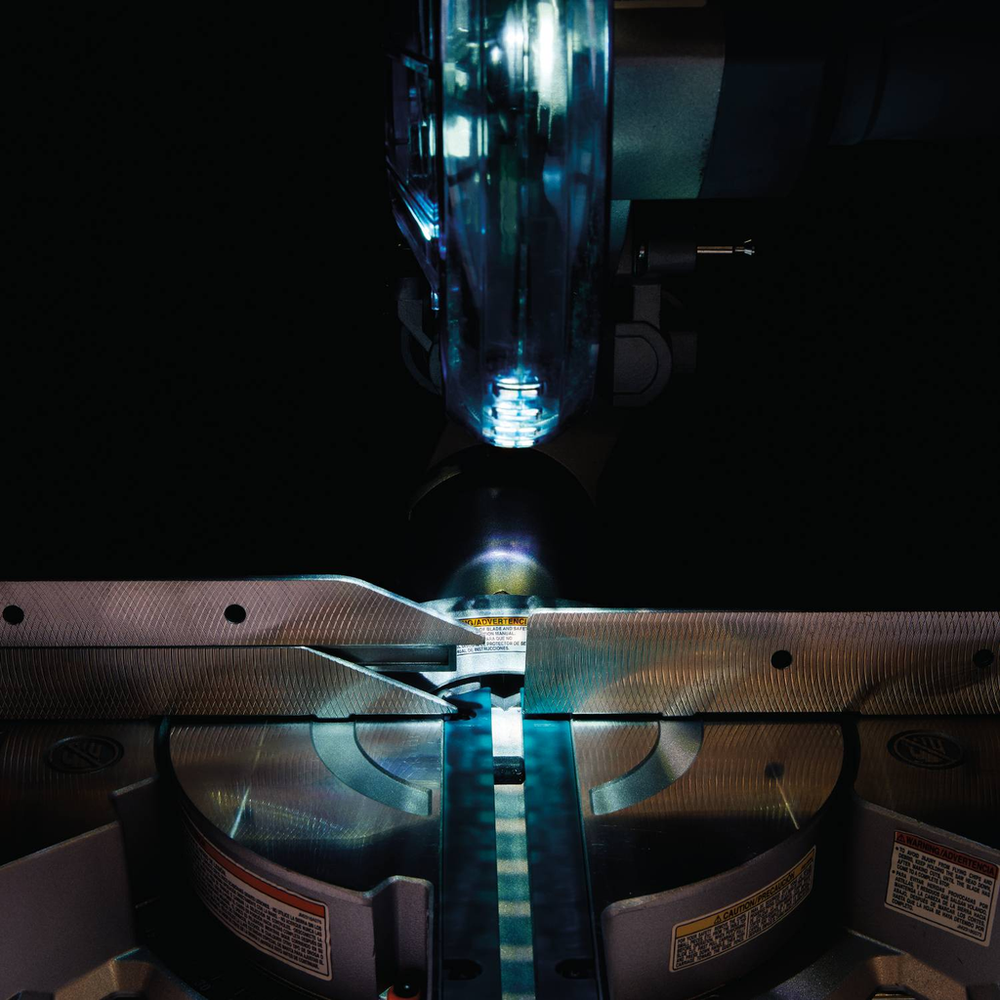

Built-in L.E.D. light illuminates the line of cut for increased accuracy
Includes extension wings for supporting long work pieces
See-through blade guard system for greater visibility of the line of cut
Large precision machined aluminum base supports material for more efficient cutting
Vertical Vise, LS0816F (JM00000432)
8-1/2" TCT Saw Blade
Dual rear handle bevel lock is easily accessible and adjusts 0°- 47° (left) and 0°- 2° (right) with positive stops at 0° and 45° (left)
Exclusive 2-1/2" tall fence system for increased vertical cutting capacity
Linear ball bearing system engineered to deliver "dead-on" accurate cuts
Cuts up to 12” at 90° and 8-1/2” at 45°
ACCURACY - Large precision machined aluminum base supports material for more efficient cutting
Powerful 10.5 AMP direct drive motor requires less maintenance and delivers 5,000 RPM
CAPACITY - Cuts up to 12” at 90° and 8-1/2” at 45°
Hex Wrench, 6mm
Ergonomic rubberized D-handle design for better fit and added comfort
Miters 0°- 47° left and 0°- 47° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 47° (left and right)
Ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction and more
PORTABILITY - Compact and lightweight design (30.6 lbs.) for job site portability

Prop 65

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Downloads

Parts Breakdown

Instruction Manual

Specifications

Net Weight	30.6 lbs.
Stand included	No
No Load Speed	5,000 RPM
Cord Length (ft)	6.6'
Power Type	Corded
Electric Brake	Yes
Dimensions (LxWxH)	27-3/4" x 18-3/4" x 20-1/2"
Soft start	Yes
LED light	Yes
Blade Diameter	8-1/2"
Bench & Stationary Tool Type	Slide miter saw
Shipping Weight	30.65 lbs.
AMPS	10.5
Arbor	5/8"
Country of Origin	China
Max. Cutting Capacity (miter 90°)	2-9/16" x 12"
Max. Cutting Capacity (at 45°)	8-1/2"
90° crosscut capacity	12"
Max. Cutting Capacity (90°)	12"
Max. Cutting Capacity (miter 45°, L/R)	2-9/16" x 8-1/2"
