3M Products & Supplies

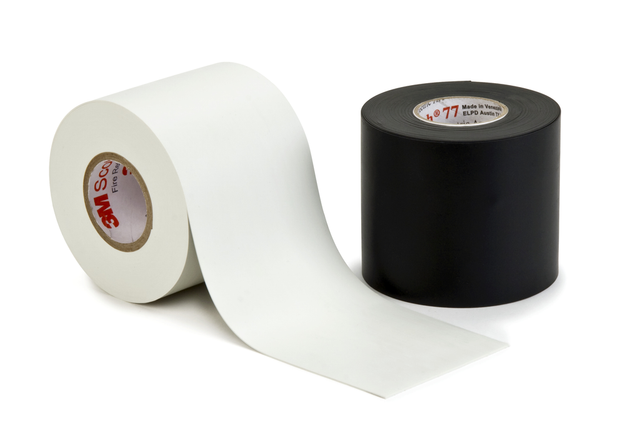

Scotch® Fire-Retardant Electric Arc Proofing Tape 77, 1-1/2 in x 20 ft, Black, 1 roll/carton, 10 rolls/Case - 7100004537

Sold As: 10-Pack
SKU: 7100004537
MPN: 7100004537
For an accurate lead time please contact us
UPC: 00051128603321
3M ID: 80611605975
5 Digit UPC: 60332
$149.99 ($15.00 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 77 is a 30 mil thick, premium grade, flame retardant, electric arc proofing tape. This tape is 600V rated and is suitable to protect most types of electrical cables when exposed to potential failures in an adjacent cable. It is designed with a flexible unsupported elastomer, which makes it easy to apply and easy to remove for cable inspection.

Features

  • Conformability offers virtually wrinkle-free wrapping with minimal effort
  • UL Listed and RoHS 2011/65/EU Compliant

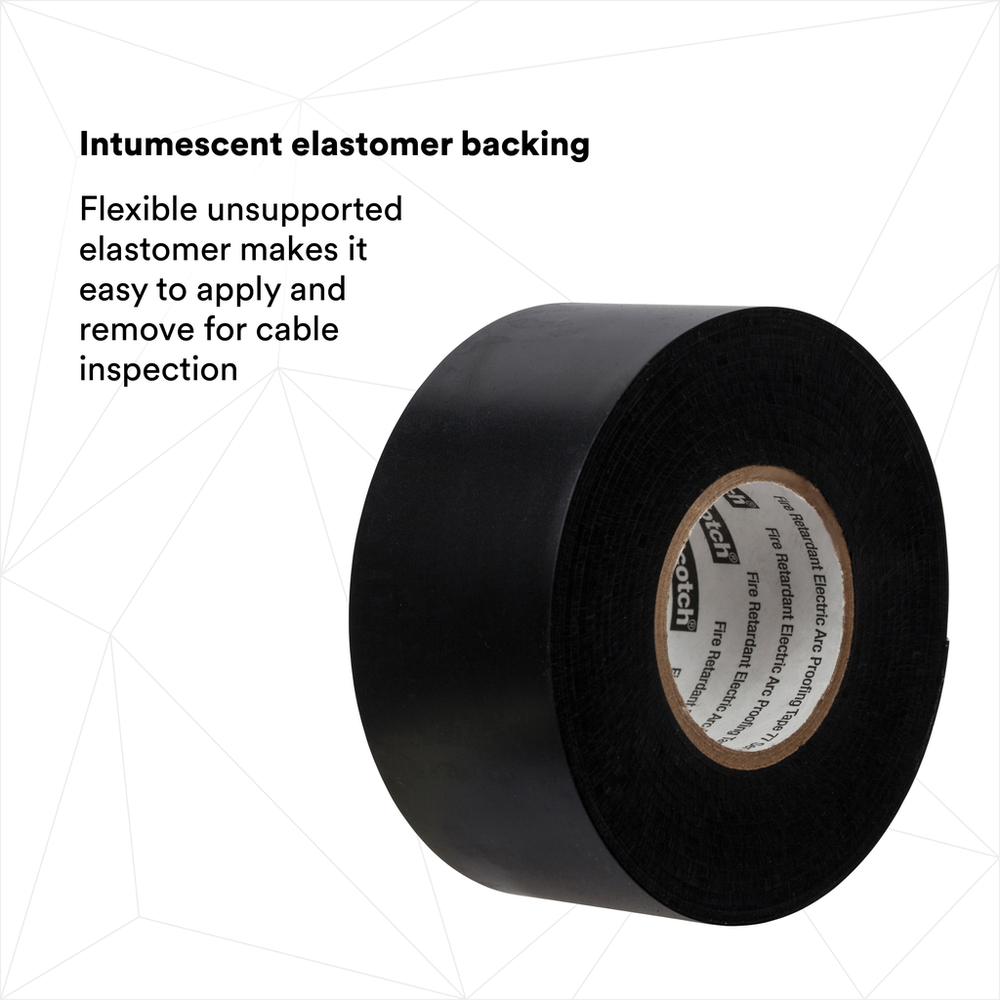

  • Intumescent elastomer backing
  • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Application/IndustryCommercial Construction; Industrial Construction; Maintenance and Repair Operations; Mining; Residential Construction; Solar; Utility; Wind Power
Product MarketsElectrical Construction
Overall Length (Imperial)20.0
Product ColorBlack
Minimum Operating Temperature (Celsius) UOMDegree
Dielectric Strength19.7
Adhesive TypeNon-adhesive
Overall Width (Metric)38.1
Overall Width (Imperial)1.5
Minimum Operating Temperature (Celsius)0.0
Overall Length (Imperial) UOMft
Total Tape Thickness without Liner (Metric)0.76
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationElectrical Maintenance; Insulation
Tensile Strength (Metric) UOMkPa
Backing (Carrier) MaterialIntumescent Elastomer
Overall Length (Metric) UOMm
Elongation at Break150
Rolls per Carton1.0
FeaturesSelf-Extinguishing; UV-resistant
Overall Width (Imperial) UOMin
Specifications MetConsolidated Edison Co. Test EO-5343-14
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)6.0
Tape GradeProfessional
Tensile Strength (Metric)55.0
Dielectric Strength UOMkV/mm
Shelf Life UOMYear
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.76
Total Tape Thickness without Liner (Imperial)30.0
Rolls per Case10.0
Total Tape Thickness without Liner (Metric) UOMmm
Voltage Rating600 V
