3M Products & Supplies

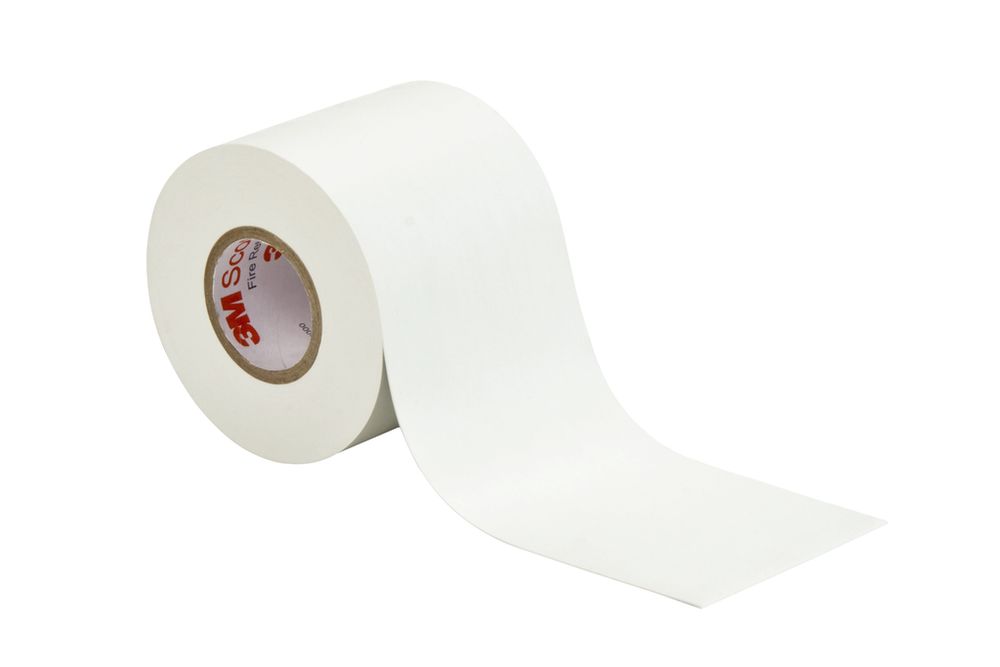

Scotch® Fire-Retardant Electric Arc Proofing Tape 77W, 1-1/2 in x 20 ft, White/Gray, 1 roll/carton, 10 rolls/Case - 7100080070

Sold As: 10-Pack
SKU: 7100080070
MPN: 7100080070
For an accurate lead time please contact us
UPC: 00051128603345
3M ID: 80611605991
5 Digit UPC: 60334
$149.99 ($15.00 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 77 is a 30 mil thick, premium grade, flame retardant, electric arc proofing tape. This tape is 600V rated and is suitable to protect most types of electrical cables when exposed to potential failures in an adjacent cable. It is designed with a flexible unsupported elastomer, which makes it easy to apply and easy to remove for cable inspection.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
  • Conformability offers virtually wrinkle-free wrapping with minimal effort
  • Intumescent elastomer backing
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)30.0
Product MarketsElectrical Construction
Overall Length (Metric)6.0
Adhesive TypeNon-adhesive
FeaturesSelf-Extinguishing; UV-resistant
Total Tape Thickness without Liner (Imperial) UOMmil
Rolls per Case10.0
Shelf Life UOMYear
Specifications MetConsolidated Edison Co. Test EO-5343-14
Application/IndustryCommercial Construction; Industrial Construction; Maintenance and Repair Operations; Mining; Residential Construction; Solar; Utility; Wind Power
Tensile Strength (Metric) UOMkPa
Overall Width (Metric)38.1
Total Tape Thickness without Liner (Metric)0.76
Overall Length (Imperial) UOMft
Product ColorBlack
Backing (Carrier) MaterialIntumescent Elastomer
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
ApplicationElectrical Maintenance; Insulation
Overall Width (Metric) UOMmm
Elongation at Break150
Tape GradeProfessional
Overall Length (Imperial)20.0
Overall Width (Imperial)1.5
Overall Width (Imperial) UOMin
Tensile Strength (Metric)55.0
Rolls per Carton1.0
Dielectric Strength UOMkV/mm
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Voltage Rating600 V
Backing (Carrier) Thickness (Metric) UOMmm
Dielectric Strength19.7
Backing (Carrier) Thickness (Metric)0.76
