3M Products & Supplies

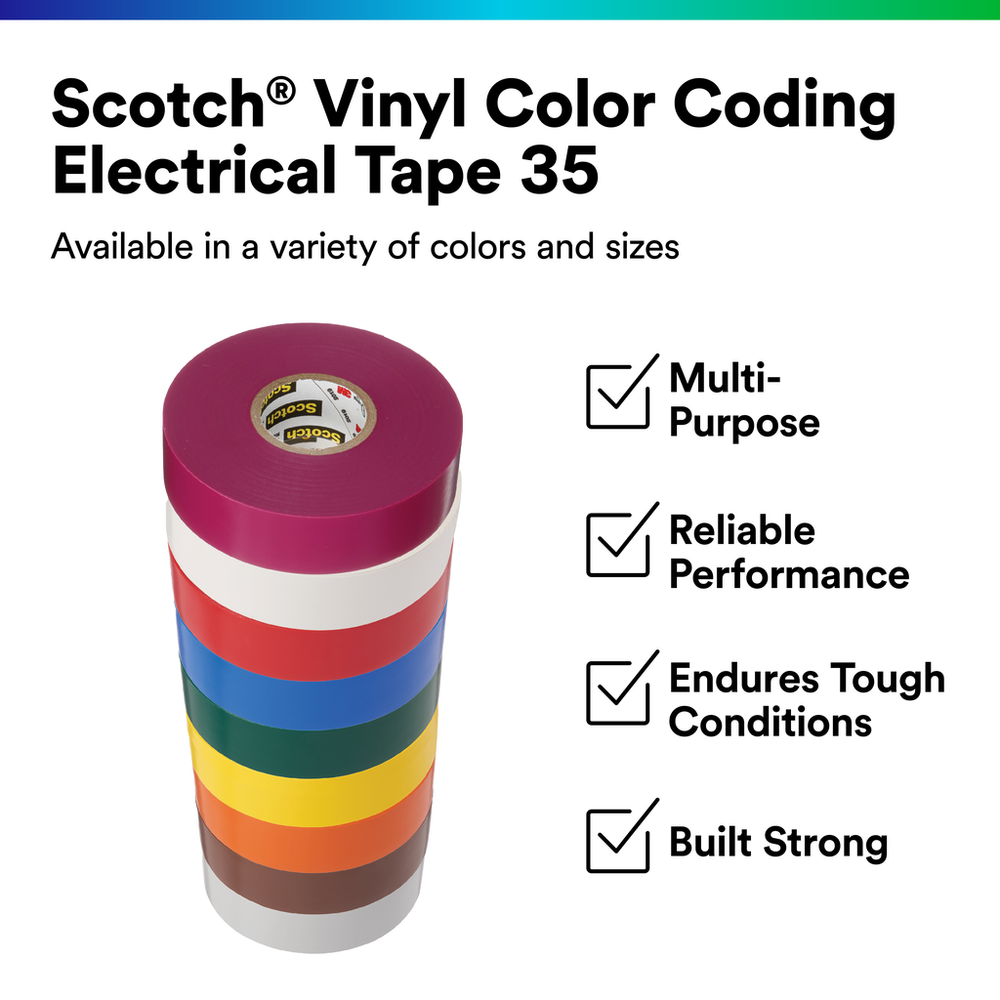

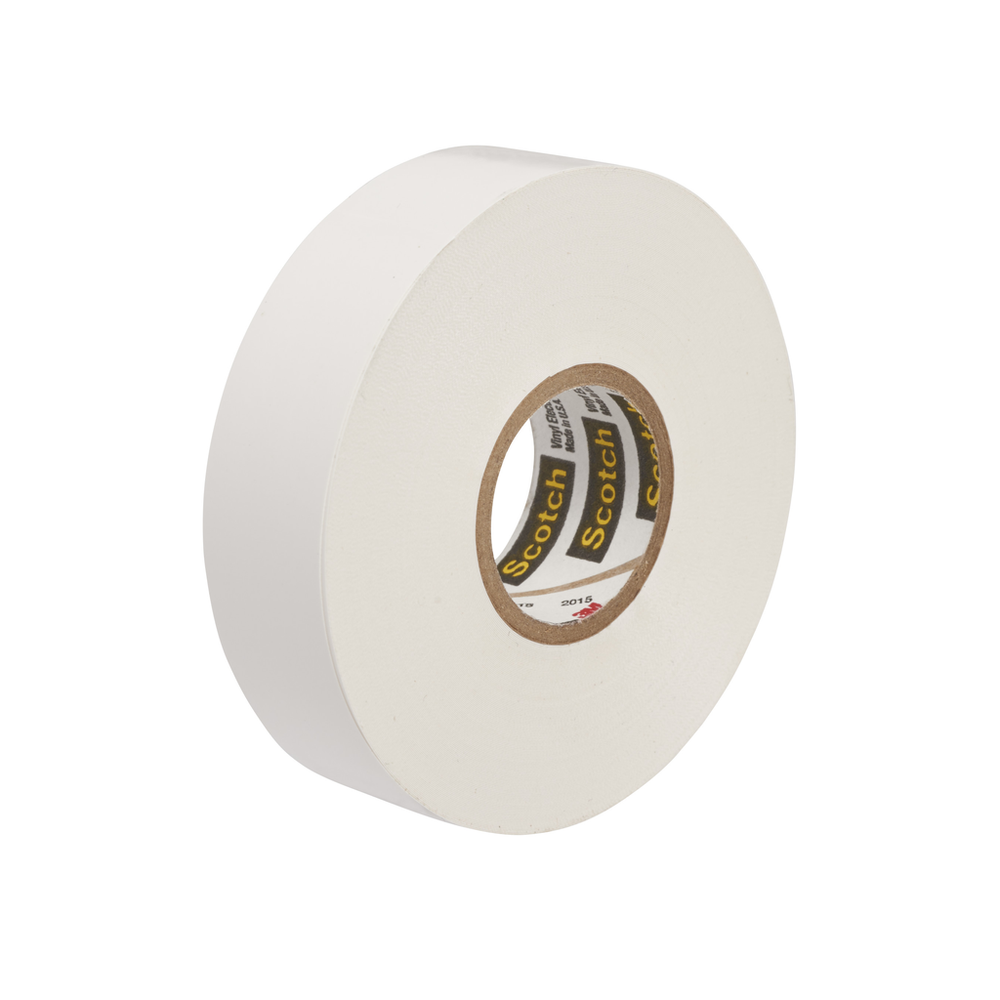

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, White, 10 rolls/carton, 100 rolls/Case - 7000058436

Sold As: 10-Pack
SKU: 7000058436
MPN: 7000058436
For an accurate lead time please contact us
UPC: 00054007102328
3M ID: 80610833974
5 Digit UPC: 10232
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

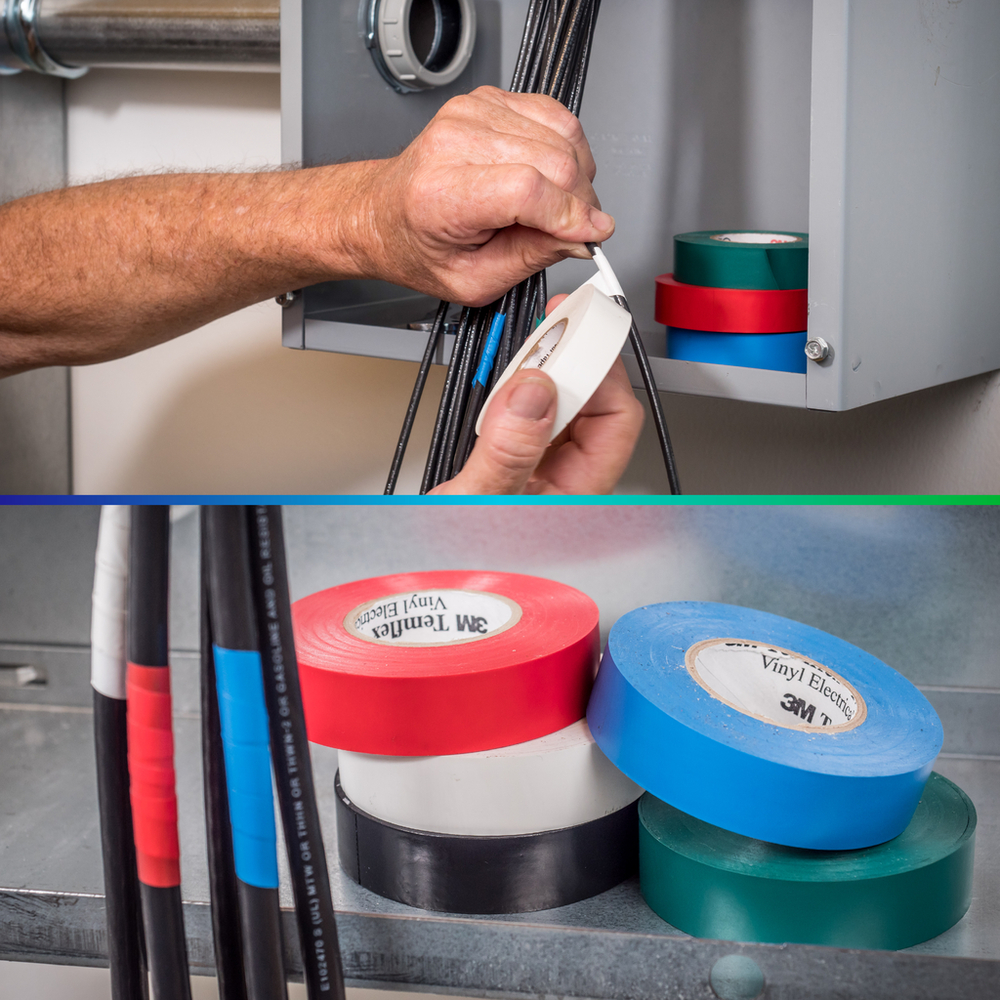

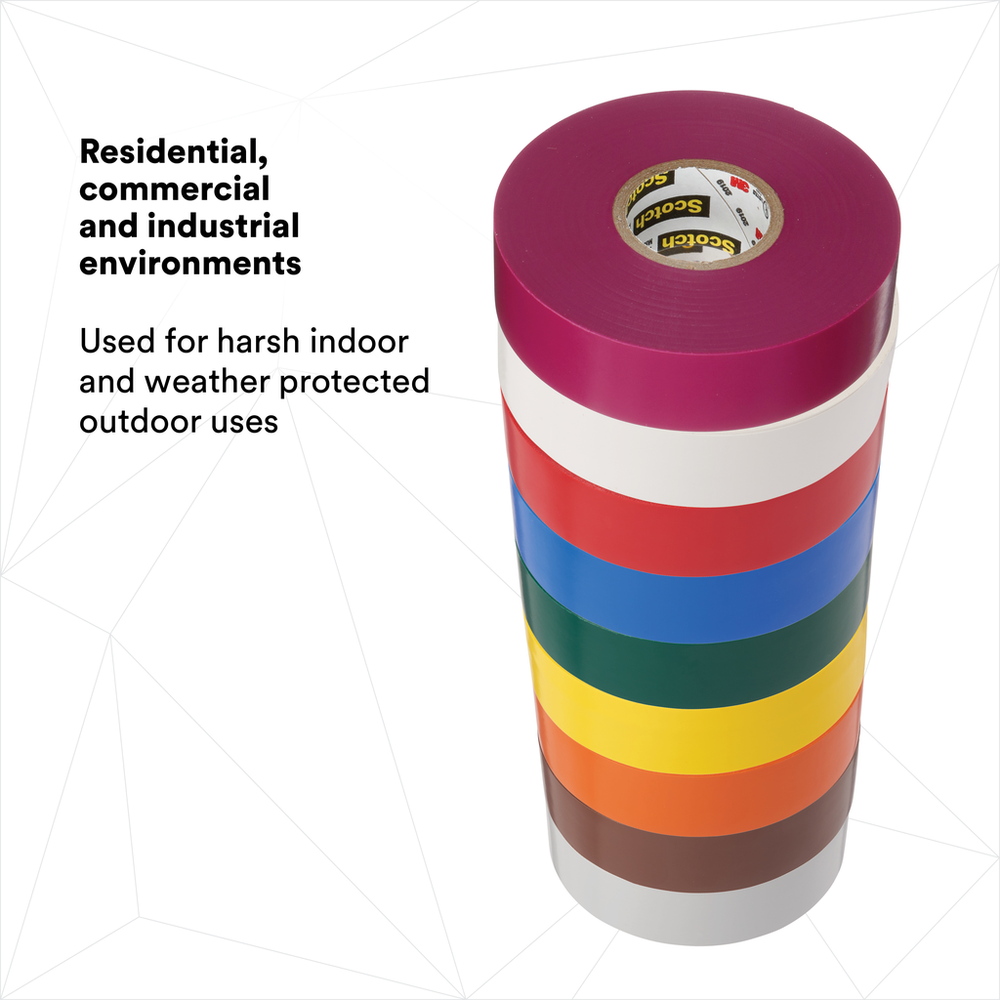

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

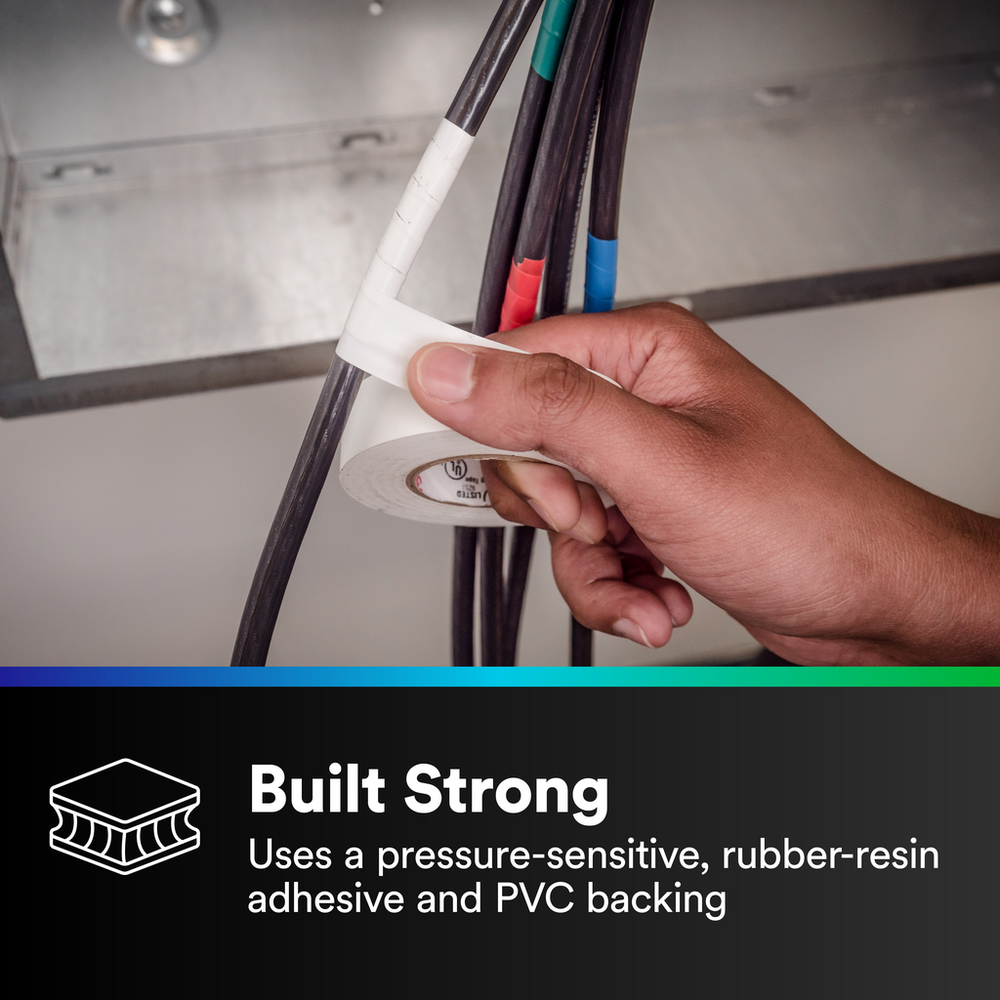

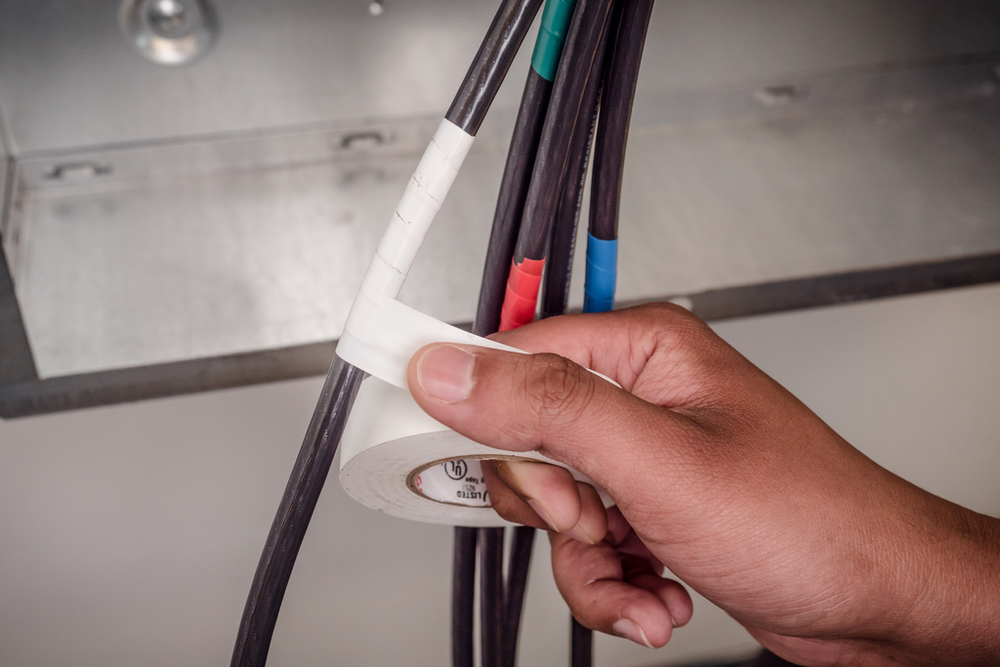

  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection

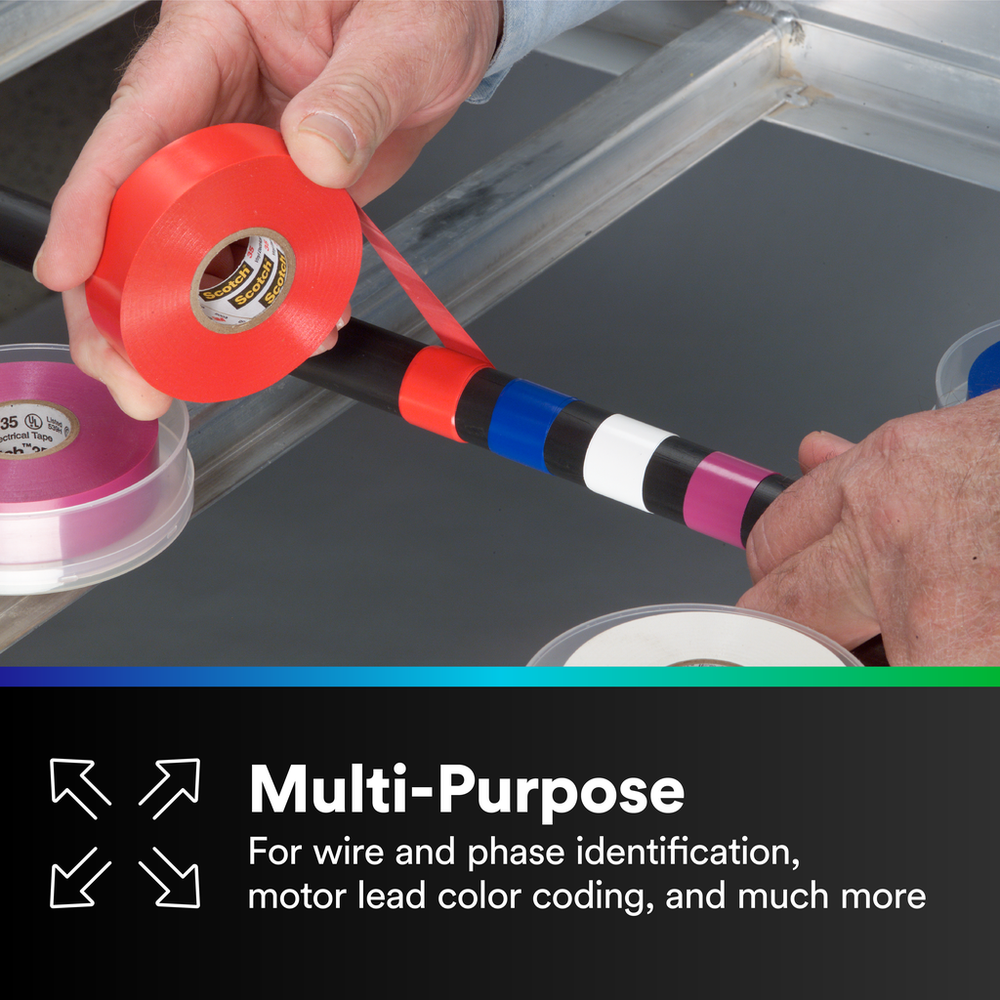

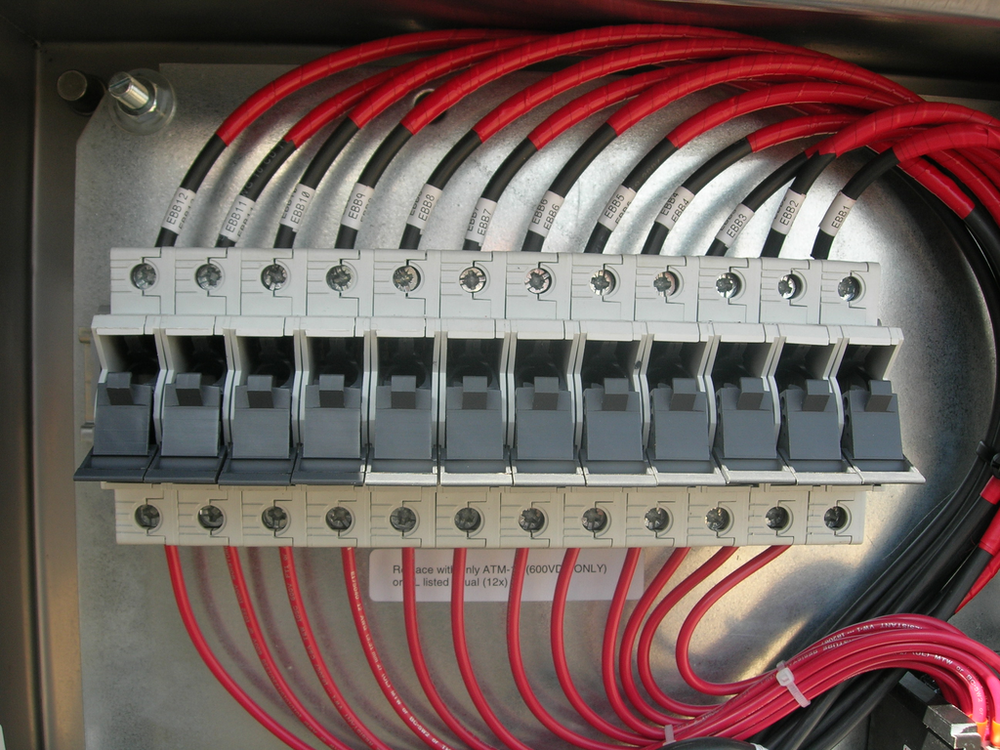

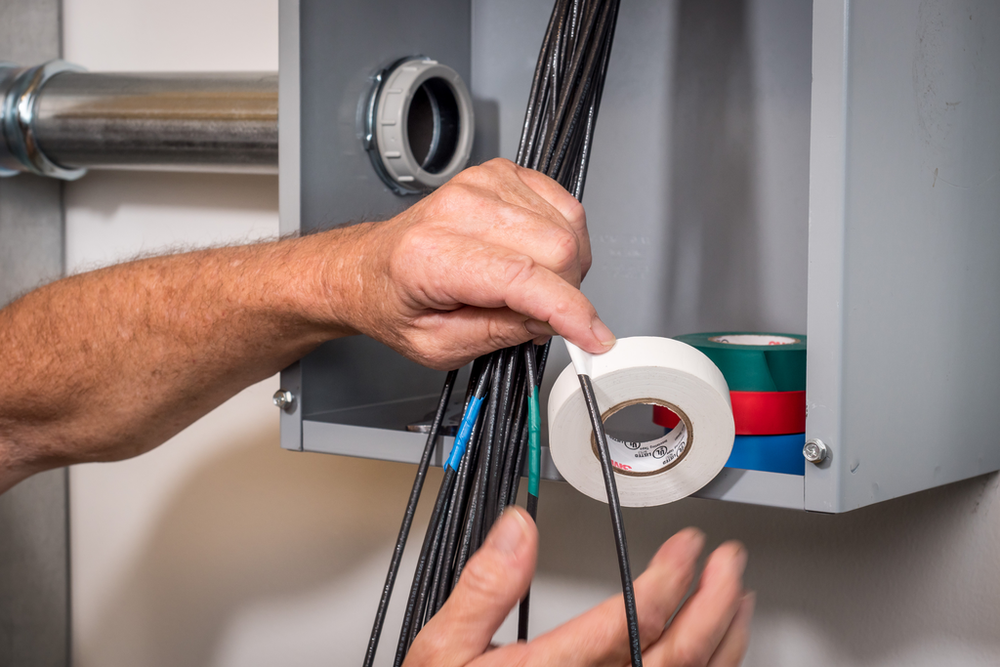

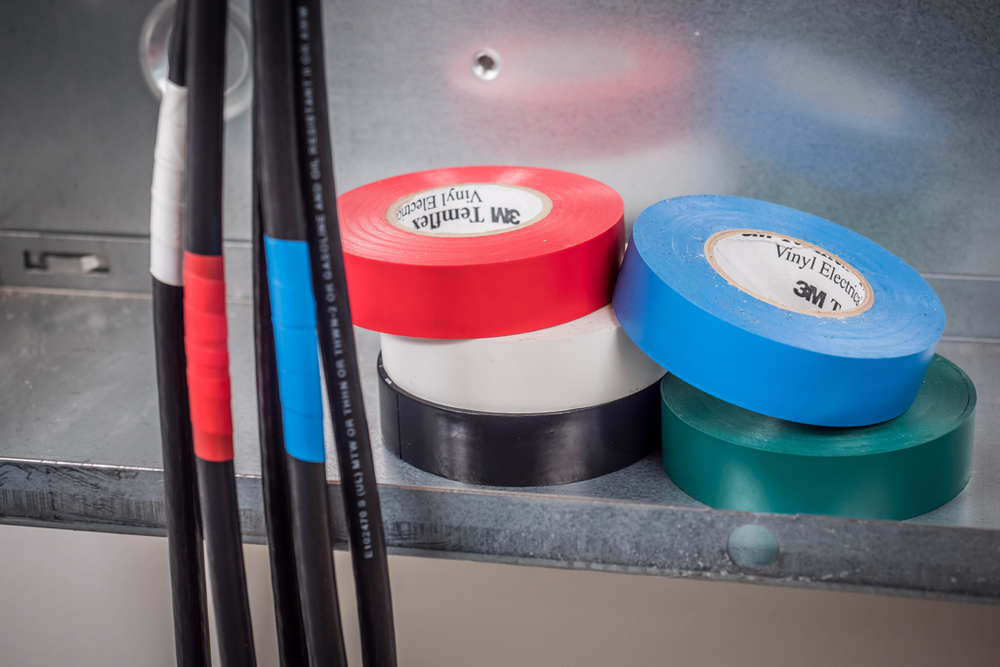

  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking

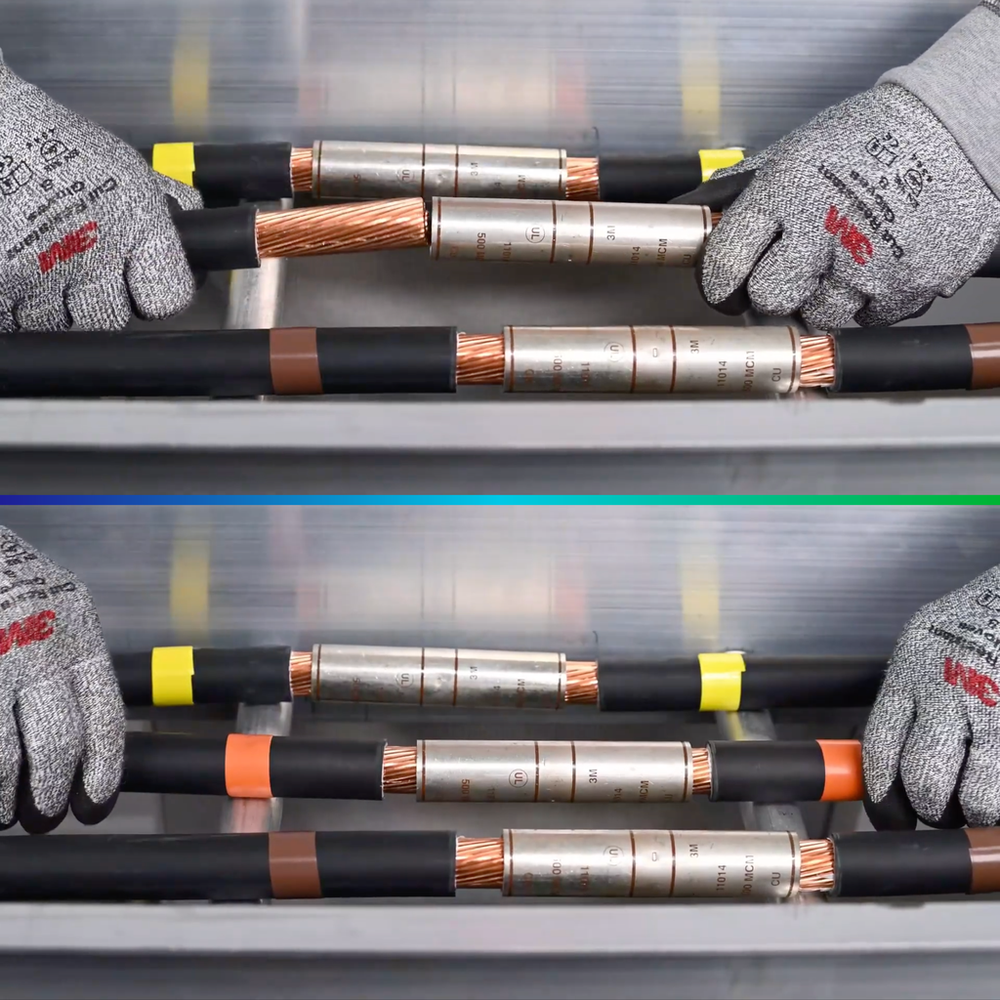

  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments
  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Backing (Carrier) Thickness (Metric) UOMmm
Dielectric Strength600.0
Insulation Resistance> 10^6 megohms
Product MarketsElectrical Construction
Tensile Strength (Metric) UOMN/10mm
Rolls per Case100.0
Backing (Carrier) MaterialPVC
Tensile Strength (Imperial)90.0
Overall Length (Metric)6.1
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)20.0
ApplicationElectrical Maintenance; Insulation
Tensile Strength (Metric)30.0
Overall Width (Metric)12.7
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMYear
Backing (Carrier) Thickness (Metric)0.18
Minimum Operating Temperature (Celsius)-10.0
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeRubber
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
Rolls per Carton10.0
Electrolytic Corrosion Factor0.9
Tensile Strength (Imperial) UOMlb/in
Tape GradeProfessional
Voltage Rating600 V
Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
Product ColorWhite
Dielectric Strength UOMV
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Operating Temperature (Fahrenheit)14.0
Overall Length (Imperial) UOMft
