3M Products & Supplies

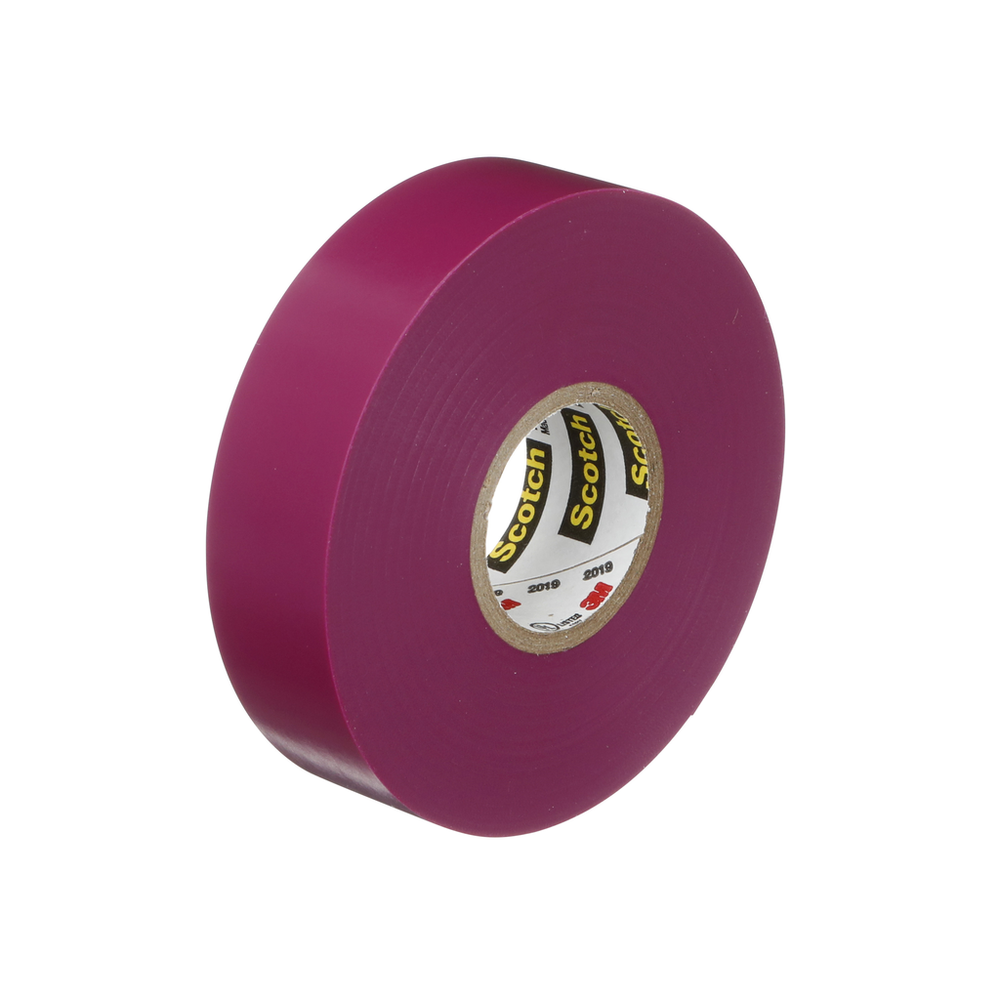

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Violet, 10 rolls/carton, 100 rolls/Case - 7100067890

Sold As: 10-Pack
SKU: 7100067890
MPN: 7100067890
For an accurate lead time please contact us
UPC: 00054007499237
3M ID: 80610833990
5 Digit UPC: 49923
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

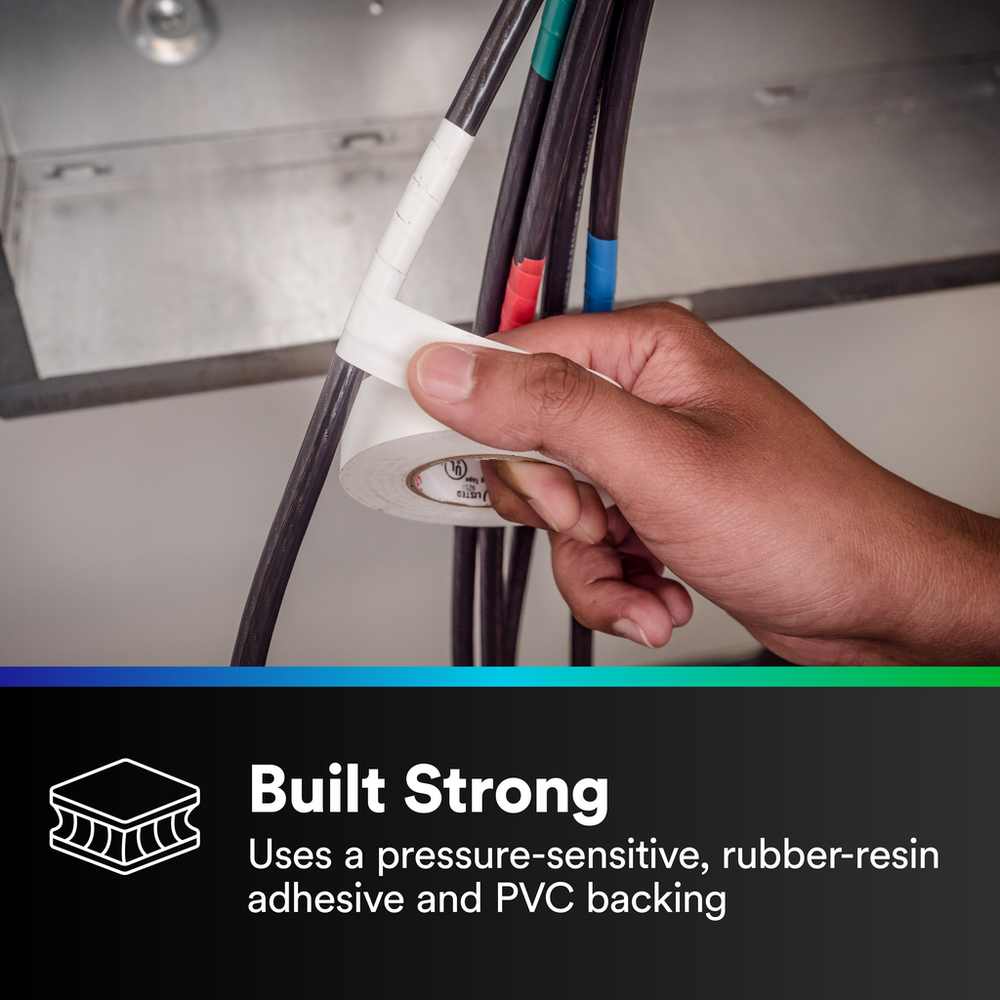

  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments
  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-10.0
Rolls per Carton10.0
Overall Length (Imperial)20.0
Product ColorViolet
Voltage Rating600 V
Overall Length (Metric) UOMm
Dielectric Strength UOMV/mil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Overall Width (Metric)12.7
Shelf Life UOMYear
Rolls per Case100.0
Overall Width (Imperial)0.5
Product MarketsElectrical Construction
Backing (Carrier) MaterialPVC
Backing (Carrier) Thickness (Metric)0.18
Insulation Resistance> 10^6 megohms
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)121.0
Electrolytic Corrosion Factor0.9
Dielectric Strength1250.0
Minimum Operating Temperature (Fahrenheit)14.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeRubber
Maximum Operating Temperature (Fahrenheit)250.0
Tape GradeProfessional
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
Overall Length (Metric)6.1
Overall Width (Imperial) UOMin
ApplicationElectrical Maintenance; Insulation
Overall Length (Imperial) UOMft
