3M Products & Supplies

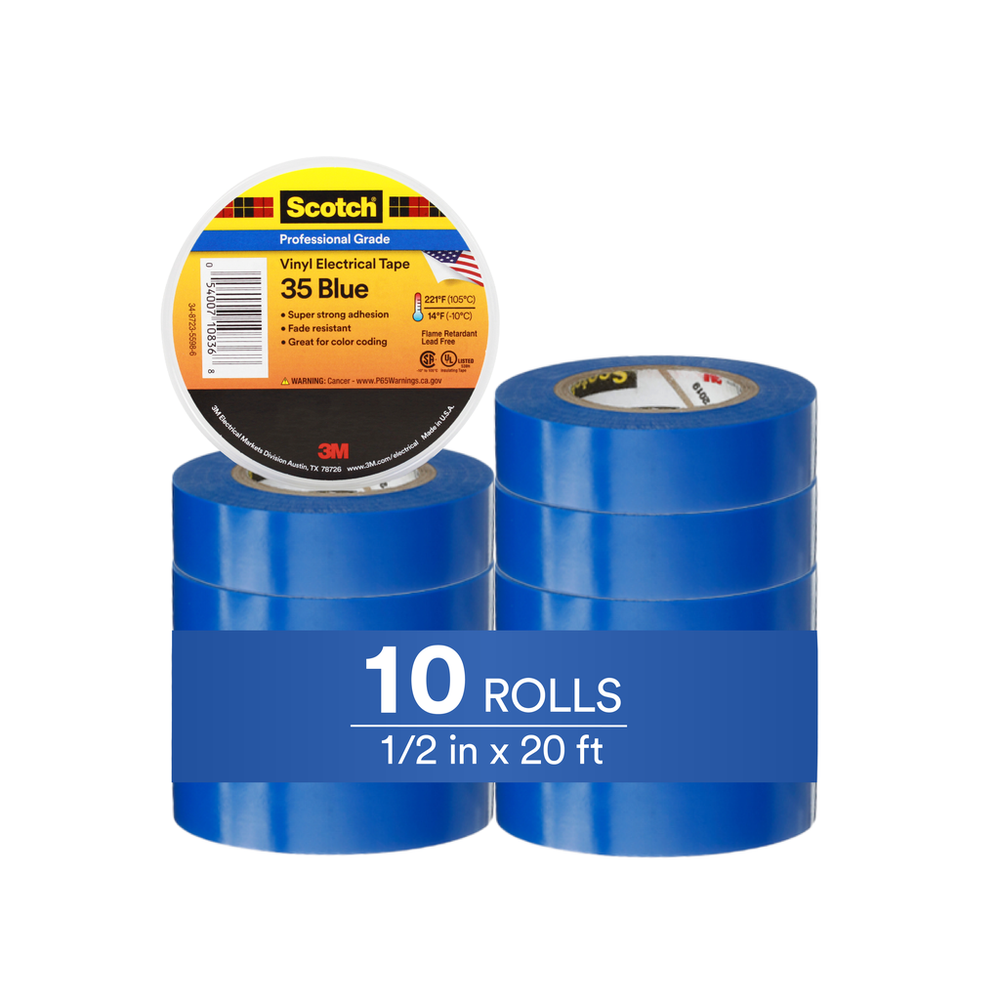

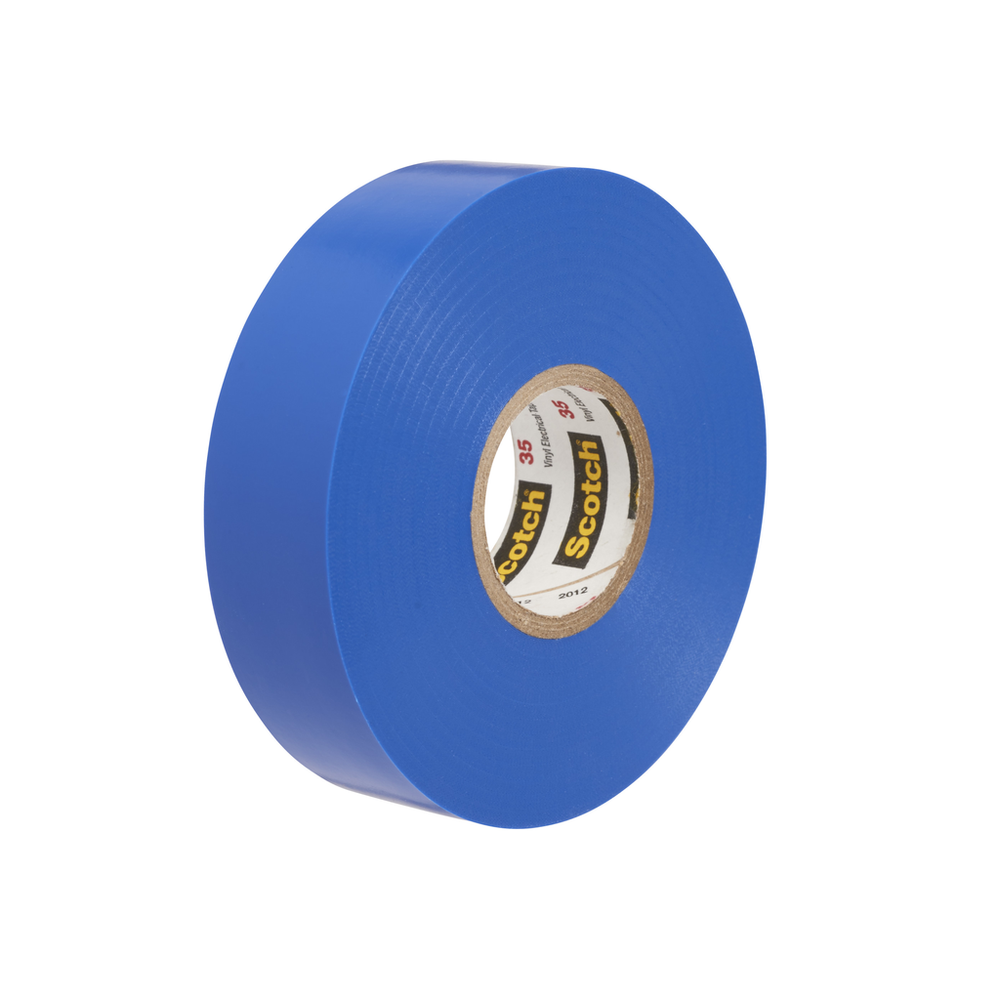

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Blue, 10 rolls/carton, 100 rolls/Case - 7000132637

Sold As: 10-Pack
SKU: 7000132637
MPN: 7000132637
For an accurate lead time please contact us
UPC: 00054007102403
3M ID: 80610833917
5 Digit UPC: 10240
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments

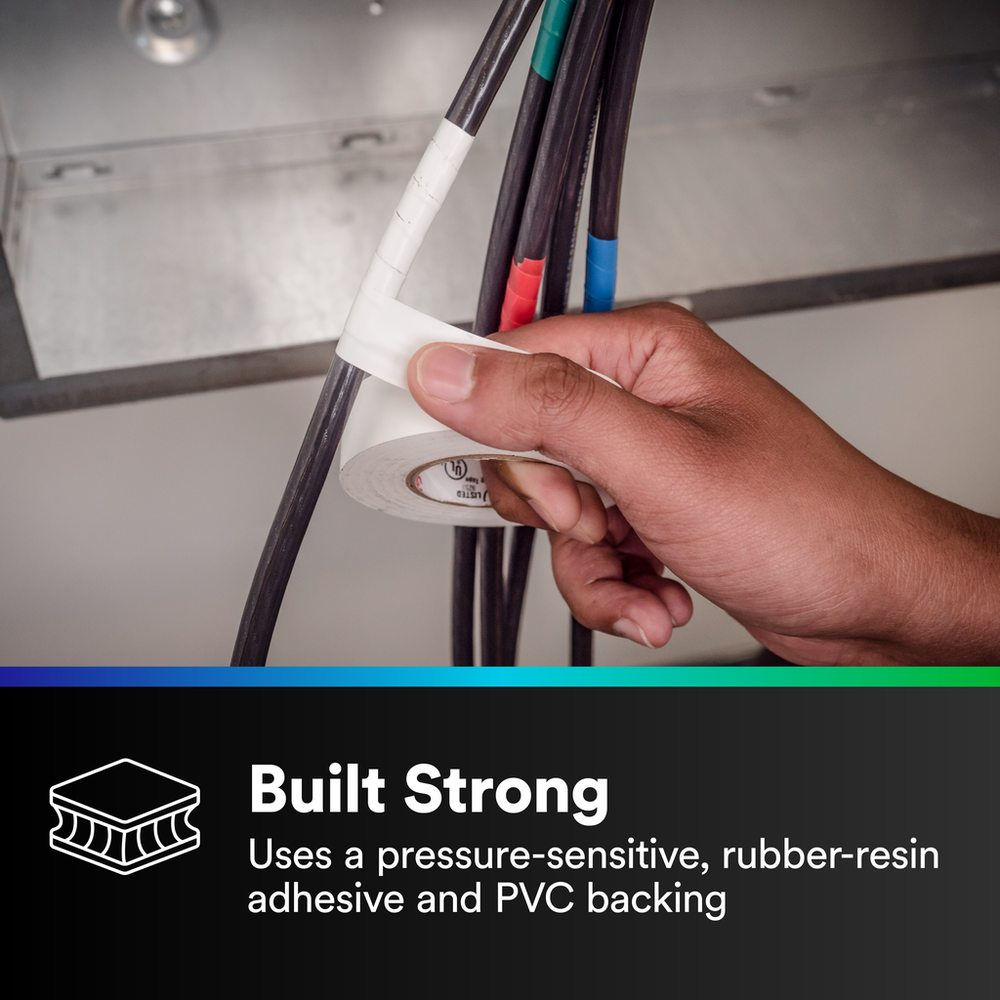

  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection

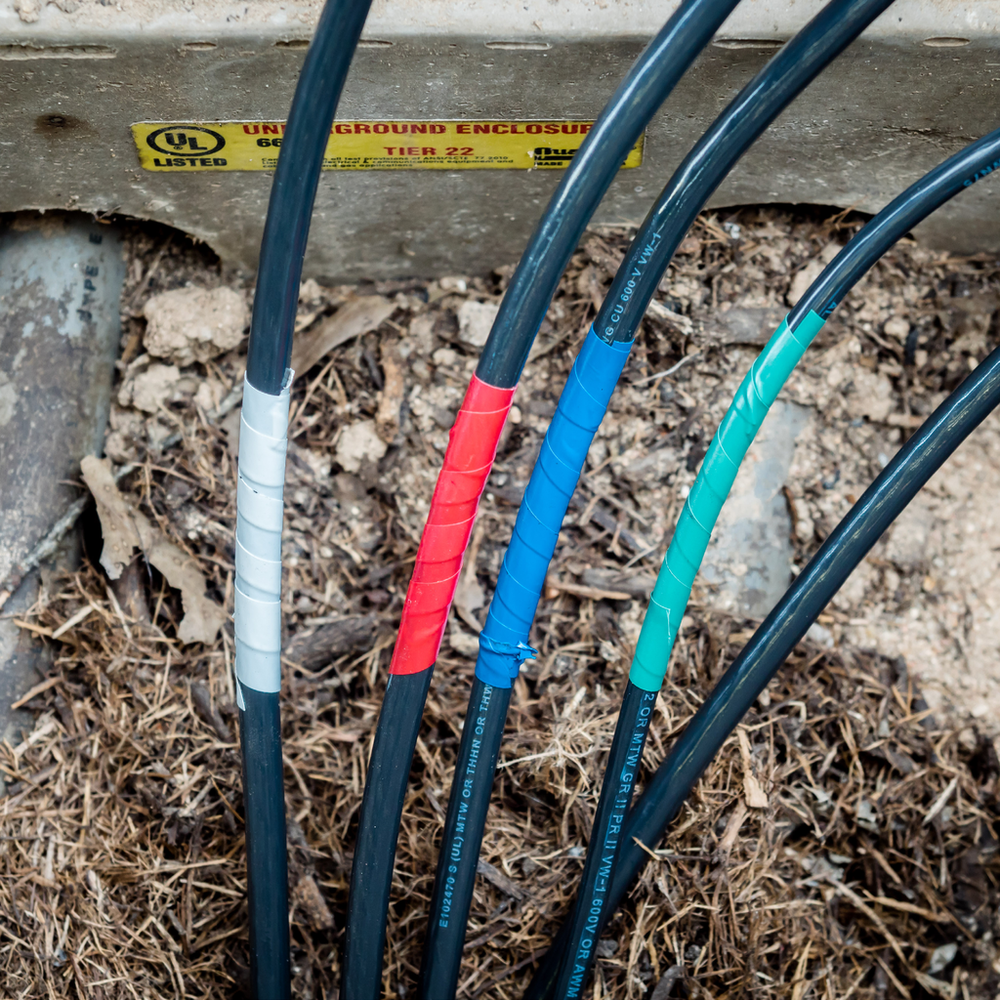

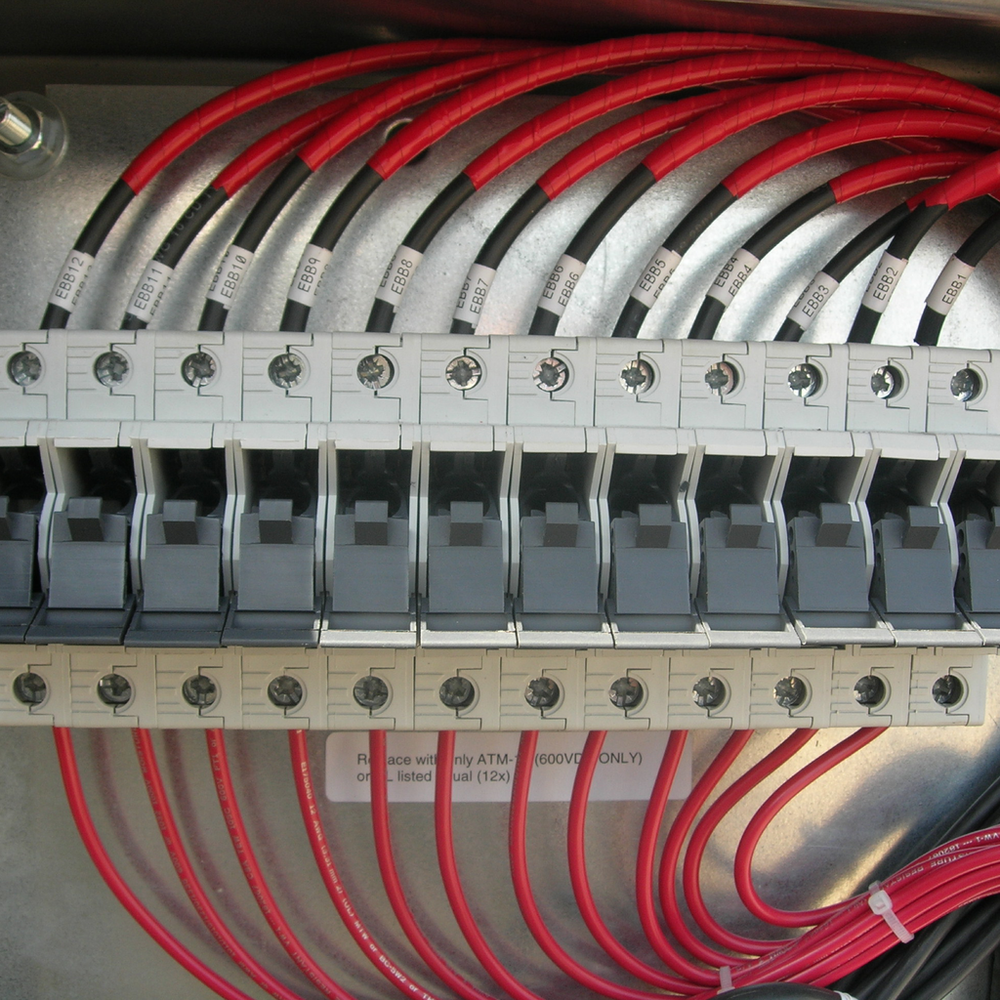

  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Dielectric Strength UOMV
Rolls per Case100.0
Backing (Carrier) Thickness (Metric)0.18
Product MarketsElectrical Construction
Overall Length (Imperial)20.0
Overall Width (Imperial) UOMin
Overall Width (Metric)12.7
Overall Length (Metric) UOMm
Product ColorBlue
Shelf Life UOMYear
Overall Width (Metric) UOMmm
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric)30.0
Minimum Operating Temperature (Celsius)-10.0
Overall Width (Imperial)0.5
Tensile Strength (Imperial)90.0
Overall Length (Metric)6.1
ApplicationElectrical Maintenance; Insulation
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Electrolytic Corrosion Factor0.9
Overall Length (Imperial) UOMft
Tape GradeProfessional
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Tensile Strength (Metric) UOMN/10mm
Insulation Resistance> 10^6 megohms
Rolls per Carton10.0
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit)14.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength600.0
Voltage Rating600 V
Adhesive TypeRubber
Backing (Carrier) MaterialPVC
Minimum Operating Temperature (Celsius) UOMDegree
