3M Products & Supplies

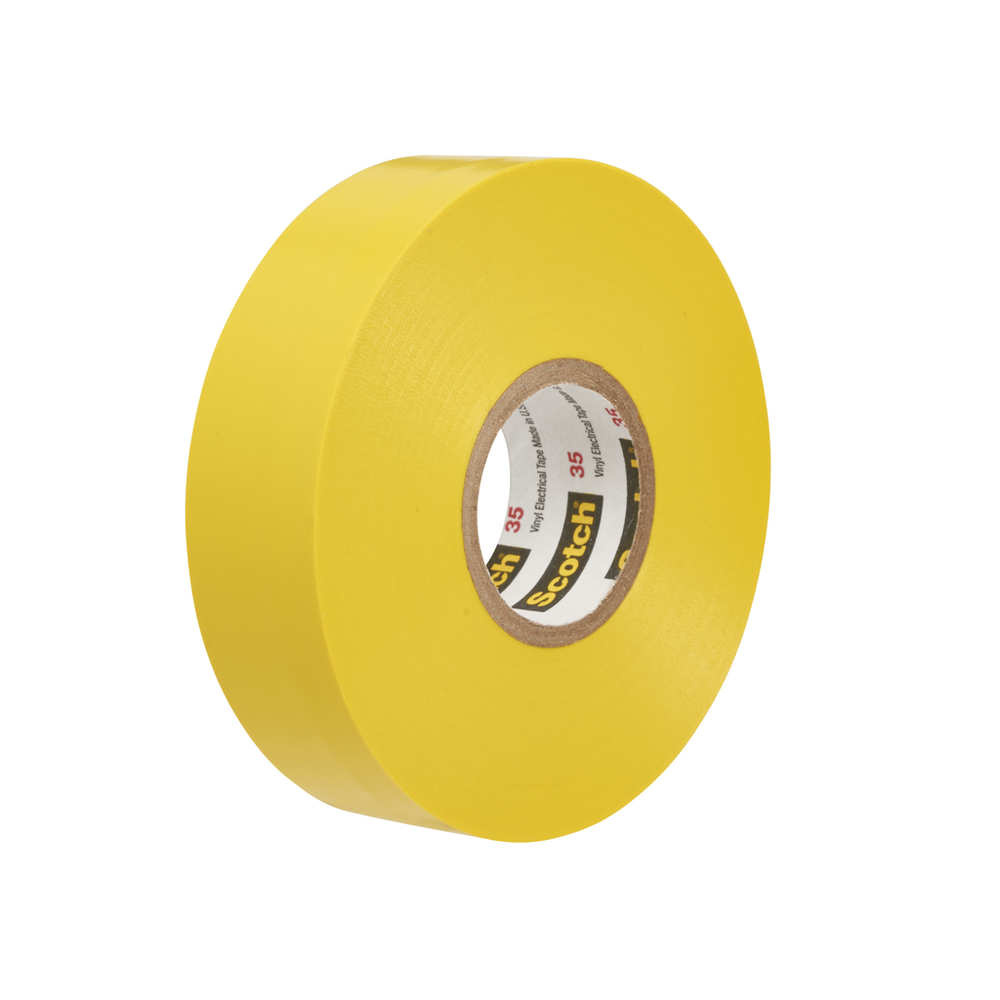

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Yellow, 10 rolls/carton, 100 rolls/Case - 7000058435

Sold As: 10-Pack
SKU: 7000058435
MPN: 7000058435
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007102571
3M ID: 80610833958
5 Digit UPC: 10257
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-10.0
Backing (Carrier) MaterialPVC
Electrolytic Corrosion Factor0.9
Overall Width (Imperial)0.5
Overall Width (Metric)12.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Dielectric Strength600.0
Insulation Resistance> 10^6 megohms
Overall Length (Imperial) UOMft
Rolls per Case100.0
Tensile Strength (Imperial)90.0
Voltage Rating600 V
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.18
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
Adhesive TypeRubber
Rolls per Carton10.0
Product MarketsElectrical Construction
ApplicationElectrical Maintenance; Insulation
Shelf Life UOMYear
Tape GradeProfessional
Overall Length (Imperial)20.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMN/10mm
Minimum Operating Temperature (Fahrenheit)14.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric)6.1
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorYellow
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric)30.0
Dielectric Strength UOMV
Maximum Operating Temperature (Celsius)105.0
Minimum Operating Temperature (Celsius) UOMDegree
