3M Products & Supplies

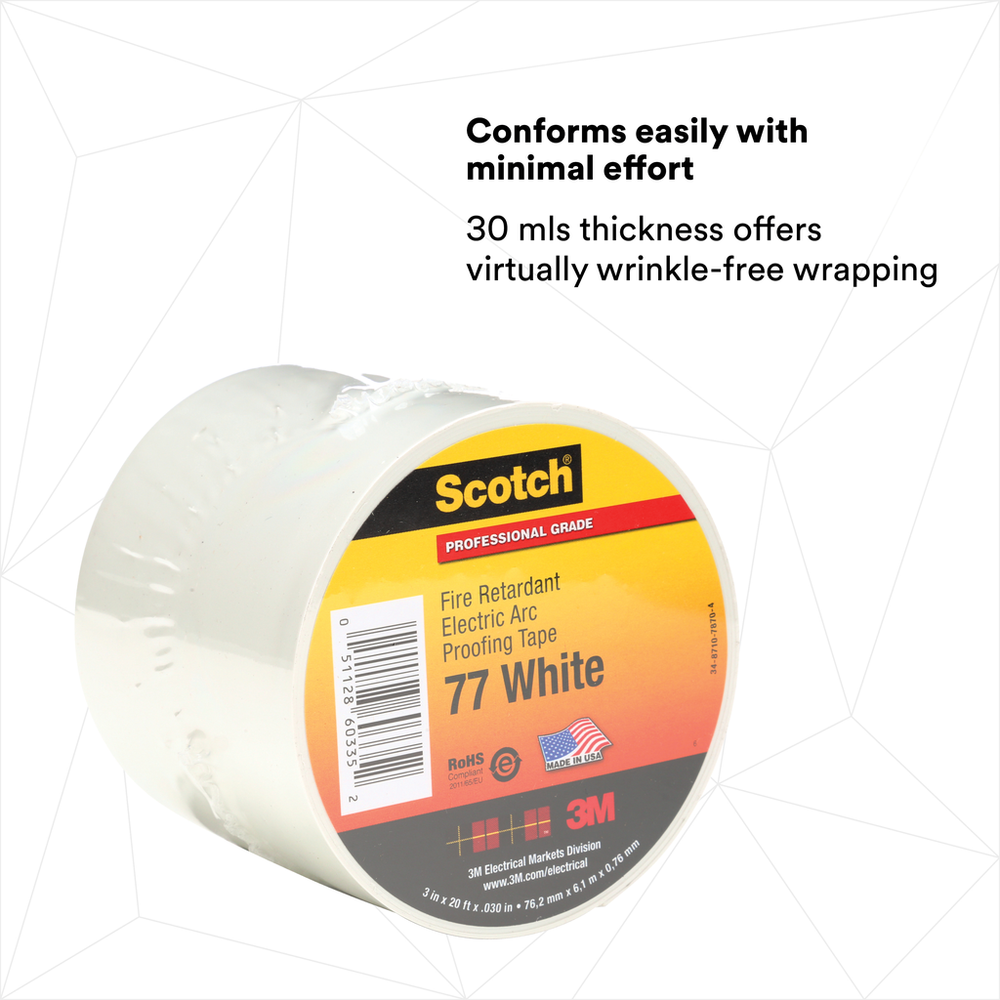

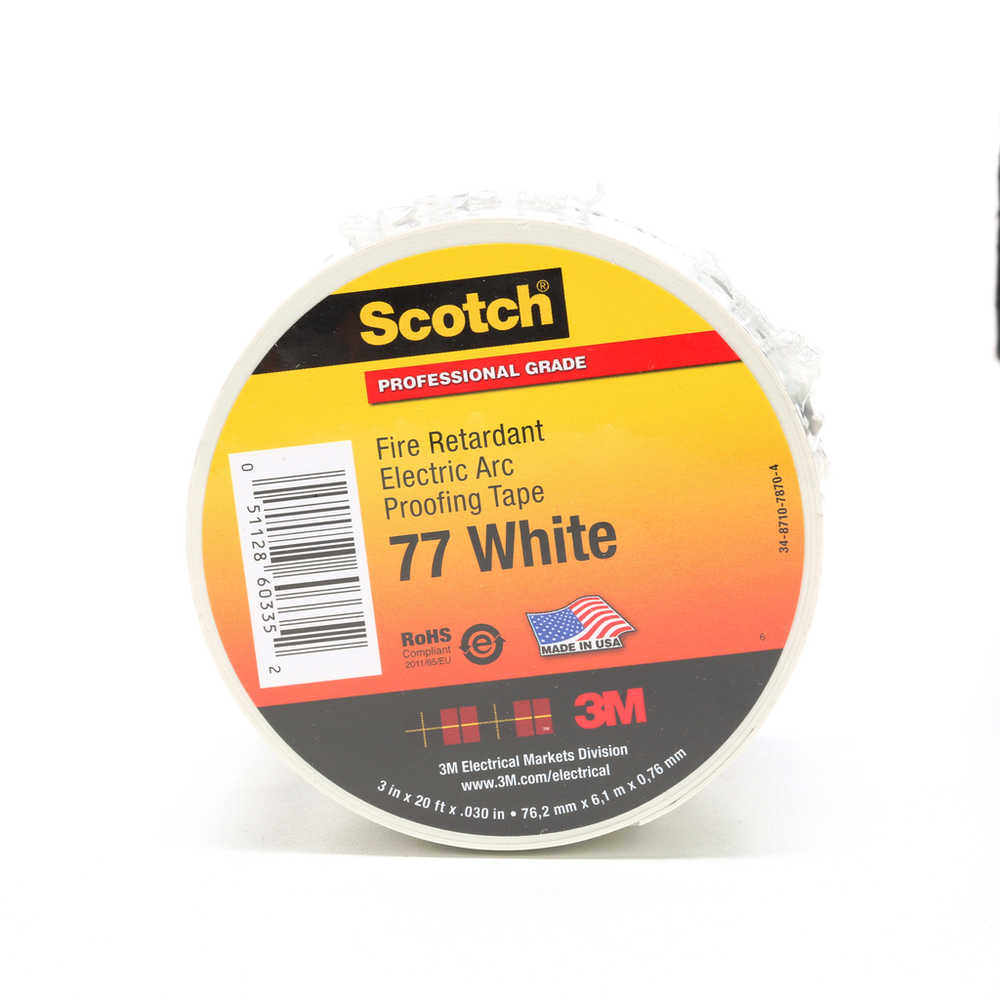

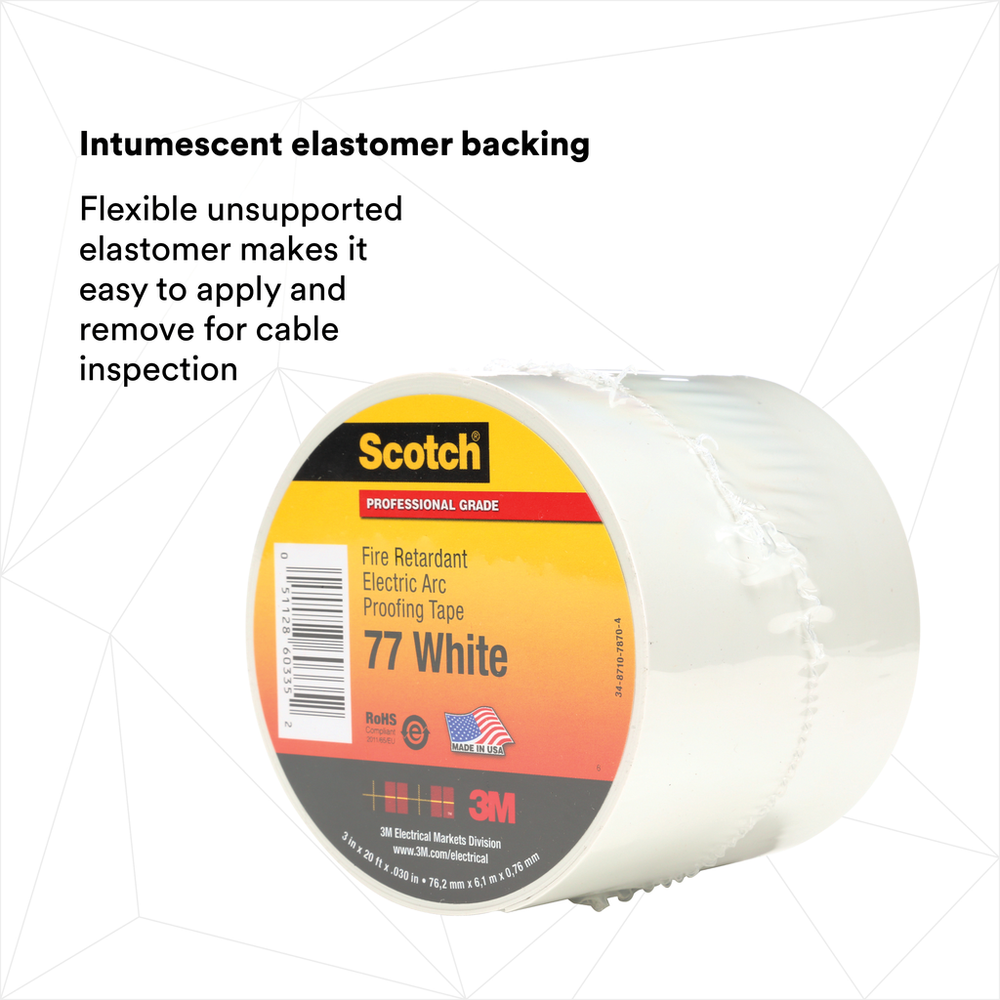

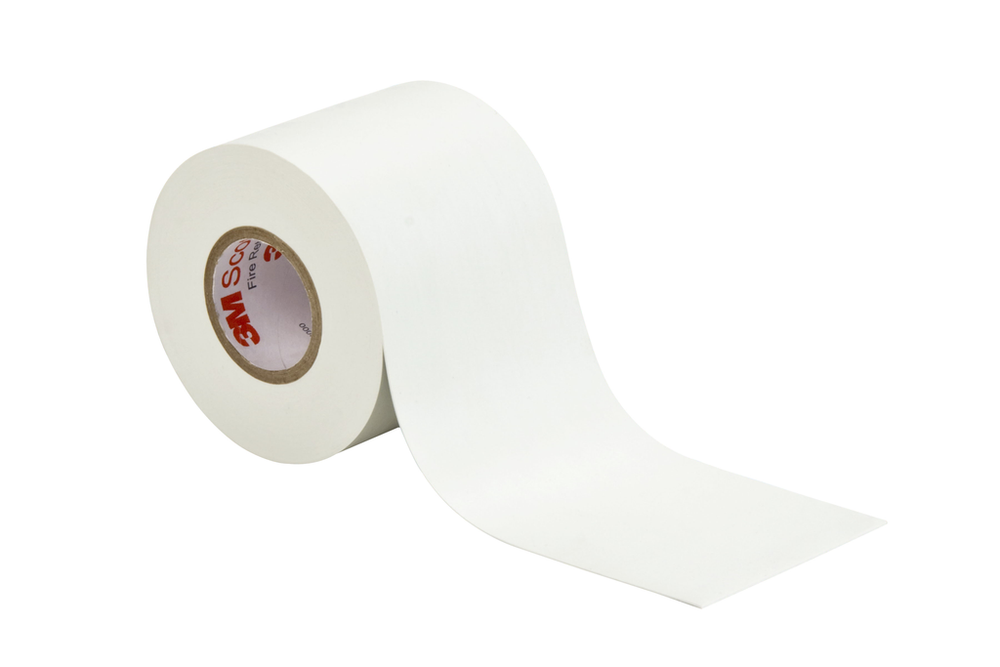

Scotch® Fire-Retardant Electric Arc Proofing Tape 77W, 3 in x 20 ft, White/Gray, 1 roll/carton, 10 rolls/Case - 7010399034

Sold As: 10-Pack
SKU: 7010399034
MPN: 7010399034
For an accurate lead time please contact us
UPC: 00051128603352
3M ID: 80611606007
5 Digit UPC: 60335
$272.70 ($27.27 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 77 is a 30 mil thick, premium grade, flame retardant, electric arc proofing tape. This tape is 600V rated and is suitable to protect most types of electrical cables when exposed to potential failures in an adjacent cable. It is designed with a flexible unsupported elastomer, which makes it easy to apply and easy to remove for cable inspection.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Conformability offers virtually wrinkle-free wrapping with minimal effort
  • Intumescent elastomer backing
  • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Application/IndustryCommercial Construction; Industrial Construction; Maintenance and Repair Operations; Mining; Residential Construction; Solar; Utility; Wind Power
Specifications MetConsolidated Edison Co. Test EO-5343-14
Total Tape Thickness without Liner (Metric)0.76
Backing (Carrier) MaterialIntumescent Elastomer
Product ColorLight Gray
Rolls per Carton1.0
Tape GradeProfessional
Total Tape Thickness without Liner (Imperial)30.0
Overall Width (Metric)76.2
Tensile Strength (Metric) UOMkPa
Product MarketsElectrical Construction
Overall Length (Imperial)20.0
Overall Length (Imperial) UOMft
Overall Width (Metric) UOMmm
Rolls per Case10.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)3.0
Elongation at Break150
Tensile Strength (Metric)55.0
FeaturesSelf-Extinguishing; UV-resistant
Overall Width (Imperial) UOMin
Adhesive TypeNon-adhesive
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.76
Minimum Operating Temperature (Celsius)0.0
Dielectric Strength UOMkV/mm
Shelf Life UOMYear
Dielectric Strength19.7
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationElectrical Maintenance; Insulation
