3M Products & Supplies

Scotch® Linerless Rubber Splicing Tape 130C, 4 in x 10 ft, Black, 12 rolls/Case - 7100164334

Sold As: 12-Pack
SKU: 7100164334
MPN: 7100164334
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007500575
3M ID: 80610597330
5 Digit UPC: 50057
$1,581.82 ($131.82 / Count)
Hurry up! Current stock:

Product Description

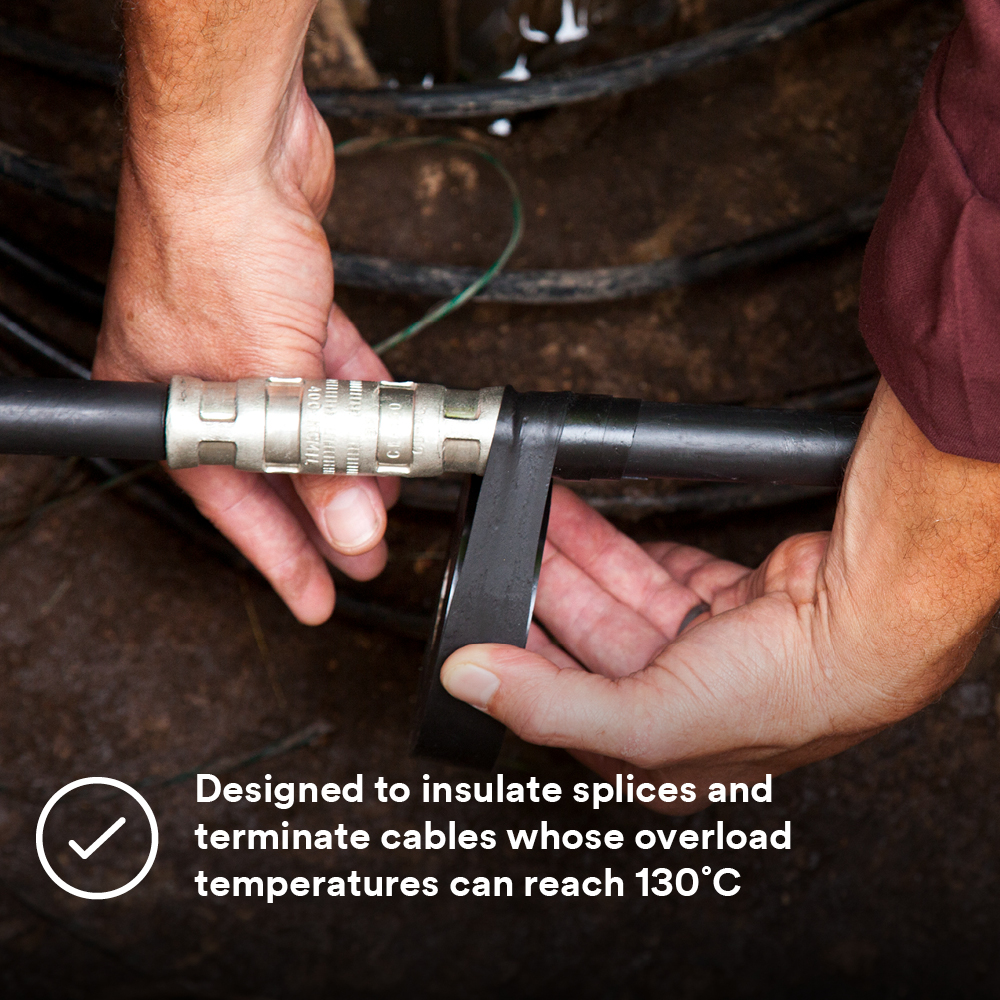

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

Features

  • Withstands temperatures up to 194 °F (90 °C)

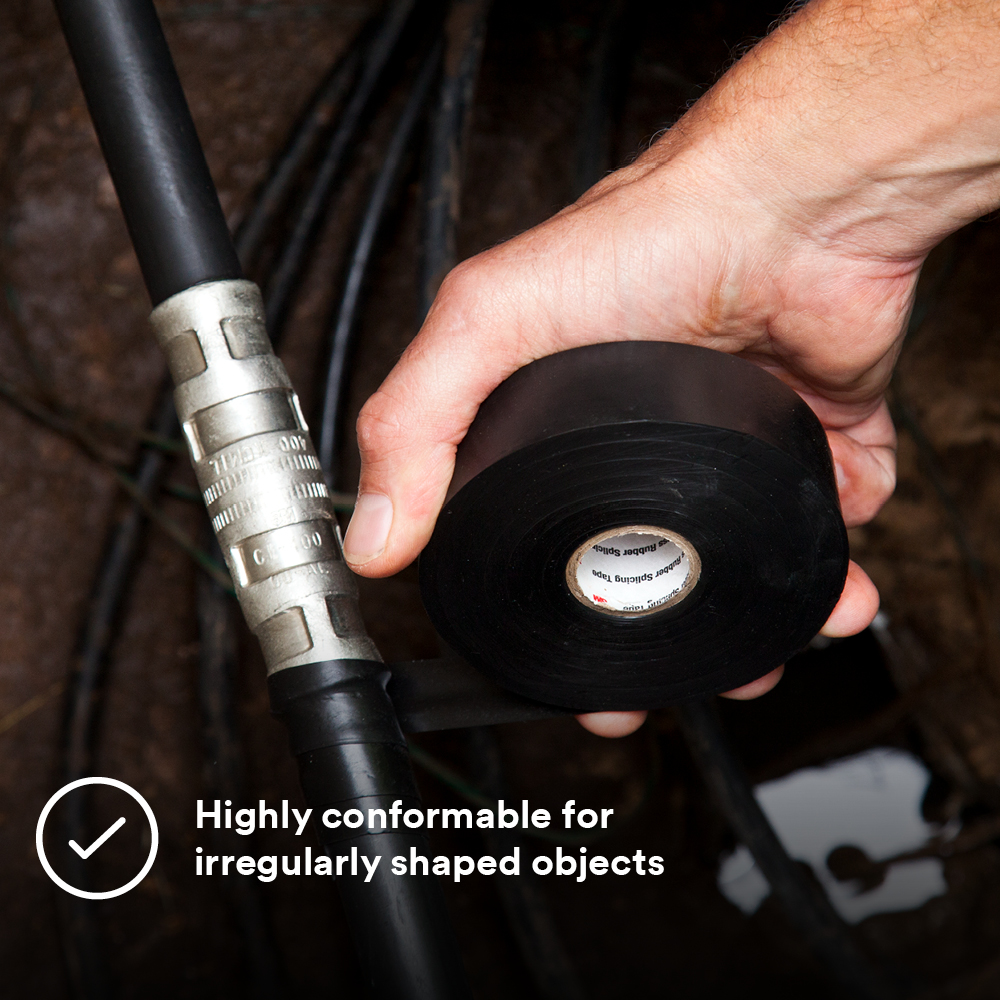

  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • ASTM Approved and RoHS 2011/65/EU Compliant
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.76
Insulation Resistance>10^15 ohms
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit)194.0
Product MarketsElectrical Construction
Tensile Strength (Metric)1723.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength UOMV/mil
Tensile Strength (Imperial)250.0
Backing (Carrier) Thickness (Metric) UOMmm
Voltage Rating69 kV
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius) UOMDegree
Elongation at Break850
Shelf Life UOMYear
Overall Length (Imperial) UOMft
Overall Width (Metric)101.6
Backing (Carrier) Thickness (Imperial) UOMmil
Application/IndustryAppliance and Fixture; Commercial Construction; Communications; Industrial Construction; Maintenance and Repair Operations; Mining; Solar; Utility; Wind Power
Maximum Operating Temperature (Celsius)90.0
Overall Length (Imperial)10.0
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMkPa
Overall Width (Metric) UOMmm
Product ColorBlack
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)30.0
Overall Width (Imperial)4.0
Maximum Operating Temperature (Celsius) UOMDegree
Tape GradeProfessional
Specifications MetRoHS 2011/65/EU
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Metric)0.76
Dielectric Strength750.0
Total Tape Thickness without Liner (Imperial)30.0
Total Tape Thickness without Liner (Metric) UOMmm
FeaturesSelf-sticking; UV-resistant
Backing (Carrier) MaterialEthylene Rubber
Overall Length (Metric)3.0
