3M Products & Supplies

Scotch® Self-Fusing Silicone Rubber Electrical Tape 70, 1 in x 30 ft, Sky Blue/Gray, 1 roll/carton, 24 rolls/case - 7000006225

Sold As: 24-Pack
SKU: 7000006225
MPN: 7000006225
For an accurate lead time please contact us
UPC: 00051128572610
3M ID: 80611438617
5 Digit UPC: 57261
$1,884.88 ($78.54 / Count)
Hurry up! Current stock:

Product Description

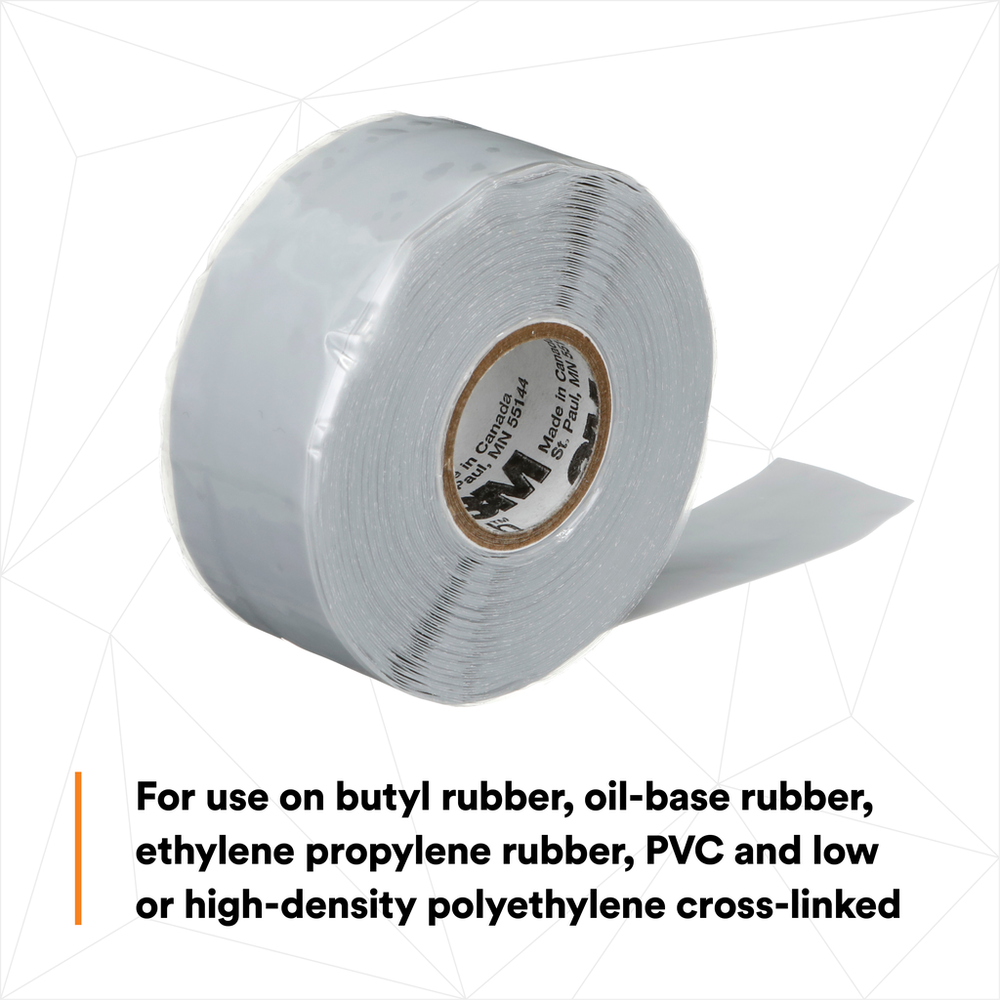

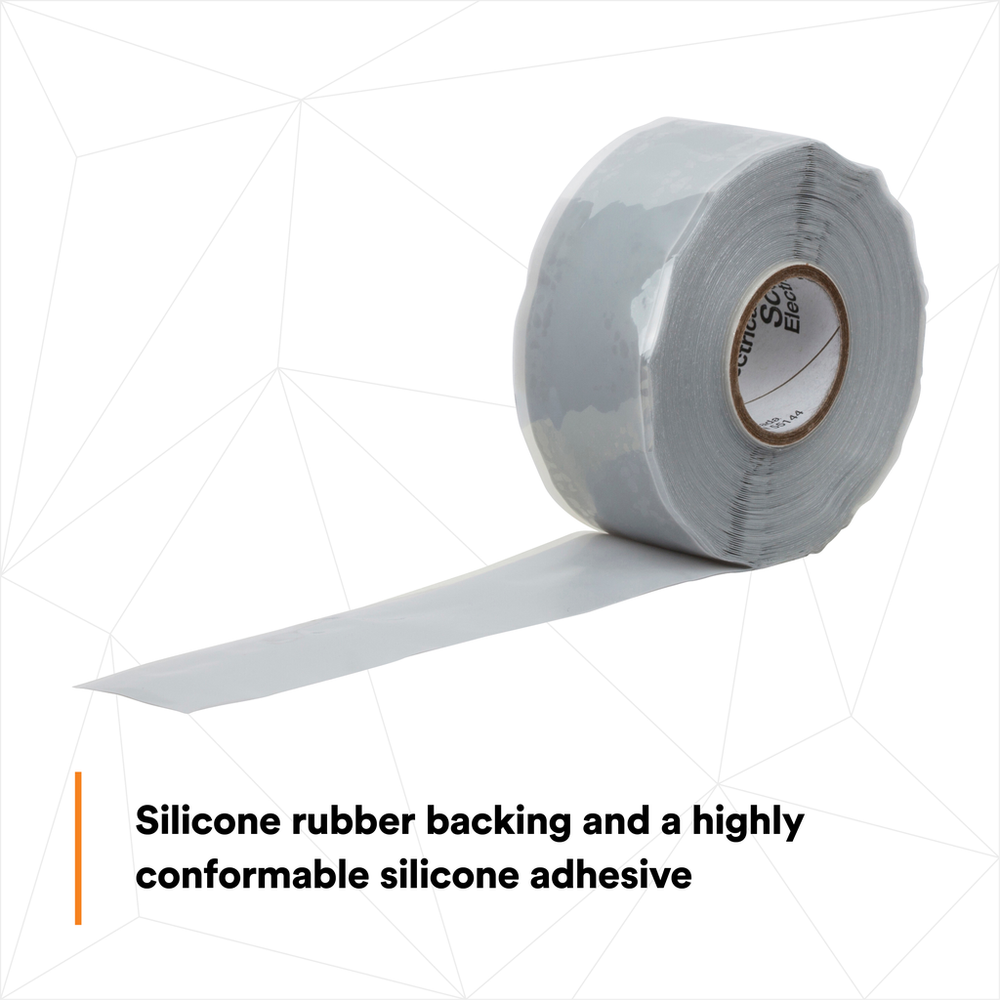

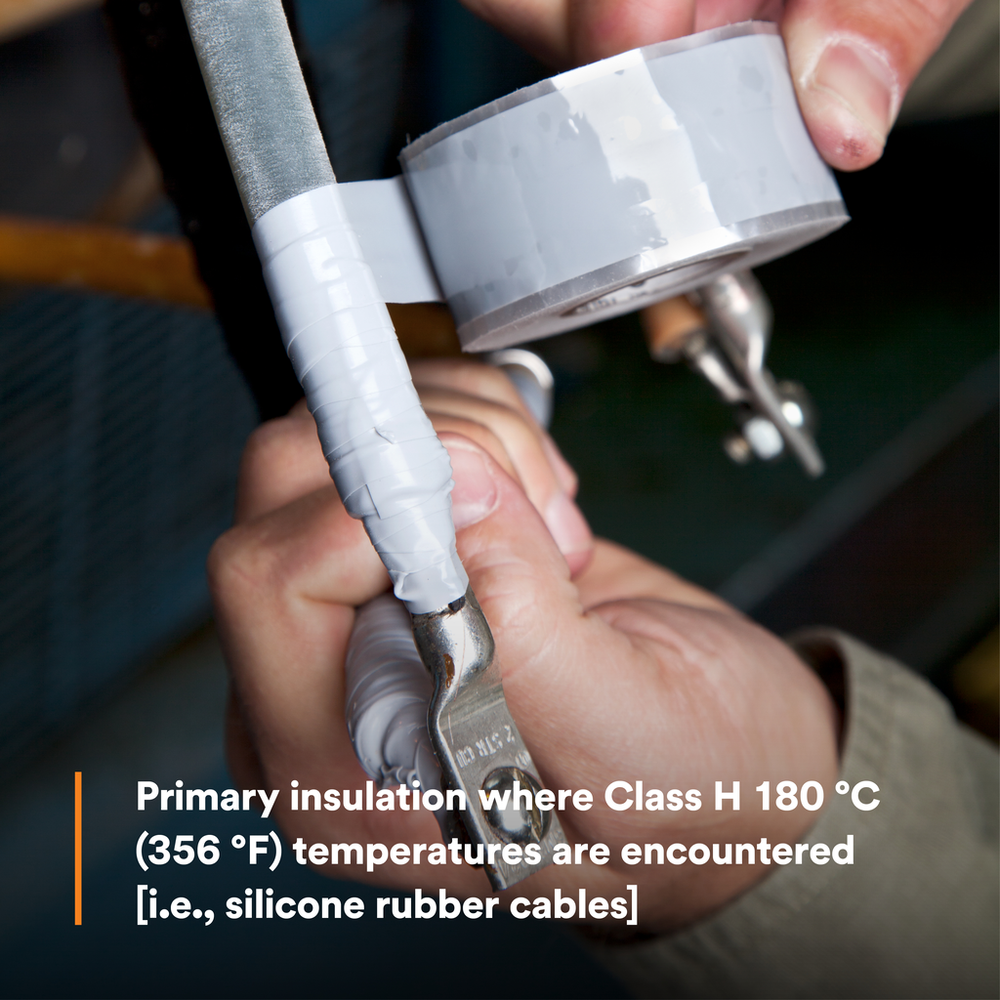

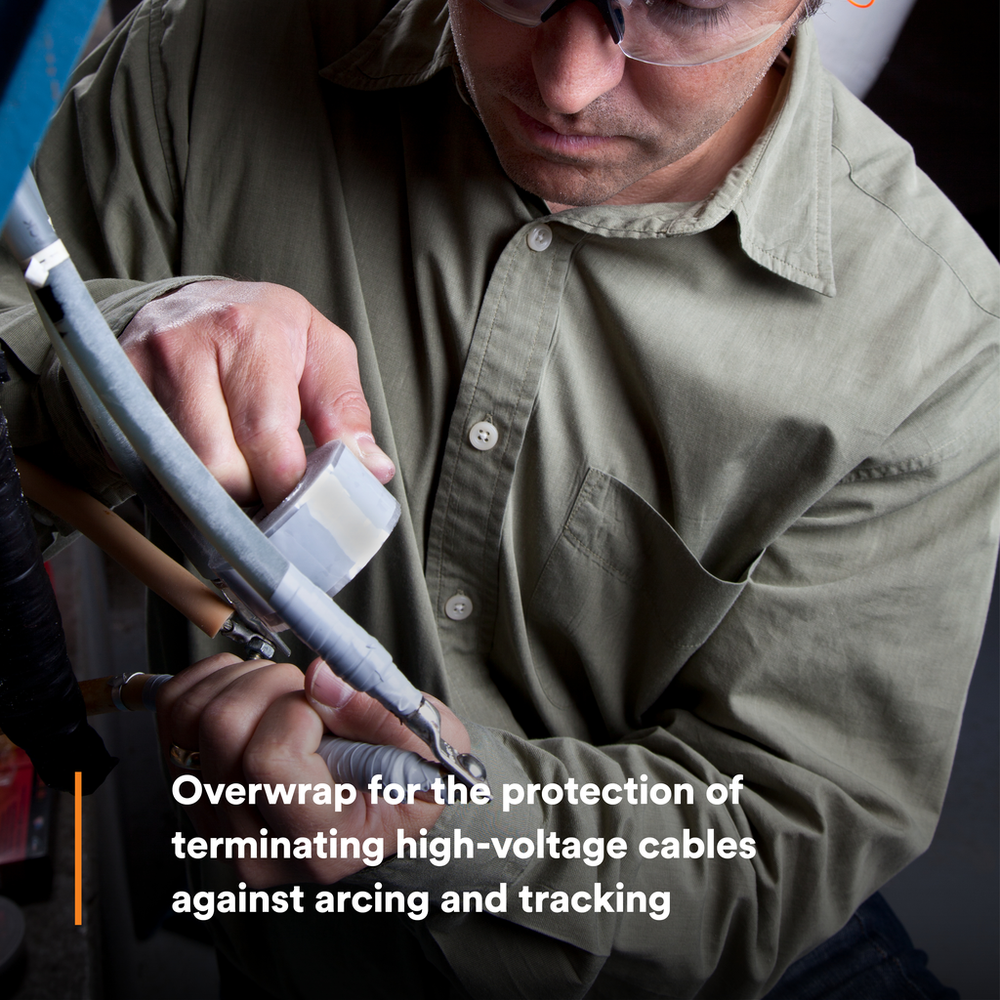

Scotch® Self-Fusing Silicone Rubber Electrical Tape 70 is a high-temperature arc and track-resistant tape composed of self-fusing, inorganic silicone rubber with easy-tear and easy-strip liner.

Features

  • Excellent instantaneous fusion
  • Withstands temperatures up to 356 °F (180 °C)
  • High dielectric strength
  • Excellent weathering characteristics
  • Excellent track and arc resistance
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginCanada
Units per Case1.0
Overall Length (Metric)9.1
Voltage Rating35 kV
Total Tape Thickness without Liner (Imperial)12.0
Total Tape Thickness without Liner (Imperial) UOMmil
Rolls per Case24.0
Tensile Strength (Metric)21.02
Elongation at Break450
Product MarketsElectrical Construction
Backing (Carrier) Thickness (Imperial)0.012
ApplicationElectrical Maintenance; Insulation
Overall Width (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMft
Adhesive TypeNon-adhesive
Application/IndustryAppliance and Fixture; Automotive and Marine; Commercial Construction; Industrial Construction; Irrigation; Maintenance and Repair Operations; Mining; Solar; Utility; Wind Power
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Tensile Strength (Imperial)120.02
Total Tape Thickness without Liner (Metric)0.3
Rolls per Carton1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Product ColorGray, Sky Blue
Backing (Carrier) MaterialSilicone
Overall Width (Metric) UOMmm
Specifications MetAA-59163 Class-I Type I, ASTM D-1000-76, ASTM D-495-71, RoHS 2011/65/EU
Tape GradeProfessional
Overall Width (Metric)25.4
Maximum Operating Temperature (Fahrenheit)356.0
Total Tape Thickness without Liner (Metric) UOMmm
Dielectric Strength UOMkV/mm
Backing (Carrier) Thickness (Metric)0.3
Dielectric Strength34.0
Backing (Carrier) Thickness (Imperial) UOMin
Shelf Life UOMYear
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/cm
Minimum Operating Temperature (Celsius) UOMDegree
FeaturesChemical-resistant; Self-sticking; UV-resistant
Overall Length (Imperial)30.0
Maximum Operating Temperature (Celsius)180.0
