3M Products & Supplies

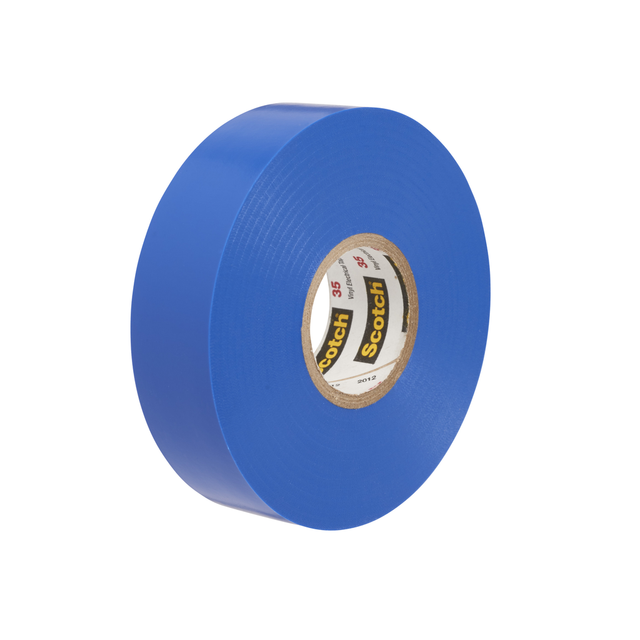

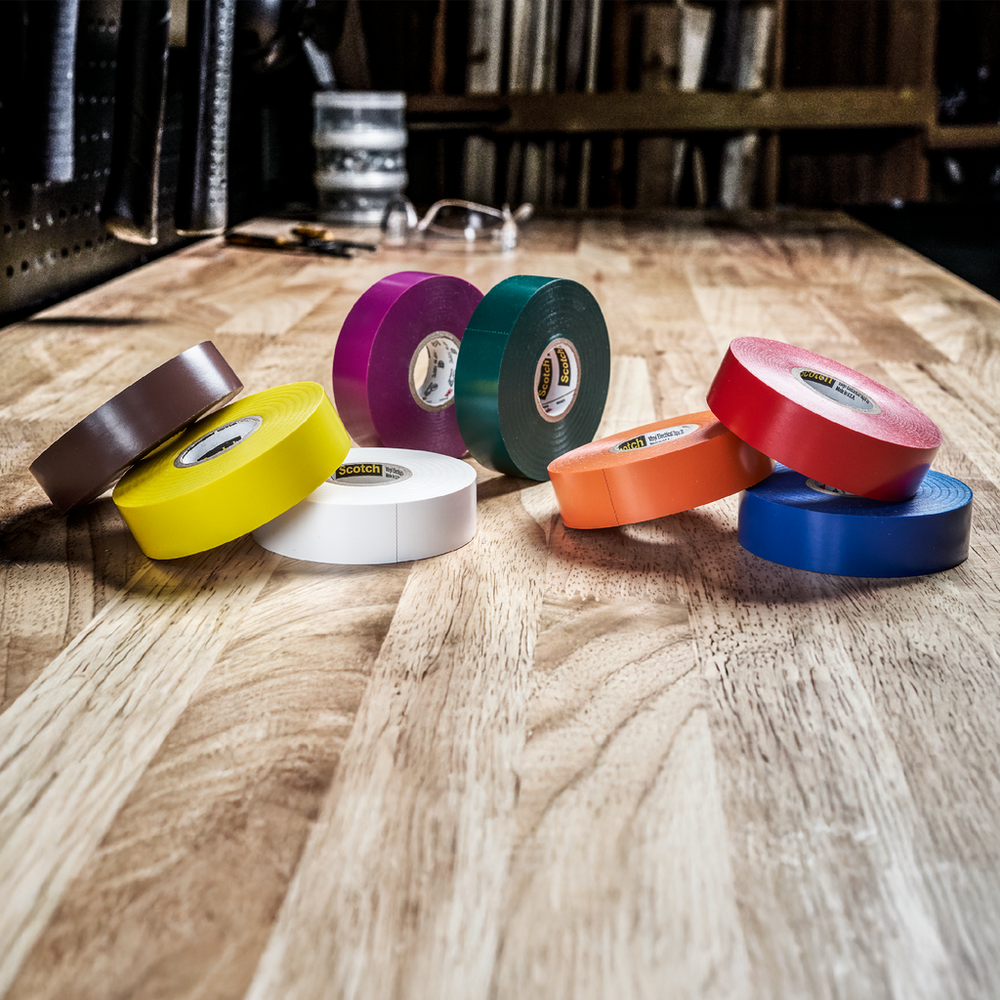

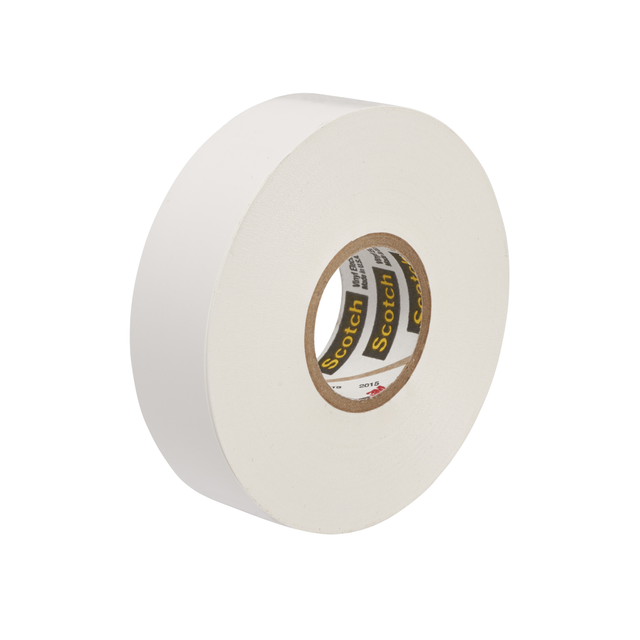

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Multi-color, 8 rolls/pack, 50 packs/Case - 7010297490

Sold As: 50-Pack
SKU: 7010297490
MPN: 7010297490
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007905295
3M ID: 80611448137
5 Digit UPC: 90529
$1,127.52 ($22.55 / Count)
Hurry up! Current stock:

Product Description

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Features

  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)

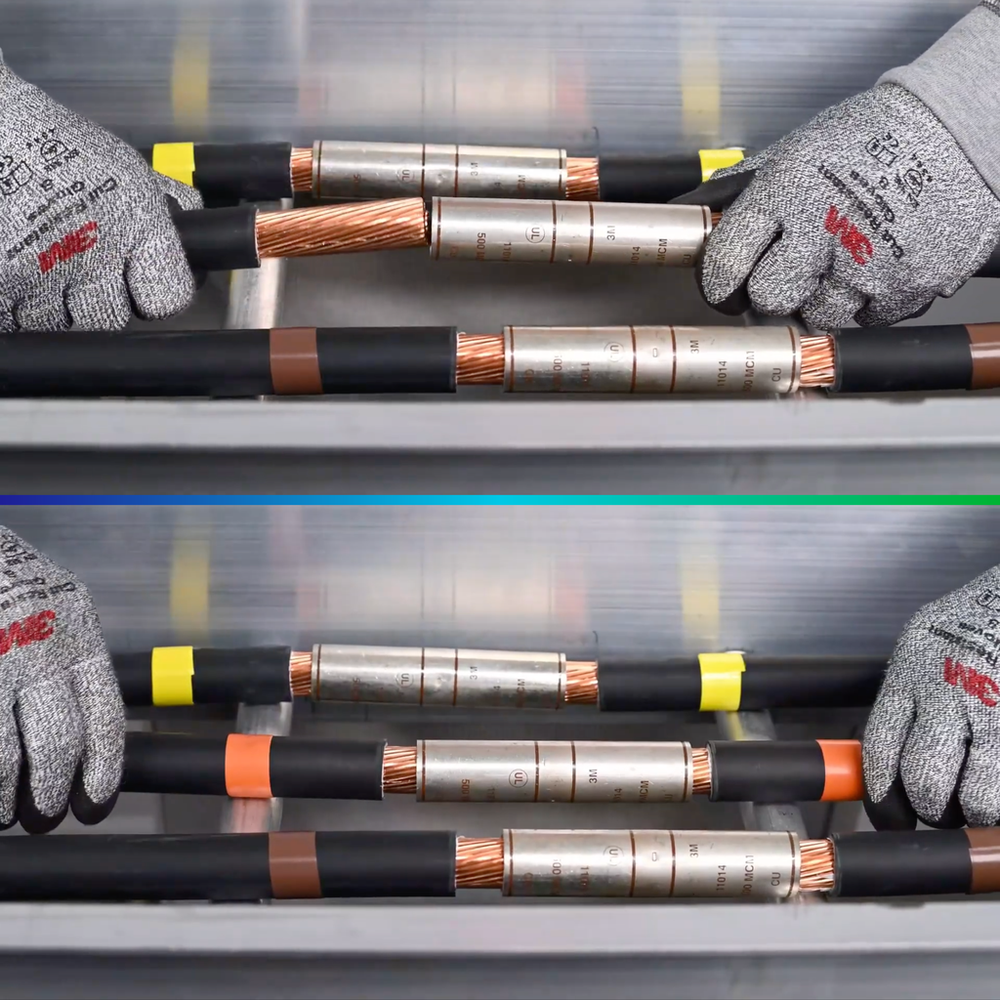

  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments

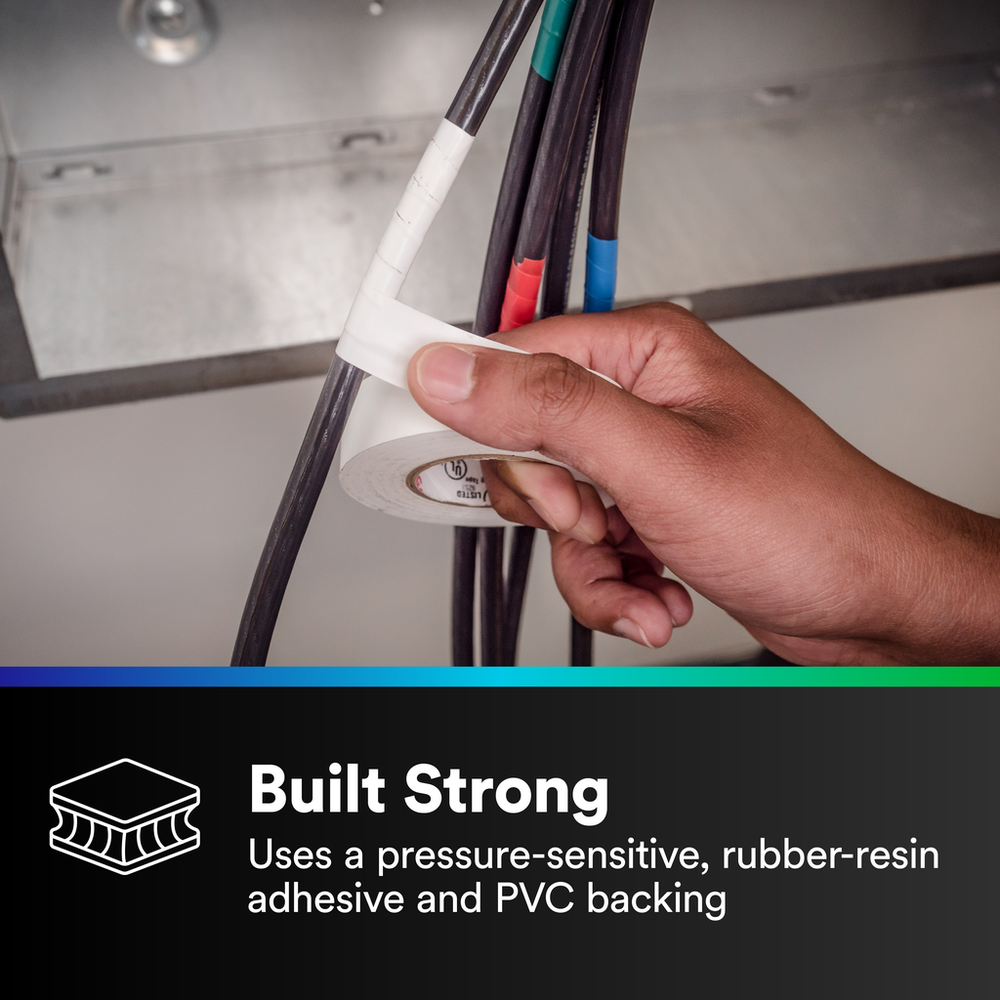

  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection

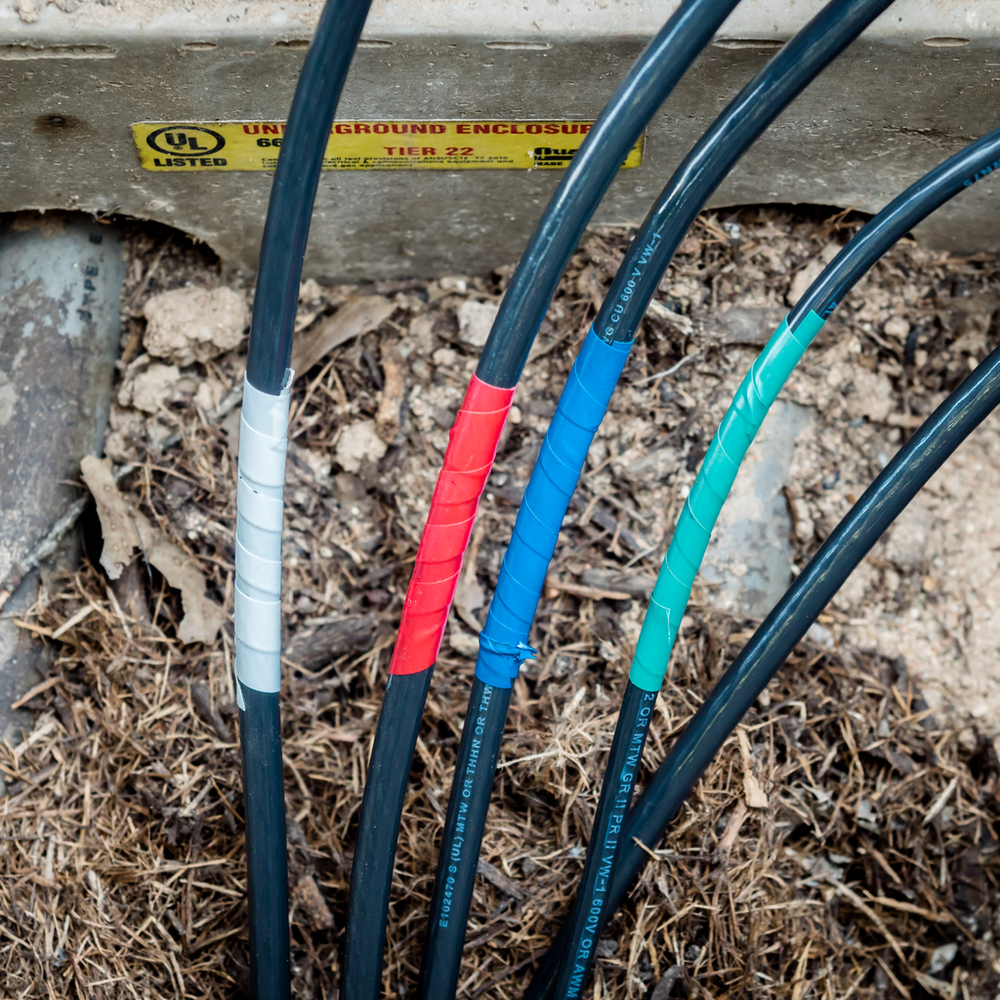

  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.178
Tensile Strength (Metric)30.0
Specifications MetCSA Certified, IEC 60454-3-1-6/F-PVC P/90, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1, VDE Marks License
Total Tape Thickness without Liner (Imperial)7.0
Voltage Rating600 V
Minimum Operating Temperature (Celsius)-10.0
Overall Length (Imperial)20.0
Minimum Operating Temperature (Fahrenheit)14.0
Overall Width (Metric)12.7
Backing (Carrier) MaterialPVC
ApplicationElectrical Maintenance; Insulation
Overall Length (Imperial) UOMft
Adhesive TypeRubber
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/10mm
Overall Width (Imperial) UOMin
Dielectric Strength UOMV/mil
Minimum Operating Temperature (Celsius) UOMDegree
Tape GradeProfessional
Maximum Operating Temperature (Fahrenheit)221.0
Tensile Strength (Imperial)90.0
Dielectric Strength1250.0
Overall Width (Imperial)0.5
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Electrolytic Corrosion Factor0.9
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Shelf Life UOMYear
Product ColorAssorted
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Product MarketsElectrical Construction
Overall Width (Metric) UOMmm
Insulation Resistance> 10^6 megohms
Backing (Carrier) Thickness (Metric)0.18
