3M Products & Supplies

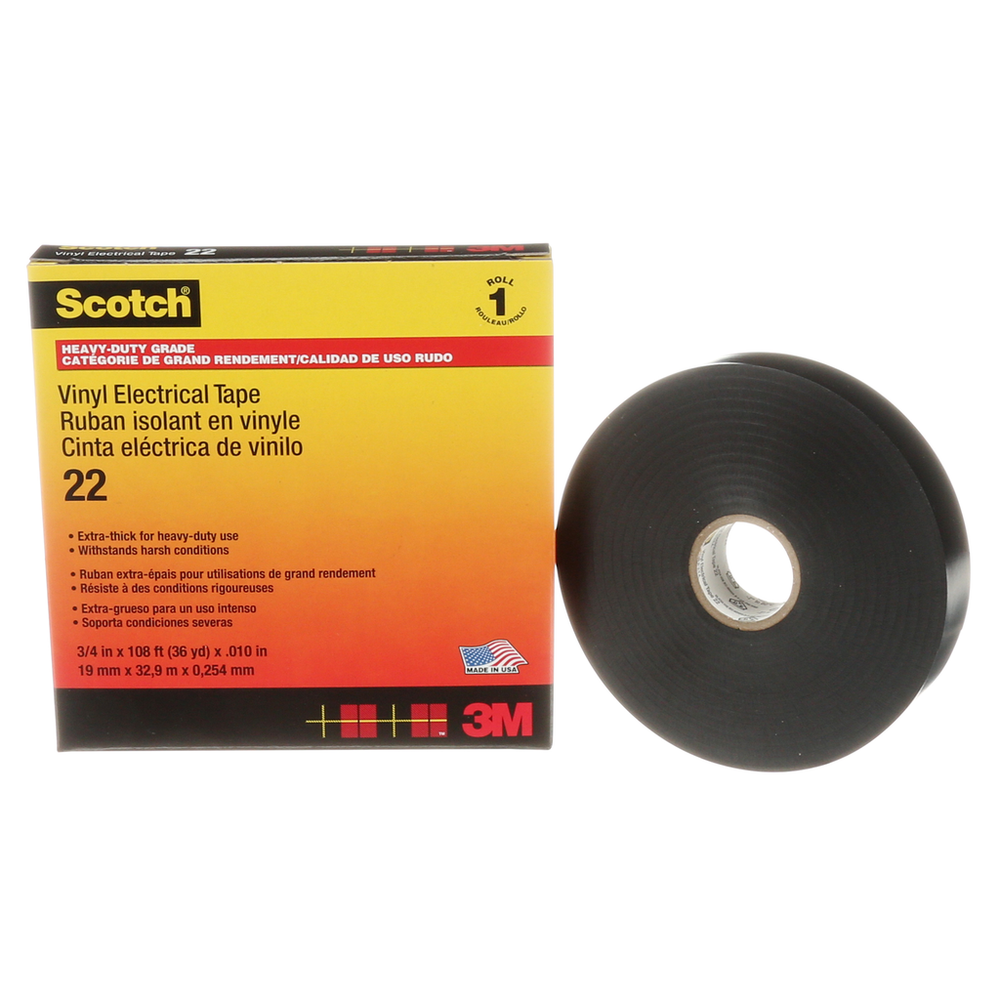

Scotch® Vinyl Electrical Tape 22, 3/4 in x 36 yd, Black, 12 rolls/carton, 48 rolls/Case - 7000031344

Sold As: 12-Pack
SKU: 7000031344
MPN: 7000031344
For an accurate lead time please contact us
UPC: 00054007100348
3M ID: 80012017044
5 Digit UPC: 10034
$265.39 ($22.12 / Count)
Hurry up! Current stock:

Product Description

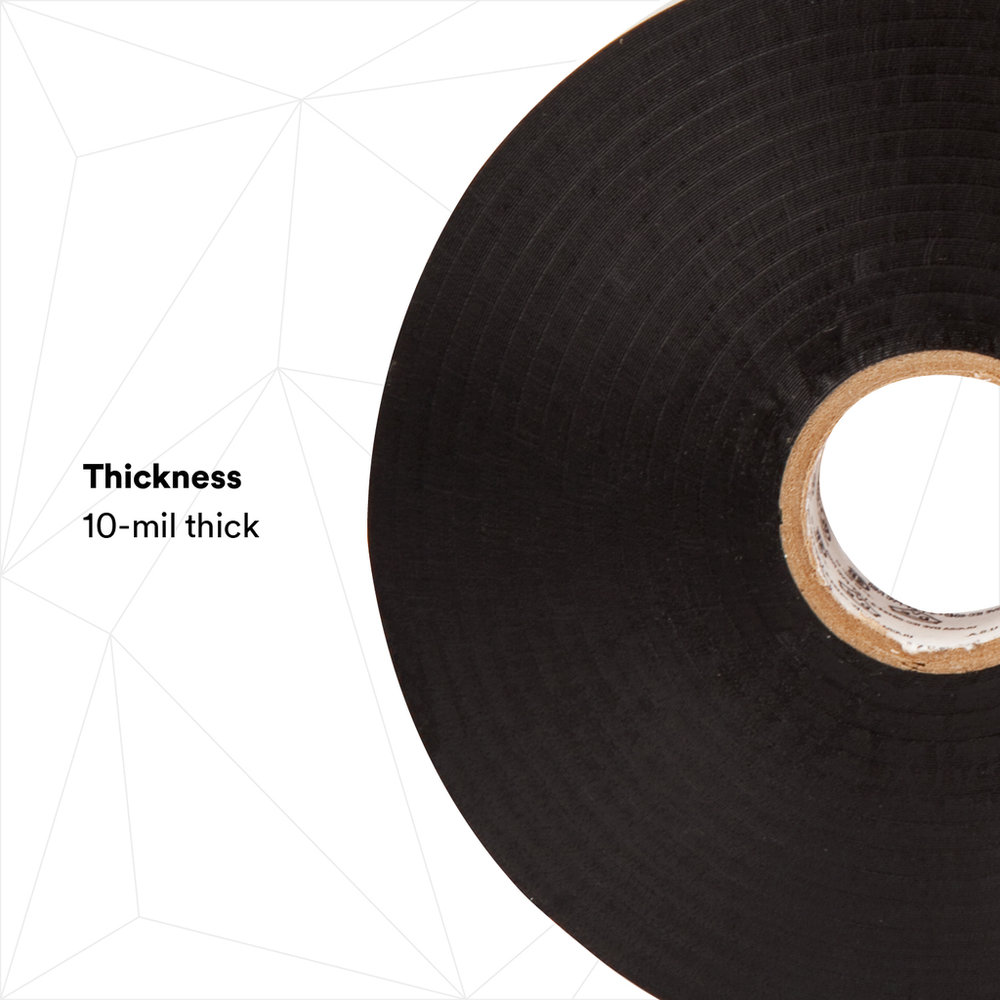

Scotch® Vinyl Electrical Tape 22 is a 10 mil thick, premium grade, heavy duty, vinyl electrical tape that's suitable for insulation applications requiring higher mechanical strength and abrasion resistance. The flame retardant tape is designed for low and high voltage bus applications and withstands a temperature range of 15 to 176 °F ( 10 to 80 °C).

Features

  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
  • Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
  • Withstands a temperature range of 15 to 176 °F (-10 to 80 °C)
  • UL Listed, ASTM Approved, VDE, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of durable PVC
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) MaterialPVC
ApplicationElectrical Maintenance; Insulation
Overall Length (Imperial)36.0
Shelf Life1825
Specifications MetCSA Certified, UL Listed
Overall Width (Imperial)0.75
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Celsius)80.0
Maximum Operating Temperature (Fahrenheit) UOMDegree

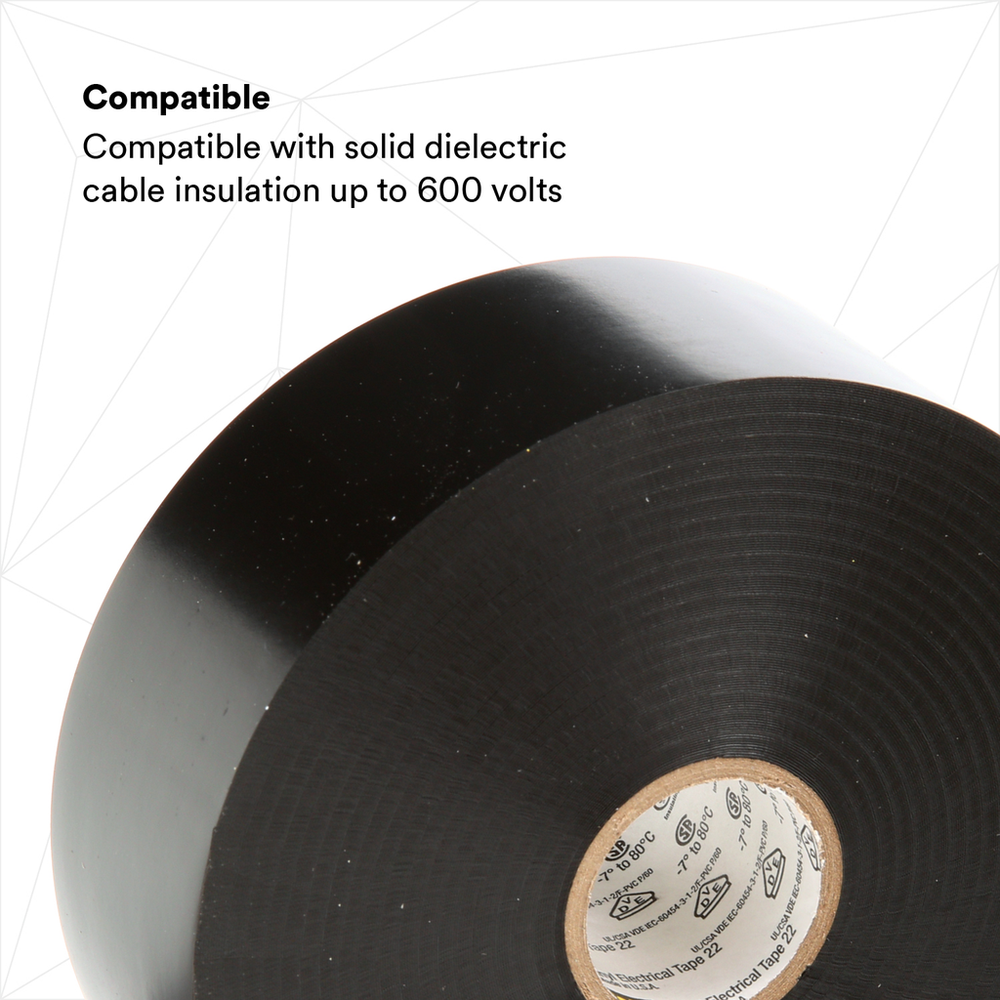

Voltage Rating600 V
Overall Length (Metric) UOMm
Adhesive TypeRubber
Shelf Life UOMYear
Minimum Operating Temperature (Celsius) UOMDegree
Elongation at Break200
Overall Length (Metric)32.9
Overall Width (Metric) UOMmm
Overall Width (Metric)19.0
Overall Length (Imperial) UOMin
Tape GradeProfessional
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)176.0
Minimum Operating Temperature (Celsius)-10.0
Overall Width (Imperial) UOMin
