3M Products & Supplies

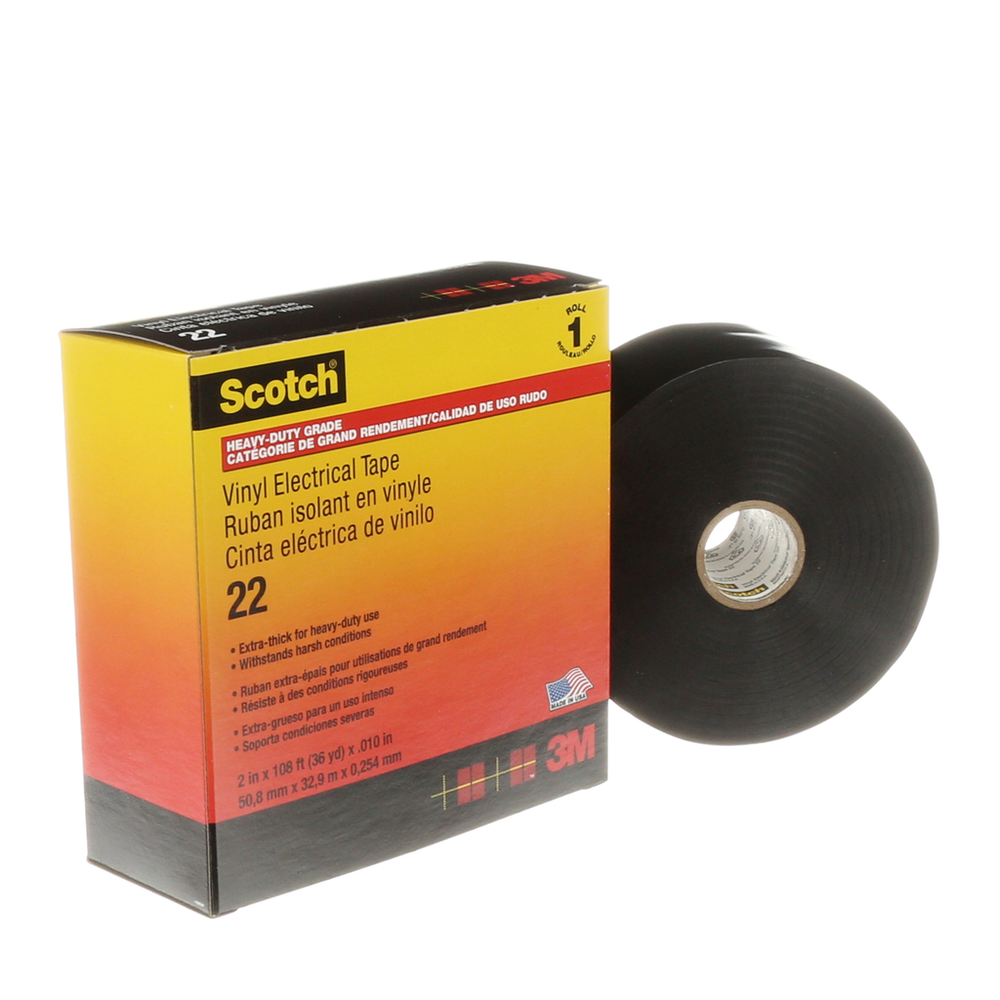

Scotch® Vinyl Electrical Tape 22, 2 in x 36 yd, Black, 1 roll/carton, 12 rolls/Case - 7000031346

Sold As: 12-Pack
SKU: 7000031346
MPN: 7000031346
For an accurate lead time please contact us
UPC: 00054007100676
3M ID: 80012017077
5 Digit UPC: 10067
$687.48 ($57.29 / Count)
Hurry up! Current stock:

Product Description

Scotch® Vinyl Electrical Tape 22 is a 10 mil thick, premium grade, heavy duty, vinyl electrical tape that's suitable for insulation applications requiring higher mechanical strength and abrasion resistance. The flame retardant tape is designed for low and high voltage bus applications and withstands a temperature range of 15 to 176 °F ( 10 to 80 °C).

Features

  • Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
  • UL Listed, ASTM Approved, VDE, CSA Certified and RoHS 2011/65/EU Compliant
  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
  • Withstands a temperature range of 15 to 176 °F (-10 to 80 °C)
  • Made of durable PVC
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-10.0
Tape GradeProfessional
Overall Width (Imperial)2.0
Shelf Life UOMYear
Voltage Rating600 V
Maximum Operating Temperature (Celsius) UOMDegree
Elongation at Break200
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)176.0
Overall Length (Imperial) UOMyd
Overall Width (Metric)50.0
ApplicationElectrical Maintenance; Insulation
Insulation Resistance> 10^6 megohms
Specifications MetCSA Certified, UL Listed
Backing (Carrier) MaterialPVC
Overall Width (Imperial) UOMin
Overall Length (Metric)32.9
Maximum Operating Temperature (Celsius)80.0
Adhesive TypeRubber
Overall Length (Imperial)36.0
Minimum Operating Temperature (Celsius) UOMDegree
