3M Products & Supplies

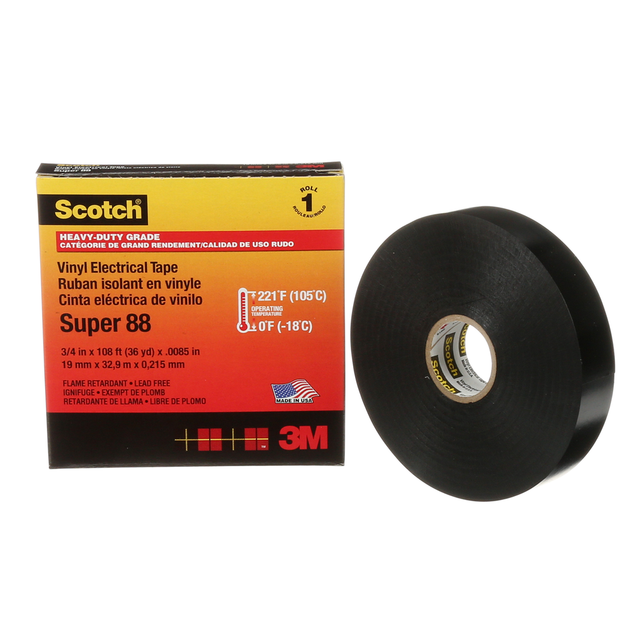

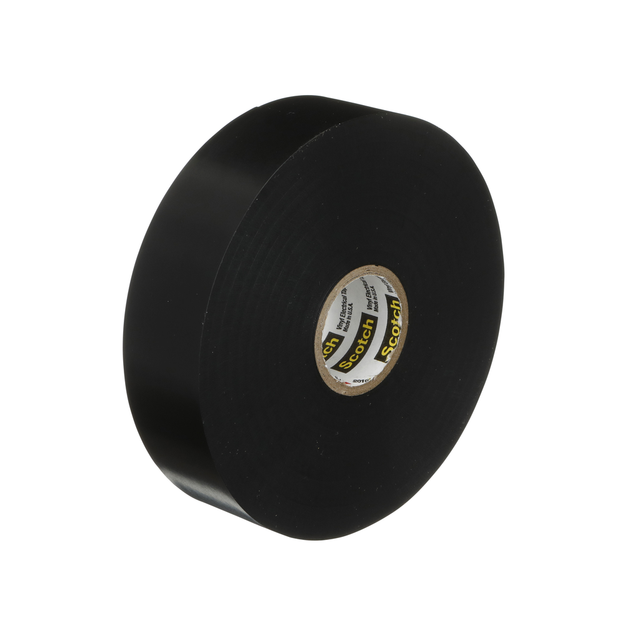

Scotch® Vinyl Electrical Tape Super 88, 2 in x 36 yd, Black, 12 rolls/Case - 7000006093

Sold As: 12-Pack
SKU: 7000006093
MPN: 7000006093
For an accurate lead time please contact us
UPC: 00054007103561
3M ID: 80610833883
5 Digit UPC: 10356
$524.13 ($43.68 / Count)
Hurry up! Current stock:

Product Description

Scotch® Vinyl Electrical Tape Super 88 is an all-weather, premium-grade tape created to provide a protective jacket and primary electrical insulation for splices up to 600V, with a total thickness of 8.5 mil (0.216 mm) when applied. The thickness of the tape broadens the range of applications, particularly heavy-duty operations. This tape is engineered with pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its strength and reliability, excelling in extreme indoor and outdoor conditions to help protect electrical conductors from UV exposure. Whether the application involves low-voltage primary or secondary insulation, cable jacketing, or mechanical protection and padding, Scotch® Vinyl Electrical Tape Super 88 offers excellent insulation and adhesion properties. Meeting the requirements for flame retardancy, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C) and is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90, IEC 60454-3-1-7/F-PVCP/90 Certified, and RoHS Compliant. Discover this tape for reliable environmental protection and performance.

Features

  • RELIABLE PERFORMANCE: Provides a protective jacket and primary electrical insulation for splices up to 600V in harsh indoor, extreme, and exposed outdoor applications
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • BUILT STRONG: Engineered with a rubber-resin adhesive, PVC backing, and heavy tape thickness for excellent electrical and mechanical protection that promotes faster build-up with fewer wraps
  • TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
  • MULTI-PURPOSE: Excels in low-voltage primary and secondary insulation, cable jacketing, mechanical protection, and padding

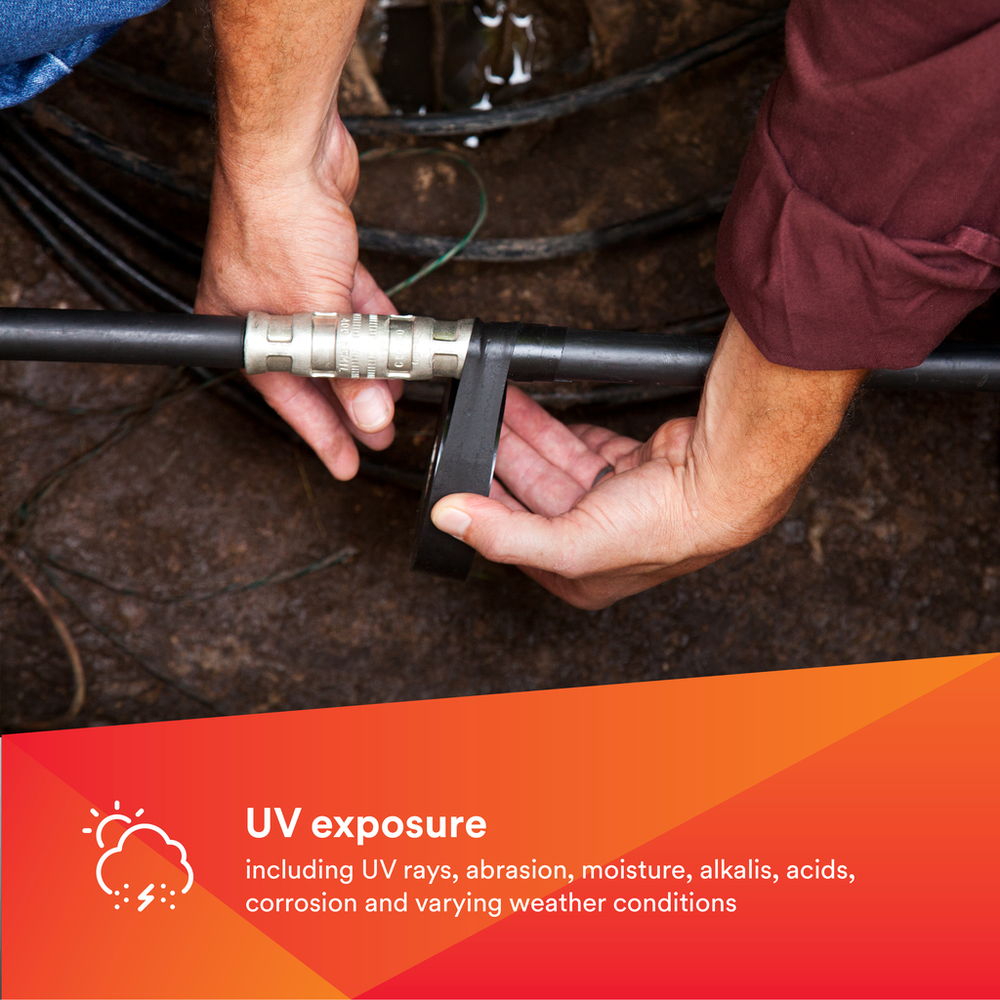

  • ENDURES THE ELEMENTS: Protects in extreme environments, making it a reliable solution for long-lasting performance
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Specifications MetCSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License
Total Tape Thickness without Liner (Imperial)8.0
Backing (Carrier) MaterialPVC
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)220.0
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break250
Overall Width (Metric)50.0
Total Tape Thickness without Liner (Metric)0.22
Overall Width (Imperial) UOMin
Overall Width (Imperial)2.0
Product CategoryElectrical Tapes
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric) UOMm
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Celsius)105.0
Minimum Operating Temperature (Celsius)-18.0
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
Overall Length (Metric)32.9
ApplicationElectrical Maintenance; Insulation
Voltage Rating600 V
Maximum Operating Temperature (Celsius) UOMDegree
