3M Products & Supplies

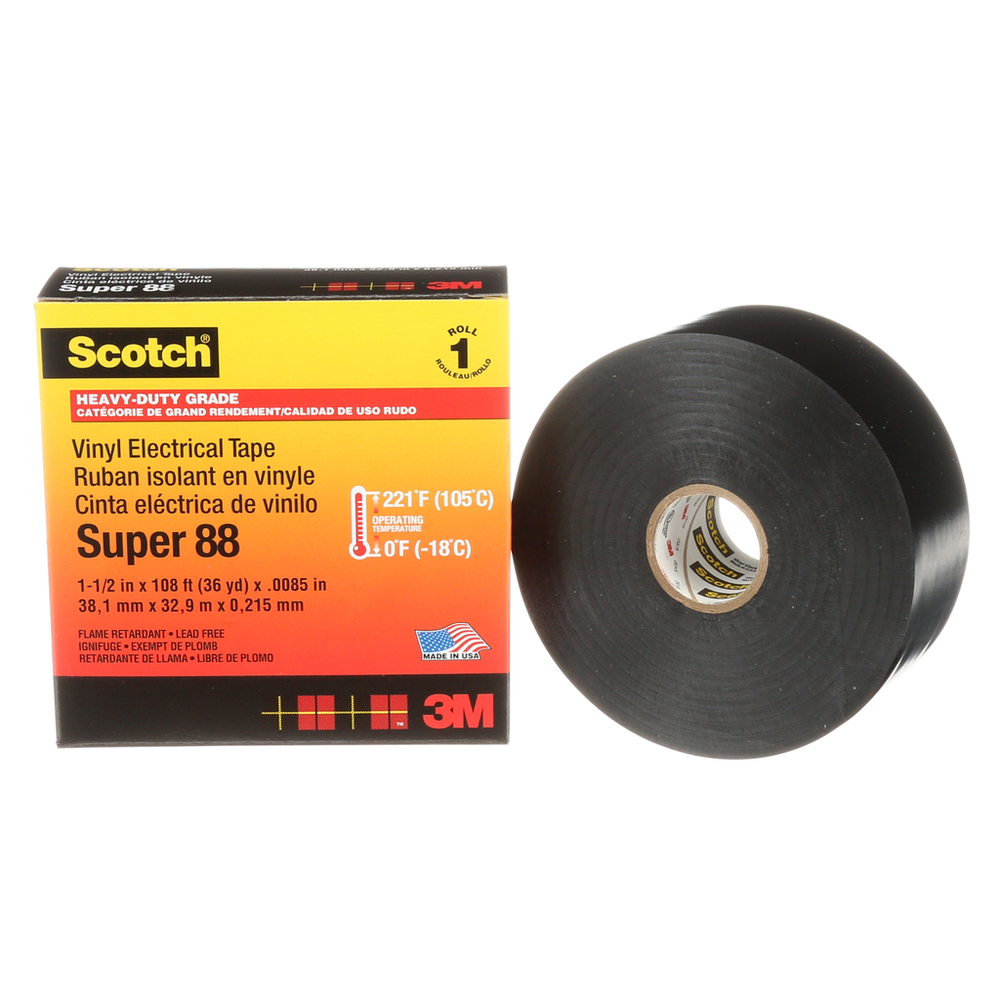

Scotch® Vinyl Electrical Tape Super 88, 1-1/2 in x 36 yd, Black, 12 rolls/Case - 7000031459

Sold As: 12-Pack
SKU: 7000031459
MPN: 7000031459
For an accurate lead time please contact us
UPC: 00054007103493
3M ID: 80610138986
5 Digit UPC: 10349
$392.96 ($32.75 / Count)
Hurry up! Current stock:

Product Description

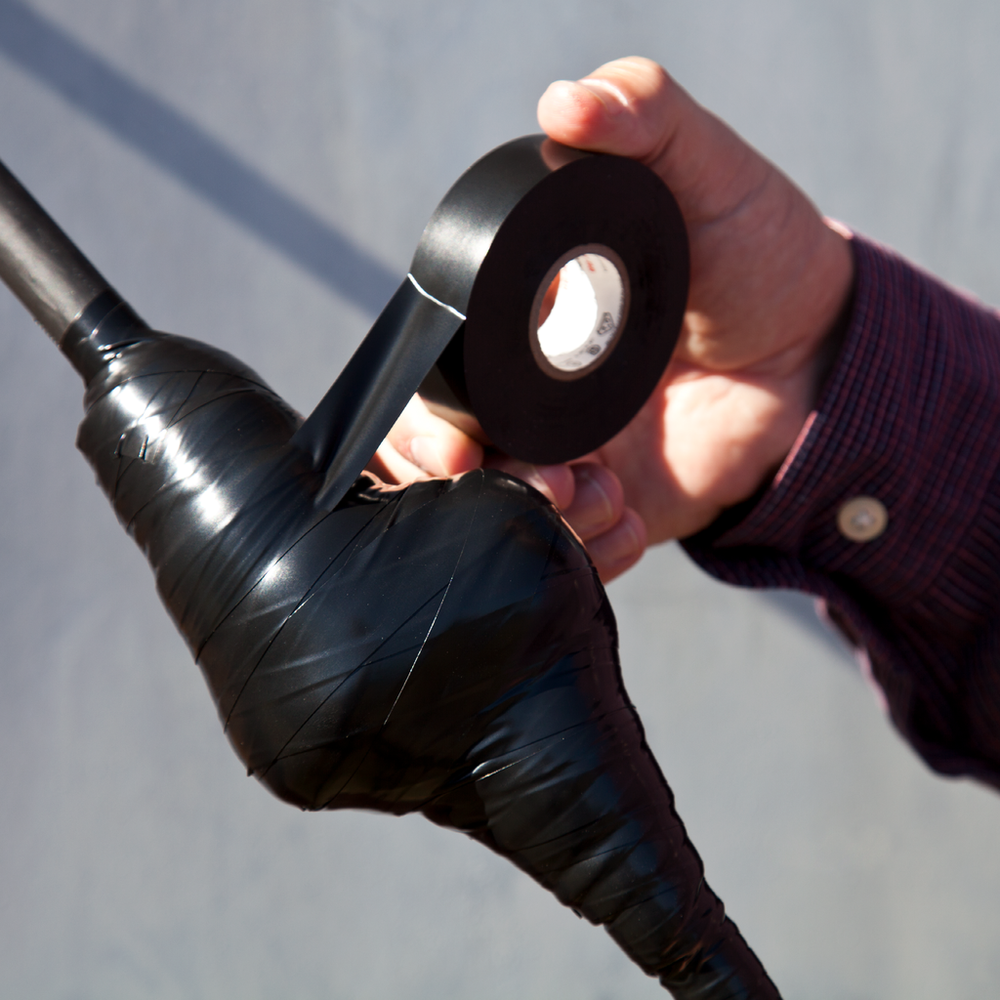

Scotch® Vinyl Electrical Tape Super 88 is an all-weather, premium-grade tape created to provide a protective jacket and primary electrical insulation for splices up to 600V, with a total thickness of 8.5 mil (0.216 mm) when applied. The thickness of the tape broadens the range of applications, particularly heavy-duty operations. This tape is engineered with pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its strength and reliability, excelling in extreme indoor and outdoor conditions to help protect electrical conductors from UV exposure. Whether the application involves low-voltage primary or secondary insulation, cable jacketing, or mechanical protection and padding, Scotch® Vinyl Electrical Tape Super 88 offers excellent insulation and adhesion properties. Meeting the requirements for flame retardancy, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C) and is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90, IEC 60454-3-1-7/F-PVCP/90 Certified, and RoHS Compliant. Discover this tape for reliable environmental protection and performance.

Features

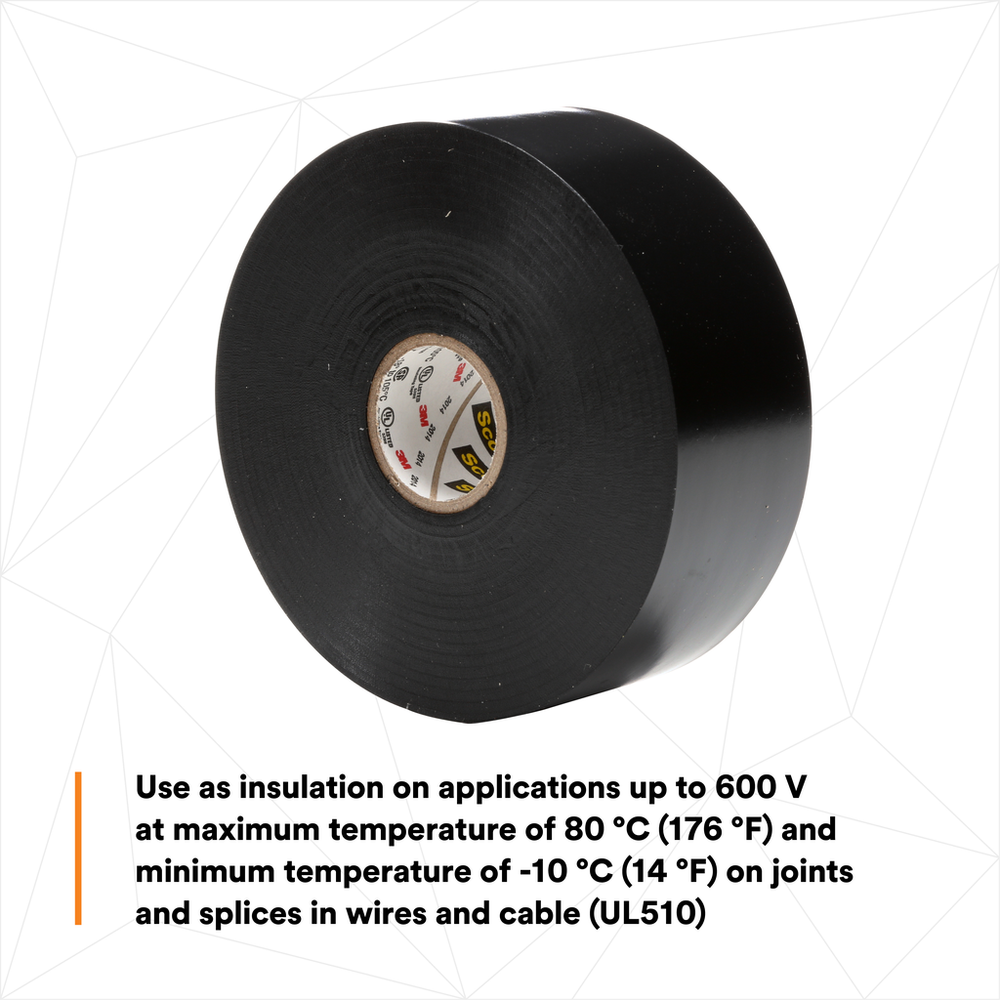

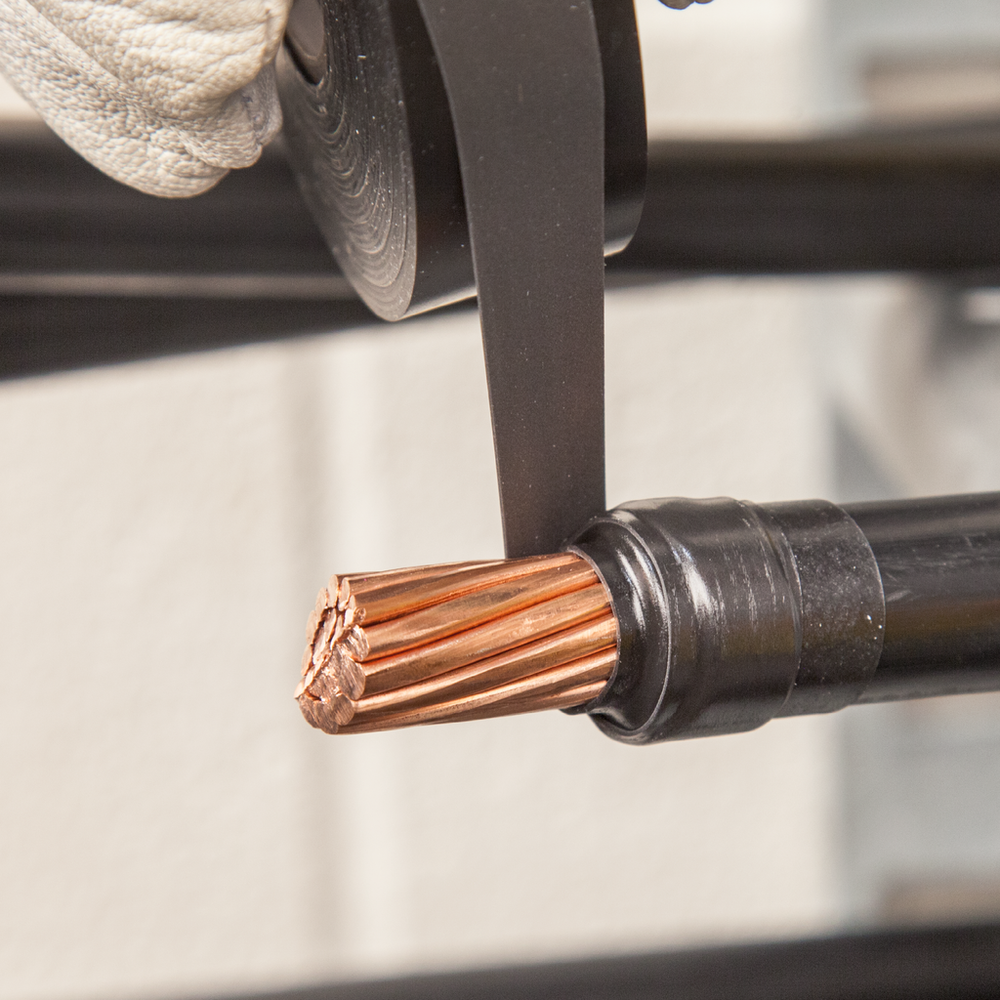

  • RELIABLE PERFORMANCE: Provides a protective jacket and primary electrical insulation for splices up to 600V in harsh indoor, extreme, and exposed outdoor applications
  • ENDURES THE ELEMENTS: Protects in extreme environments, making it a reliable solution for long-lasting performance

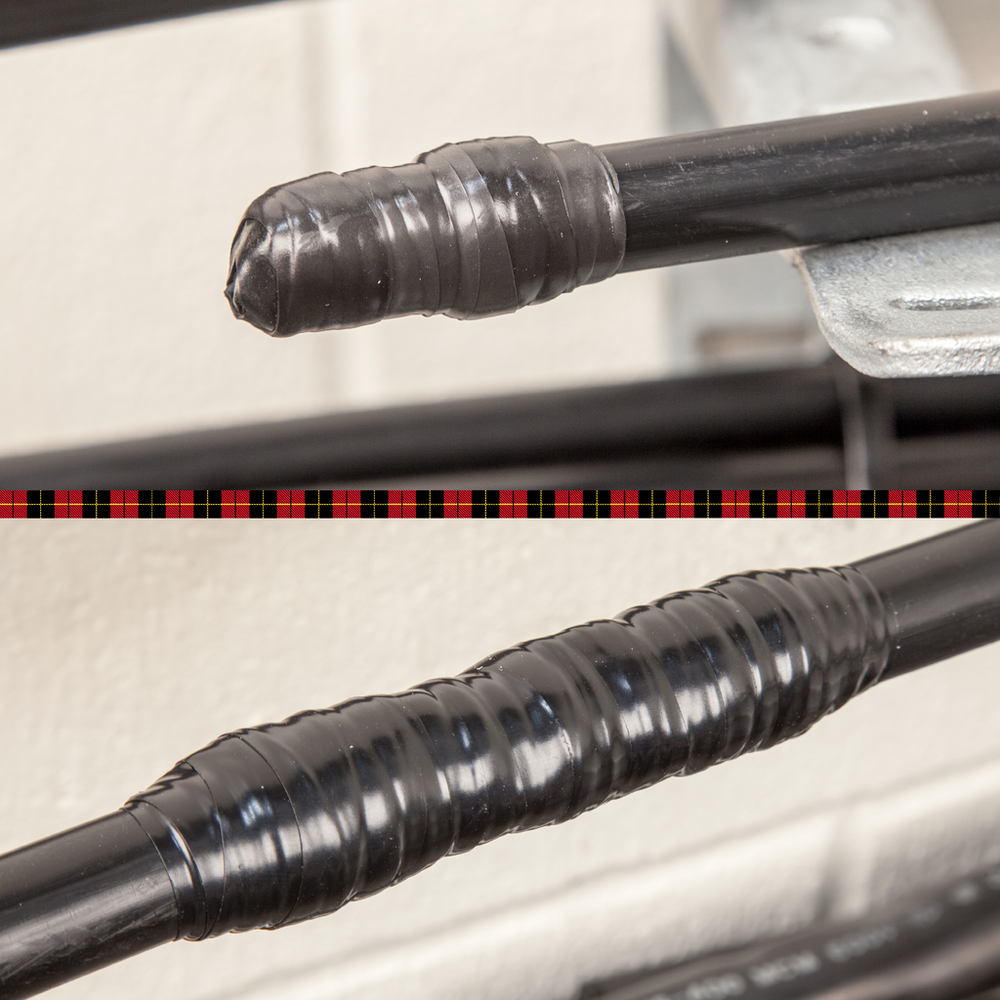

  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes

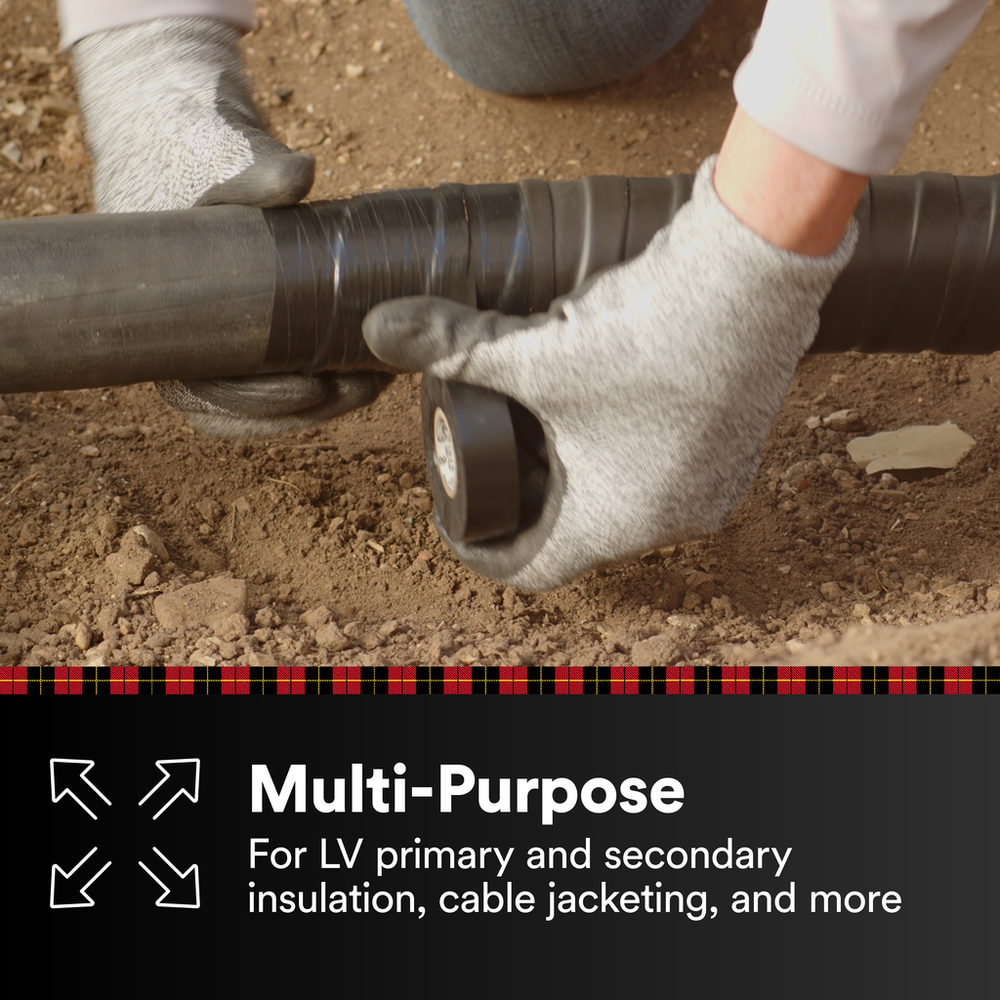

  • MULTI-PURPOSE: Excels in low-voltage primary and secondary insulation, cable jacketing, mechanical protection, and padding
  • BUILT STRONG: Engineered with a rubber-resin adhesive, PVC backing, and heavy tape thickness for excellent electrical and mechanical protection that promotes faster build-up with fewer wraps
  • TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationElectrical Maintenance; Insulation

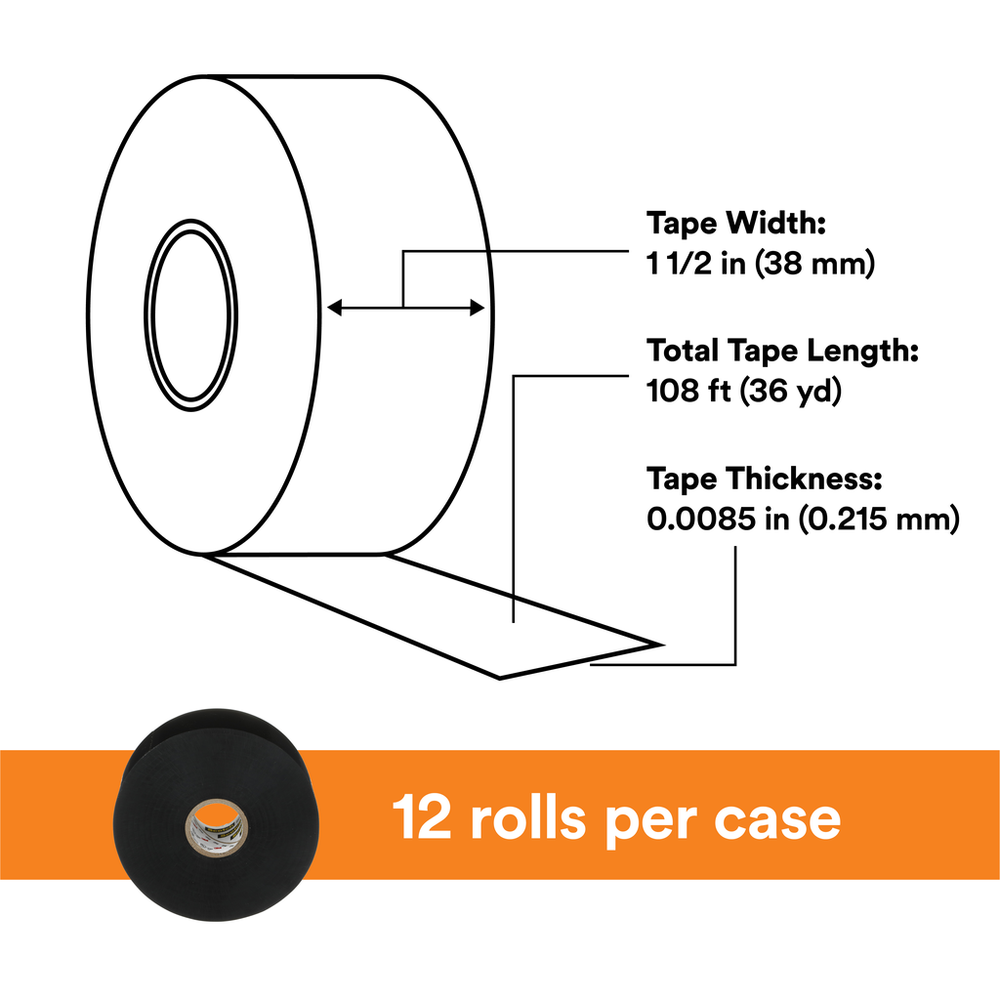

Total Tape Thickness without Liner (Metric)0.22
Backing (Carrier) MaterialPVC
Maximum Operating Temperature (Celsius)105.0
Shelf Life UOMYear
Overall Width (Imperial) UOMin
Specifications MetCSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License
Insulation Resistance> 10^6 megohms
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)38.0
Total Tape Thickness without Liner (Imperial)8.0
Total Tape Thickness without Liner (Metric) UOMmm
Product CategoryElectrical Tapes
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)220.0
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)32.9
Overall Width (Metric) UOMmm
Elongation at Break250
Overall Length (Imperial)36.0
Voltage Rating600 V
Overall Width (Imperial)1.5
Minimum Operating Temperature (Celsius)-18.0
Overall Length (Metric) UOMm
