3M Products & Supplies

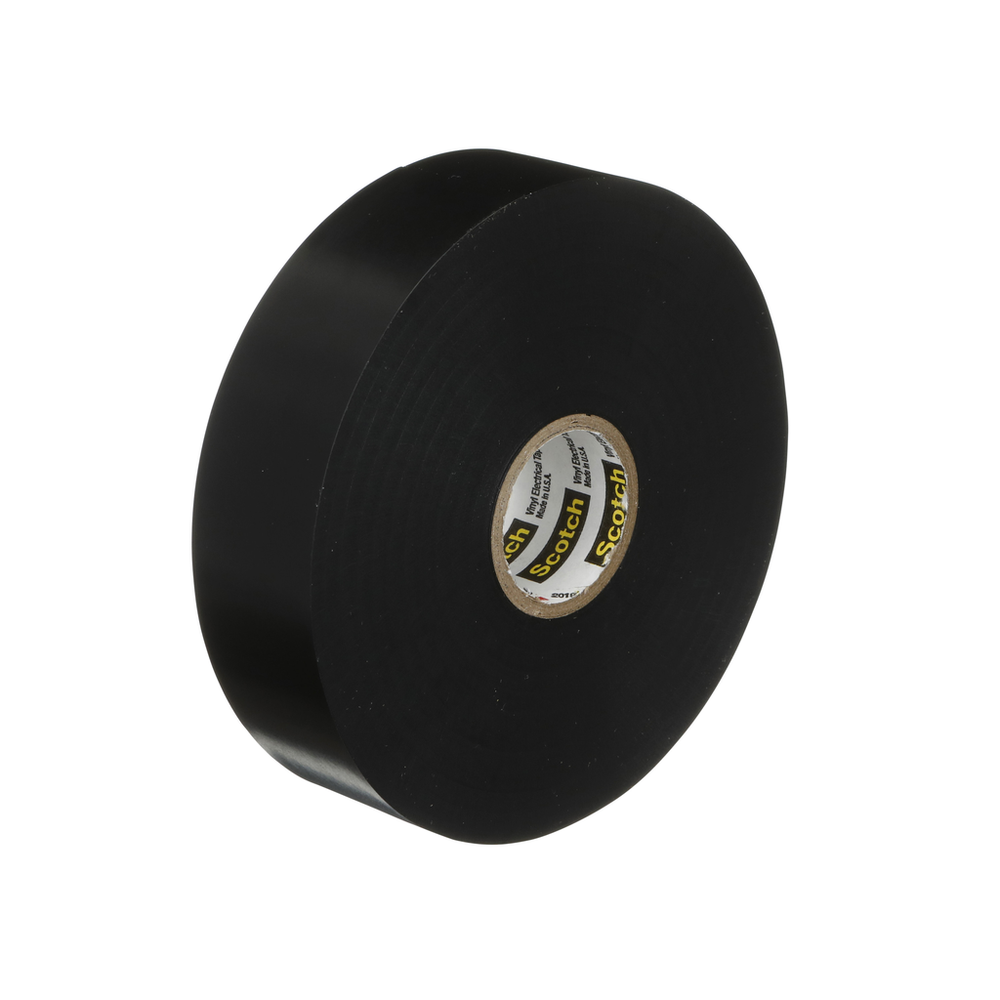

Scotch® Vinyl Electrical Tape Super 88, 1 in x 36 yd, Black, 12 rolls/carton, 48 rolls/Case - 7000057832

Sold As: 12-Pack
SKU: 7000057832
MPN: 7000057832
For an accurate lead time please contact us
UPC: 00054007103318
3M ID: 80610138978
5 Digit UPC: 10331
$270.78 ($22.56 / Count)
Hurry up! Current stock:

Product Description

Scotch® Vinyl Electrical Tape Super 88 is an 8.5 mil thick, premium grade, all weather tape that is designed to provide a protective jacket and primary electrical insulation for splices up to 600V. The flame retardant tape withstands a temperature range of 0 to 221 °F ( 18 to 105 °C).

Features

  • Made of durable PVC
  • Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
  • Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
  • Provides a protective jacket and electrical insulation for splices and cables
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

Insulation Resistance> 10^6 megohms
Overall Width (Metric)25.4 mm
Overall Width (Imperial)1 in
ApplicationElectrical Maintenance
Elongation at Break250%
Total Tape Thickness without Liner (Imperial)8 mil
Total Tape Thickness without Liner (Metric)0.22 mm
Minimum Operating Temperature (Celsius)-18 Degree Celsius
Maximum Operating Temperature (Fahrenheit)220 Degree Fahrenheit
Specifications MetUL Listed - CSA Certified - VDE Marks License - IEC 60454-3-1-7/F-PVC P/90
Voltage Rating600 V
Overall Length (Imperial)36 yd
Maximum Operating Temperature (Celsius)105 Degree Celsius
Overall Length (Metric)32.9 m
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Adhesive TypeRubber
Adhesion Strength28 oz/in
FamilyScotch® Vinyl Electrical Tape Super 88
Chemical ResistantYes
Tape ColorBlack
VulcanizingNo
UV ResistantYes
Adhesive MaterialBased adhesive rubber pressure sensitive
Self-extinguishingYes
Suitable for High VoltageNo
Product TypeVinyl Electrical Tapes
Tensile Strength (Metric)35 N/10mm
Adhesion to Steelen-CA: 28 oz./in. (3.0 N/10 mm) - en-US: 28 oz./in. (3.0 N/10 mm) - fr-CA: 28 oz./in. (3.0 N/10 mm)
Backing MaterialPolyvinyl Chloride - Vinyl
Breaking Strength (Imperial)20 lb/in
Tape Width (Metric)25.4 mm
Product FormRoll
Color FamilyBlack
Tape Length (Metric)32.9 m
UL ApprovalYes
Total Thickness0.22 mm
Tape GradePremium
Flame RetardantYes
