3M Products & Supplies

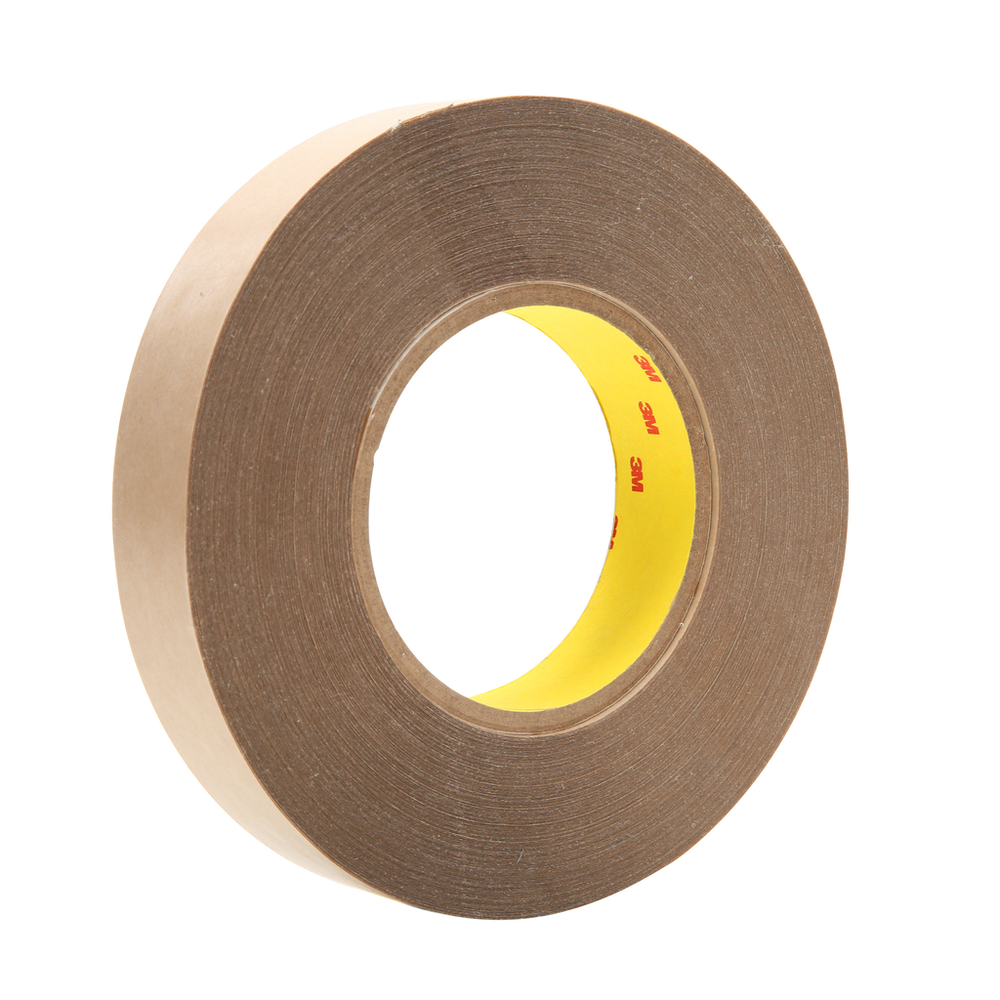

3M™ Adhesive Transfer Tape 9485PC, Clear, 3/4 in x 180 yd, 5 mil, 12 Roll/Case - 7010373755

Sold As: 12-Pack
SKU: 7010373755
MPN: 7010373755
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115235948
3M ID: 70006413705
5 Digit UPC: 23594
$1,543.04 ($128.59 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • Low odor to help improve working environment conditions
  • Offers resistance to humidity, water, solvent, and chemicals

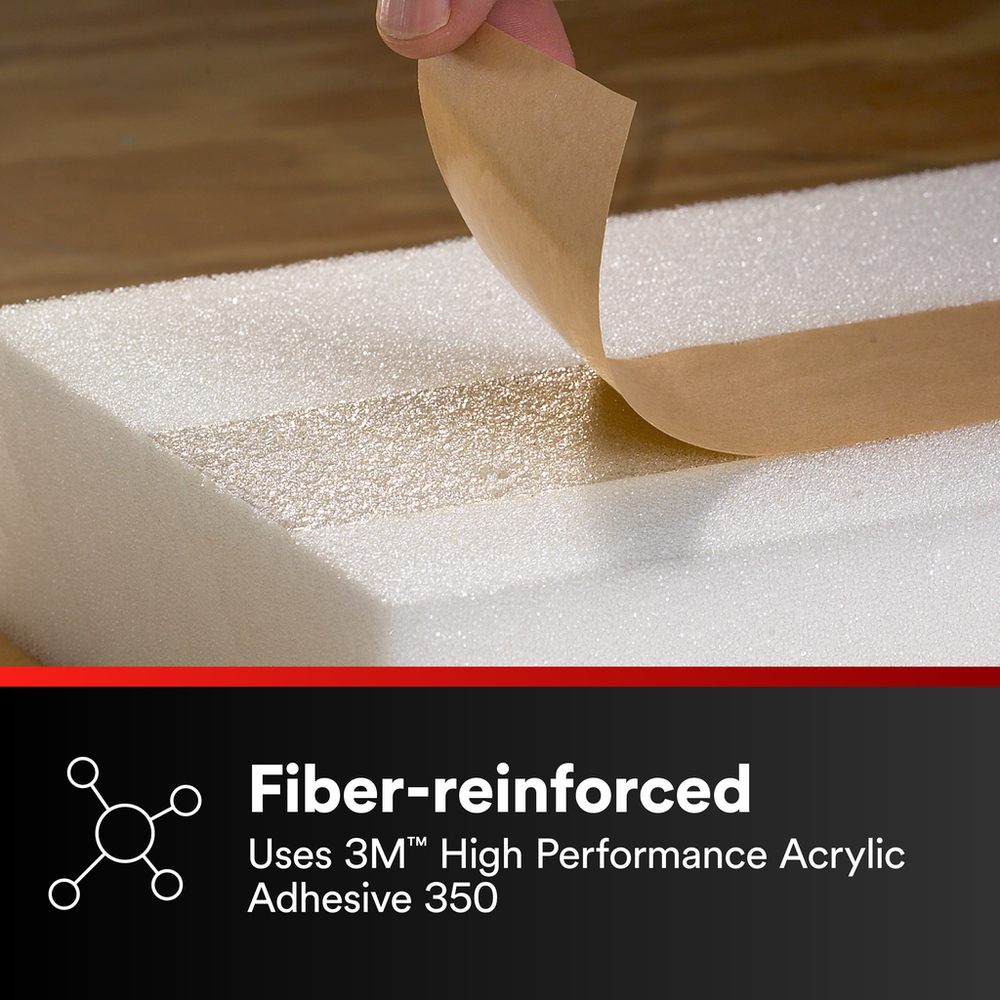

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Adhesive TypeHigh Performance Acrylic Adhesive 350
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)149.0
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial)4.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Number of Adhesive SidesDouble-sided
Overall Width (Metric)19.05
Product ColorTranslucent
Total Tape Thickness without Liner (Imperial)5.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Metric) UOMmm
Primary Liner ColorTan
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.11
Units per Case12.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-40.0
Units per Case UOMRoll
Secondary Liner ColorTan
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Imperial) UOMmil
Secondary Liner58# Polycoated Kraft Paper
Overall Length (Imperial)180.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.75
Overall Length (Metric)164.59
Shelf Life UOMMonth
