3M Products & Supplies

3M™ Adhesive Transfer Tape 9485PC, Clear, 48 in x 180 yd, 5 mil, 1 Roll/Case - 7000123751

SKU: 7000123751
MPN: 7000123751
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200379104
3M ID: 70006227469
5 Digit UPC: 37910
$8,229.54 each
Hurry up! Current stock:

Product Description

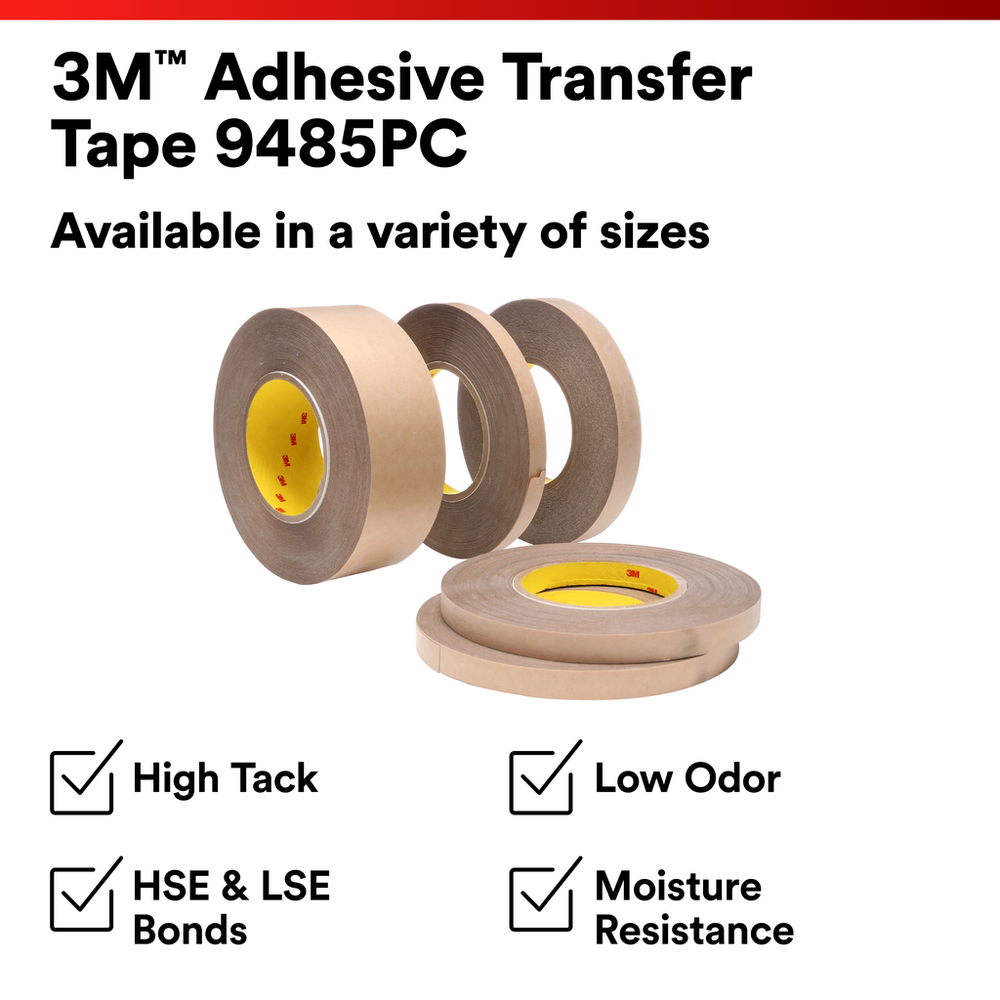

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Offers resistance to humidity, water, solvent, and chemicals
  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Low odor to help improve working environment conditions
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Secondary Liner ColorTan
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)48.0
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case1.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Primary Liner Thickness (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Total Tape Thickness without Liner (Imperial)5.0
Total Tape Thickness without Liner (Metric)0.127
Adhesive TypeHigh Performance Acrylic Adhesive 350
Overall Length (Metric) UOMm
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric)0.11
Primary Liner Thickness (Imperial)4.5
Primary Liner ColorTan
Overall Width (Metric)1219.2
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)164.59
Total Tape Thickness without Liner (Imperial) UOMmil
Secondary Liner58# Polycoated Kraft Paper
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric) UOMmm
Overall Length (Imperial)180.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorTranslucent
Primary Liner Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)149.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
