3M Products & Supplies

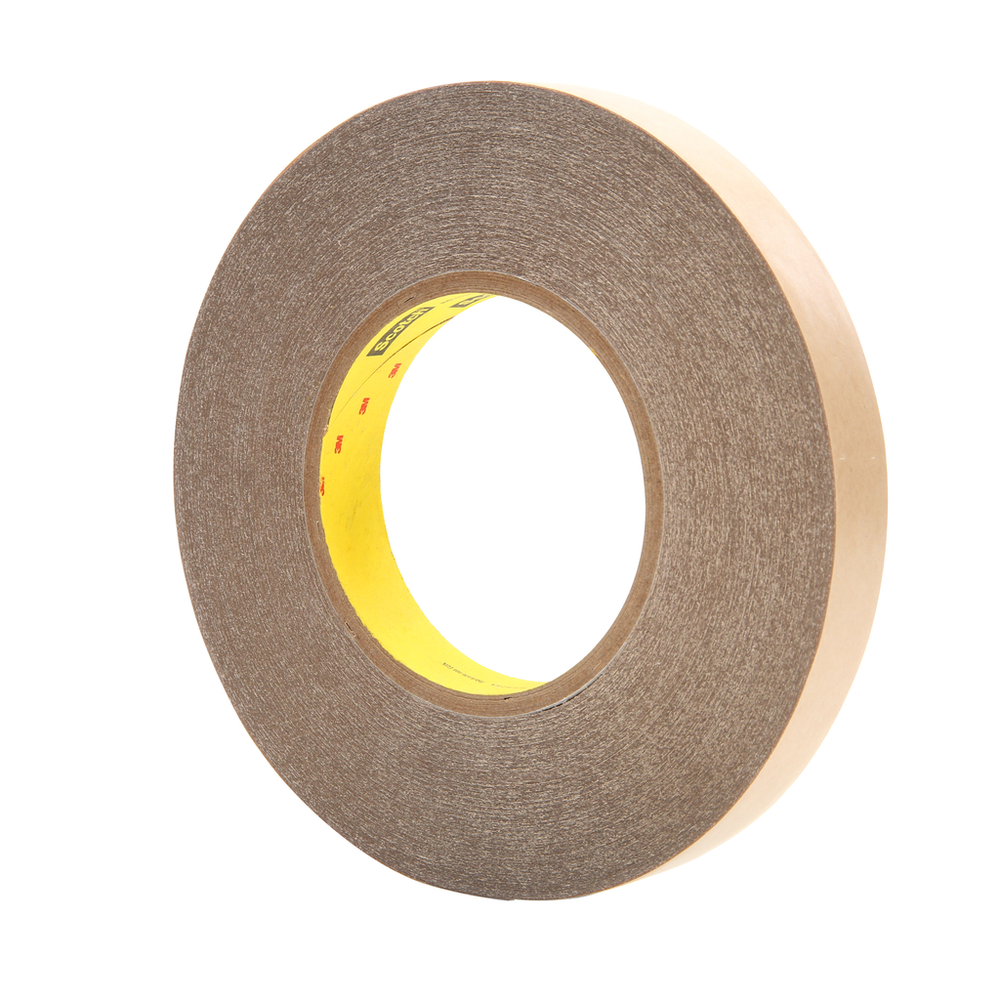

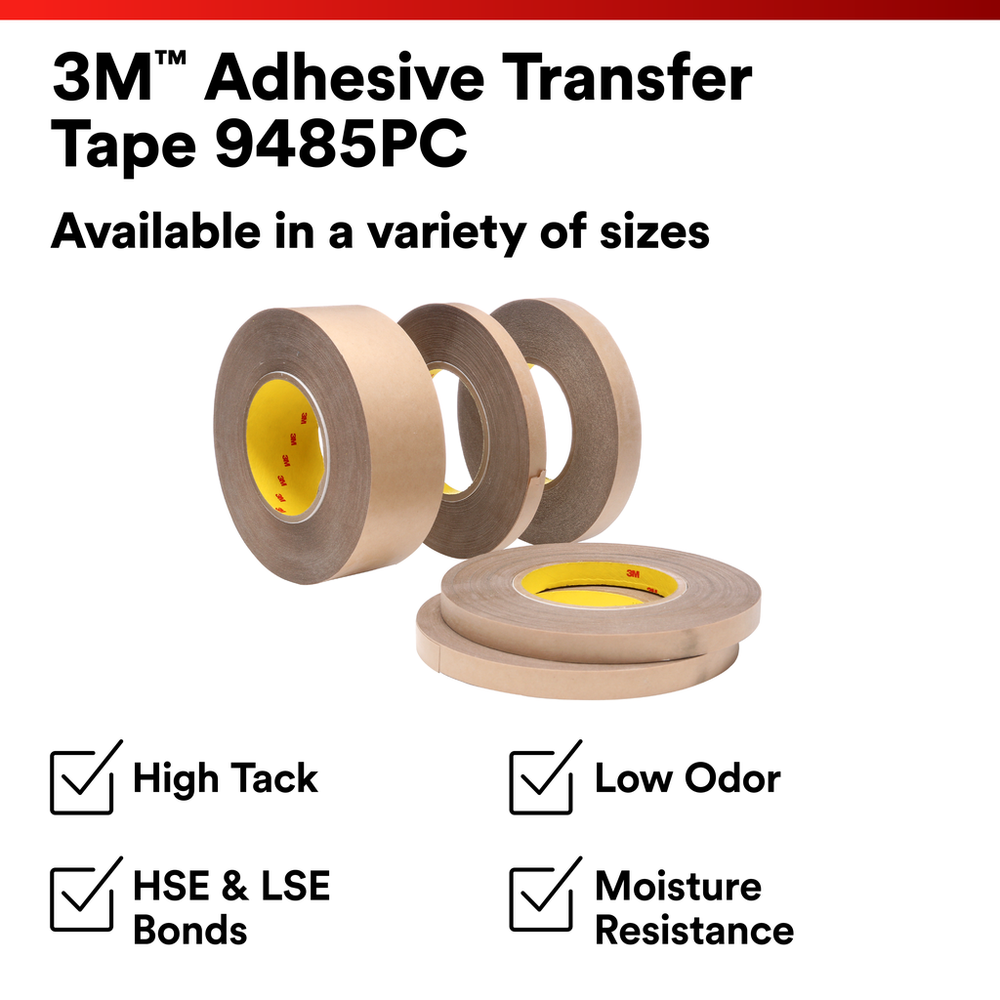

3M™ Adhesive Transfer Tape 9485PC, Clear, 3/4 in x 60 yd, 5 mil, 48 Roll/Case - 7000123385

Sold As: 48-Pack
SKU: 7000123385
MPN: 7000123385
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200672330
3M ID: 70006091162
5 Digit UPC: 67233
$2,057.38 ($42.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Offers resistance to humidity, water, solvent, and chemicals
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles

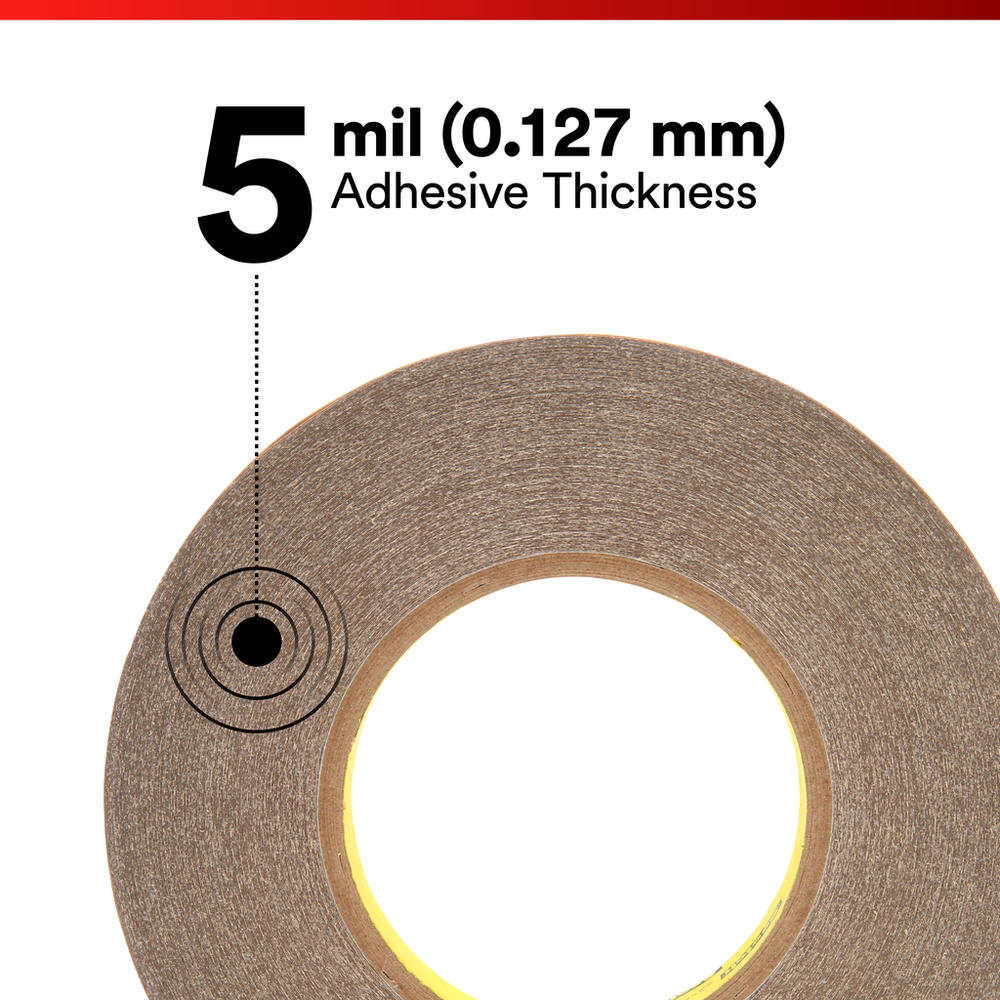

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Low odor to help improve working environment conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial)4.5
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius)149.0
Secondary Liner ColorTan
Units per Case UOMRoll
Primary Liner ColorTan
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Total Tape Thickness without Liner (Metric)0.127
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.75
Overall Length (Imperial)60.0
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)54.86
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeHigh Performance Acrylic Adhesive 350
Product ColorTranslucent
Secondary Liner58# Polycoated Kraft Paper
Units per Case48.0
Primary Liner Thickness (Metric)0.11
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Overall Width (Metric) UOMmm
Overall Width (Metric)19.05
Total Tape Thickness without Liner (Metric) UOMmm
