3M Products & Supplies

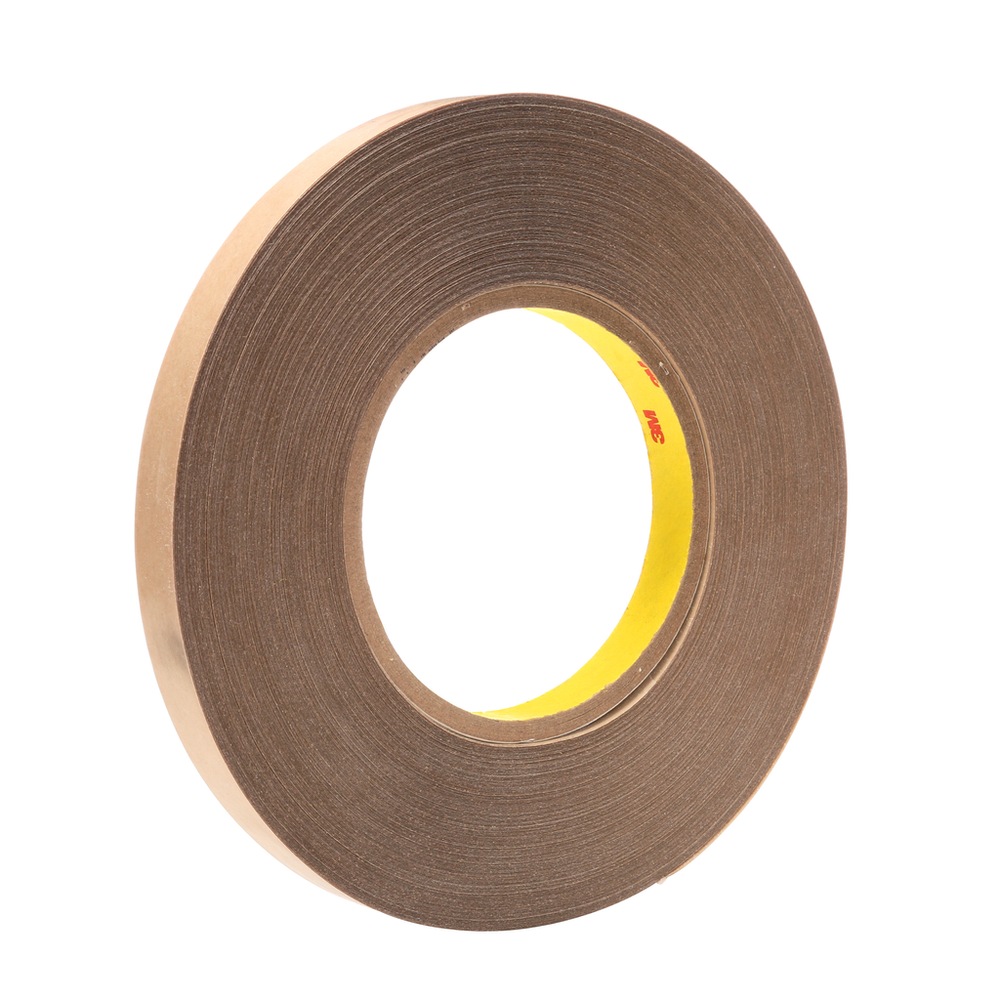

3M™ Adhesive Transfer Tape 9485PC, Clear, 3/8 in x 60 yd, 5 mil, 96 Roll/Case - 7000048828

Sold As: 96-Pack
SKU: 7000048828
MPN: 7000048828
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407840
3M ID: 70006255676
5 Digit UPC: 40784
$2,057.39 ($21.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Offers resistance to humidity, water, solvent, and chemicals
  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Low odor to help improve working environment conditions
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric)9.398
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner ColorTan
Overall Length (Metric)54.86
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Number of Adhesive SidesDouble-sided
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Secondary Liner ColorTan
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Primary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Imperial)5.0
Units per Case UOMRoll
Primary Liner Thickness (Imperial)4.5
Shelf Life UOMMonth
Units per Case96.0
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Product ColorTranslucent
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Adhesive TypeHigh Performance Acrylic Adhesive 350
Overall Length (Imperial) UOMyd
Overall Length (Imperial)60.0
Maximum Operating Temperature (Celsius)149.0
Overall Width (Imperial)0.37
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
