3M Products & Supplies

3M™ Adhesive Transfer Tape 9485PC, Clear, 4 in x 60 yd, 5 Mil, 8/Case - 7010292970

Sold As: 8-Pack
SKU: 7010292970
MPN: 7010292970
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407857
3M ID: 70006255684
5 Digit UPC: 40785
$1,828.79 ($228.60 / Count)
Hurry up! Current stock:

Product Description

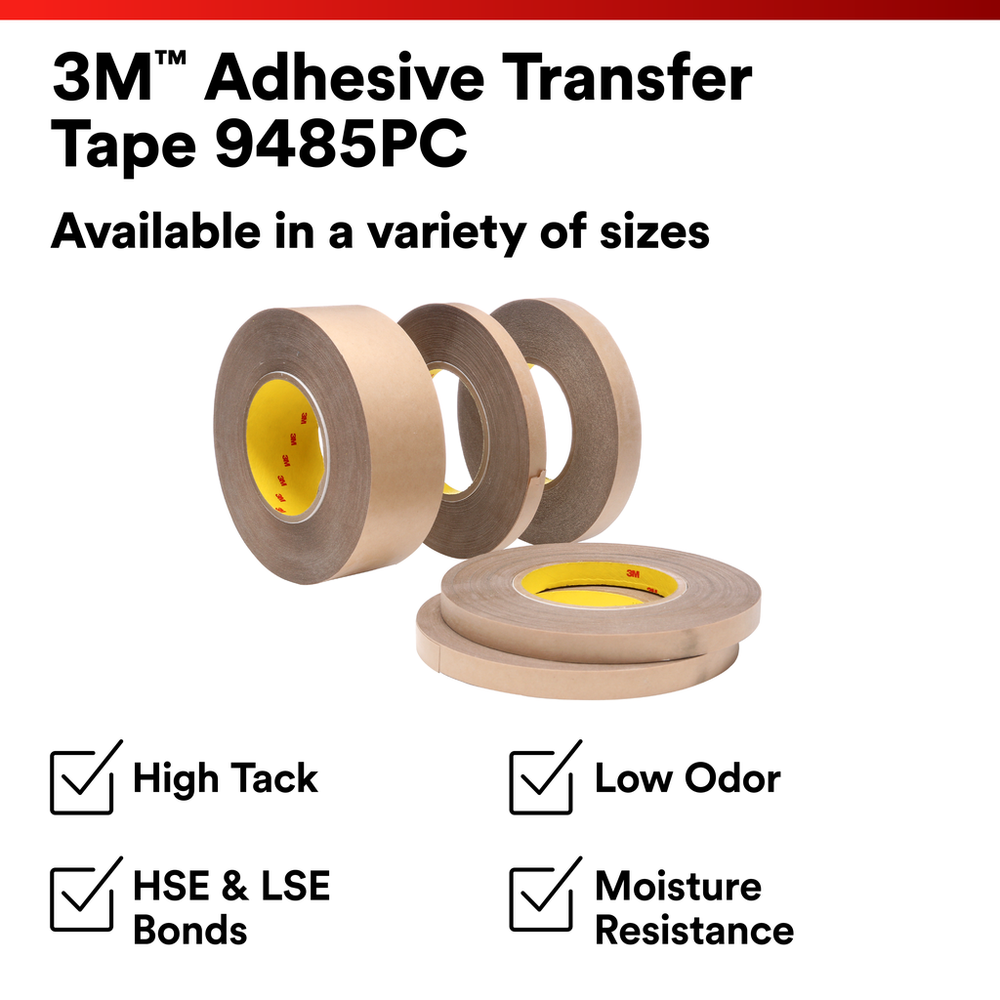

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Offers resistance to humidity, water, solvent, and chemicals
  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC

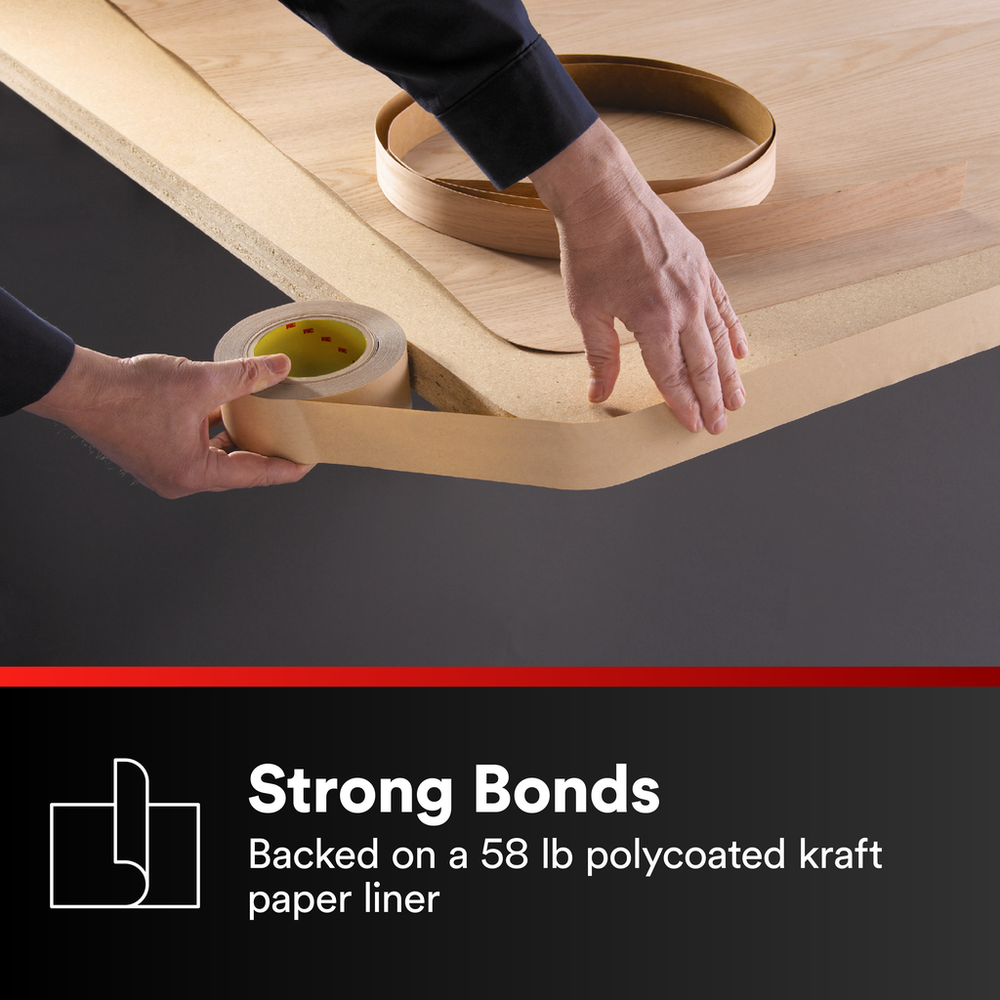

  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • Low odor to help improve working environment conditions

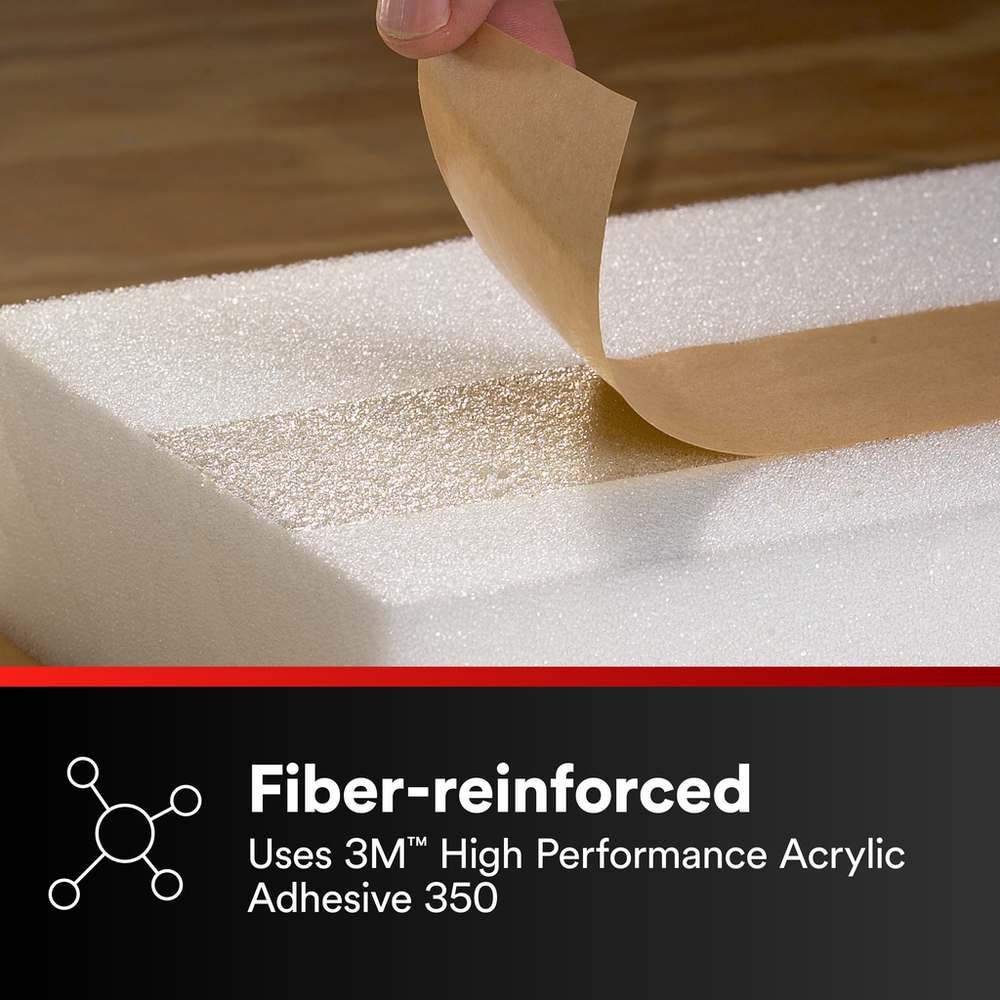

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.127
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-40.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Minimum Operating Temperature (Fahrenheit)-40.0
Indoor/OutdoorIndoor/Outdoor
Primary Liner ColorTan
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Secondary Liner58# Polycoated Kraft Paper
Units per Case8.0
Product ColorTranslucent
Overall Length (Metric)54.86
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Celsius) UOMDegree
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Overall Width (Metric)101.6
Secondary Liner ColorTan
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Metric) UOMmm
Shelf Life UOMMonth
Adhesive TypeHigh Performance Acrylic Adhesive 350
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Units per Case UOMRoll
Primary Liner Thickness (Metric)0.11
Overall Length (Imperial)60.0
Overall Width (Imperial)4.0
Number of Adhesive SidesDouble-sided
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial)4.5
