3M Products & Supplies

3M™ Adhesive Transfer Tape 9485PC, Clear, 6 in x 60 yd, 5 Mil, 8/Case - 7010372835

Sold As: 8-Pack
SKU: 7010372835
MPN: 7010372835
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407864
3M ID: 70006255692
5 Digit UPC: 40786
$2,743.18 ($342.90 / Count)
Hurry up! Current stock:

Product Description

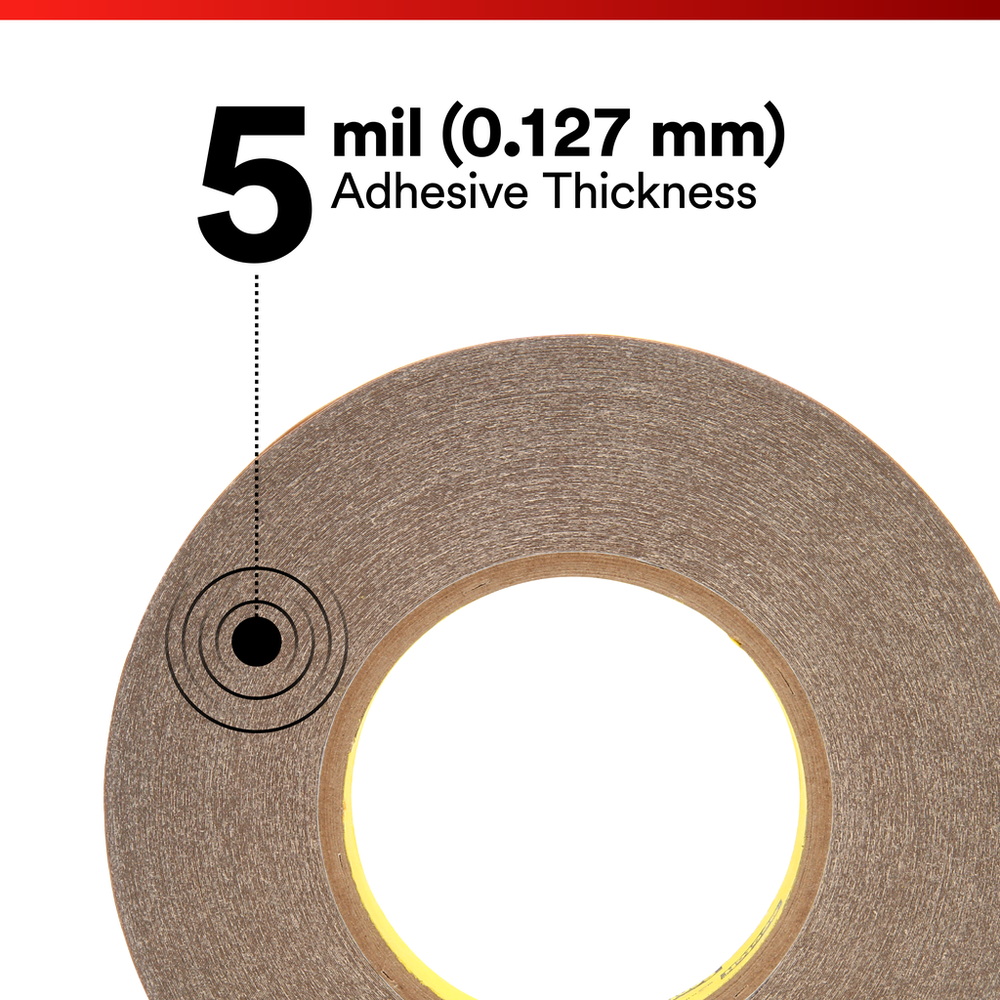

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • Low odor to help improve working environment conditions
  • Offers resistance to humidity, water, solvent, and chemicals
  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial) UOMin
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Overall Width (Imperial)6.0
Total Tape Thickness without Liner (Imperial) UOMmil
Secondary Liner ColorTan
Primary Liner Thickness (Metric) UOMmm
Product ColorTranslucent
Primary Liner Thickness (Imperial)4.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.11
Units per Case UOMRoll
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Total Tape Thickness without Liner (Metric)0.127
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case8.0
Overall Width (Metric)152.4
Adhesive TypeHigh Performance Acrylic Adhesive 350
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)149.0
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)54.86
Overall Length (Metric) UOMm
Overall Length (Imperial)60.0
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial) UOMyd
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Secondary Liner58# Polycoated Kraft Paper
Overall Width (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Shelf Life UOMMonth
Primary Liner ColorTan
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial) UOMmil
