3M Products & Supplies

3M™ Adhesive Transfer Tape 9485PC, Clear, 36 in x 60 yd, 5 Mil, 1/Case - 7010372834

SKU: 7010372834
MPN: 7010372834
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407833
3M ID: 70006255668
5 Digit UPC: 40783
$2,057.39 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles

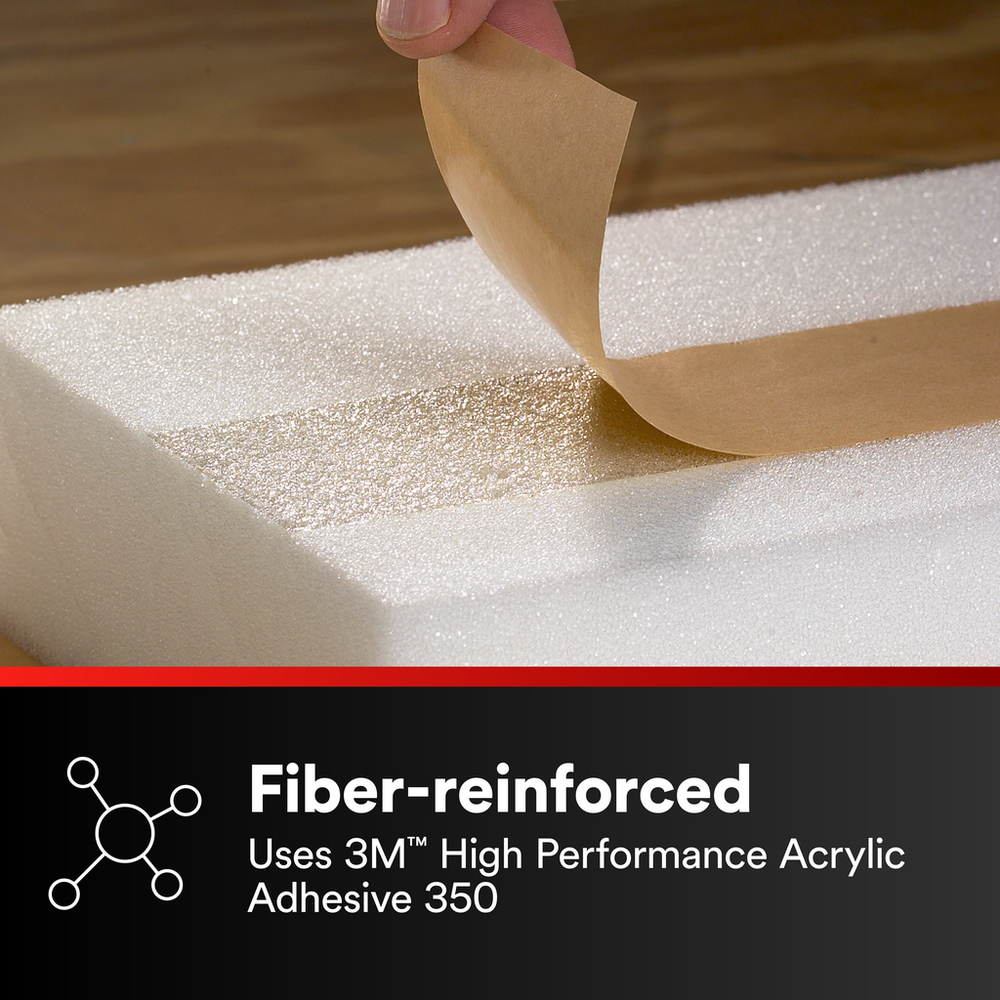

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Offers resistance to humidity, water, solvent, and chemicals

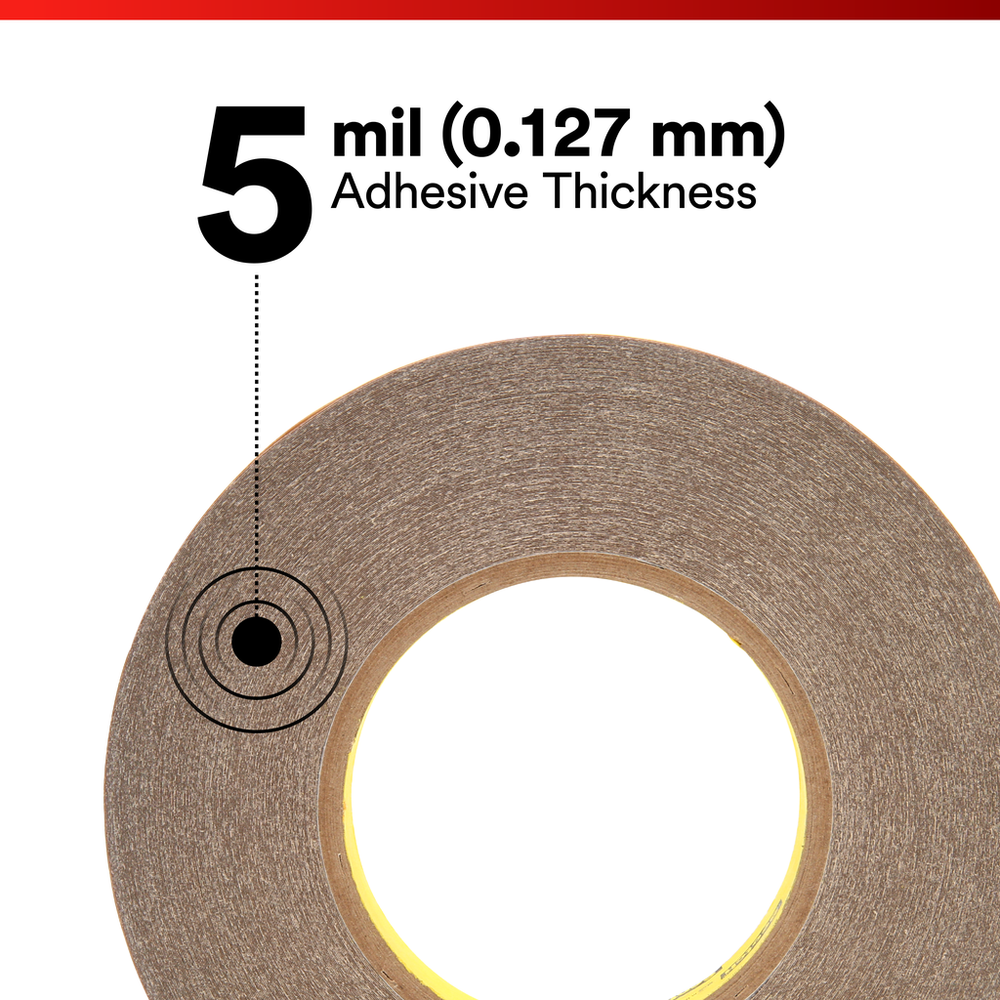

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Low odor to help improve working environment conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial) UOMin
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)36.0
Adhesive TypeHigh Performance Acrylic Adhesive 350
Total Tape Thickness without Liner (Metric)0.127
Secondary Liner ColorTan
Number of Adhesive SidesDouble-sided
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Secondary Liner58# Polycoated Kraft Paper
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Primary Liner ColorTan
Primary Liner Thickness (Imperial)4.5
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)5.0
Primary Liner Thickness (Metric)0.11
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)60.0
Product ColorTranslucent
Overall Width (Metric)914.4
Maximum Operating Temperature (Fahrenheit)300.0
Shelf Life UOMMonth
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Overall Length (Metric)54.86
Units per Case1.0
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)149.0
