3M Products & Supplies

3M™ Adhesive Transfer Tape 9485PC, Clear, 24 in x 60 yd, 5 Mil, 1/Case - 7010335508

SKU: 7010335508
MPN: 7010335508
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200003295
3M ID: 70006705837
5 Digit UPC: 329
$1,371.25 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Low odor to help improve working environment conditions
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Offers resistance to humidity, water, solvent, and chemicals

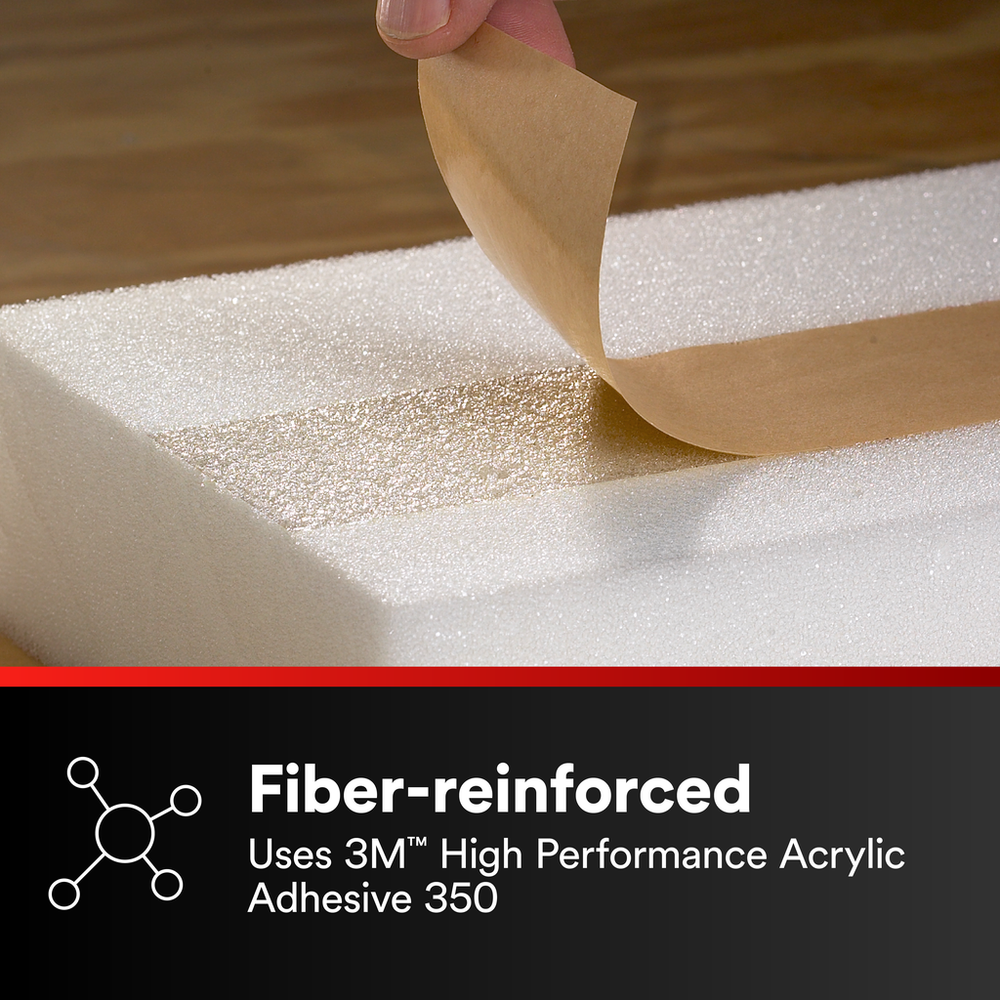

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing

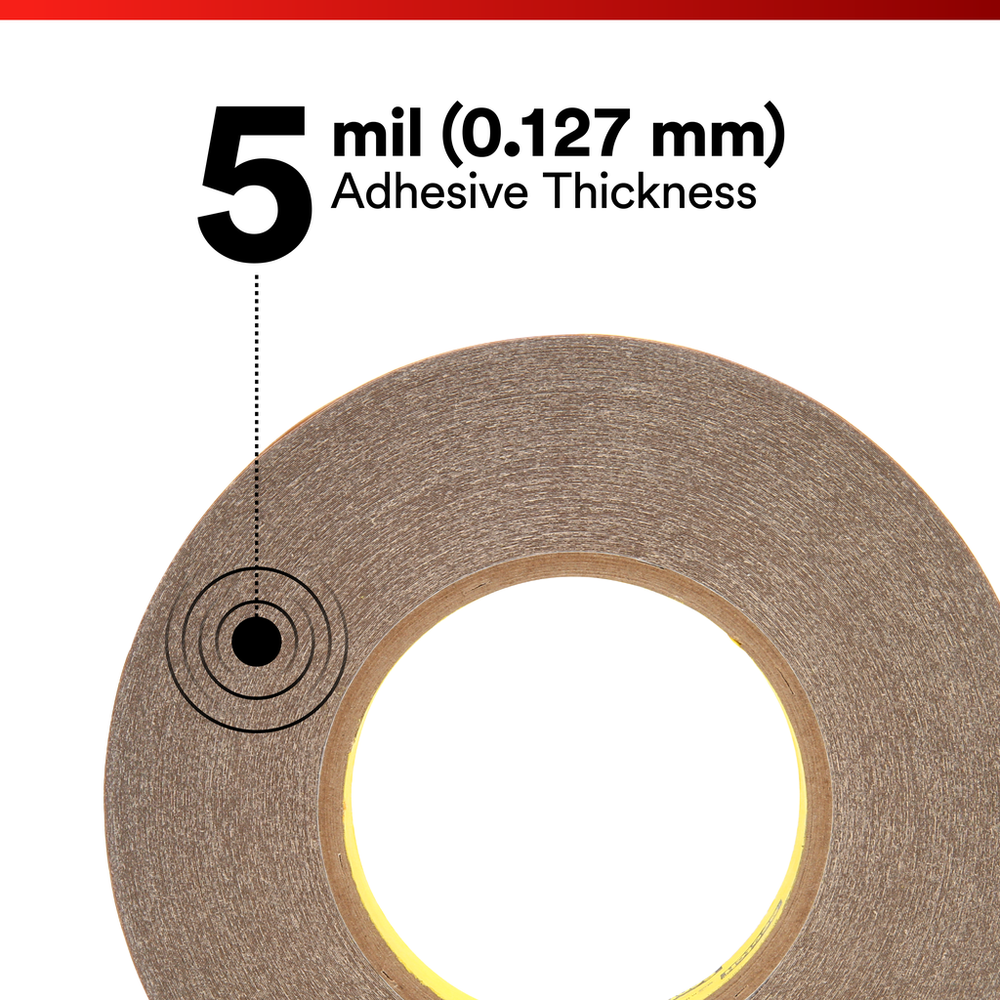

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC

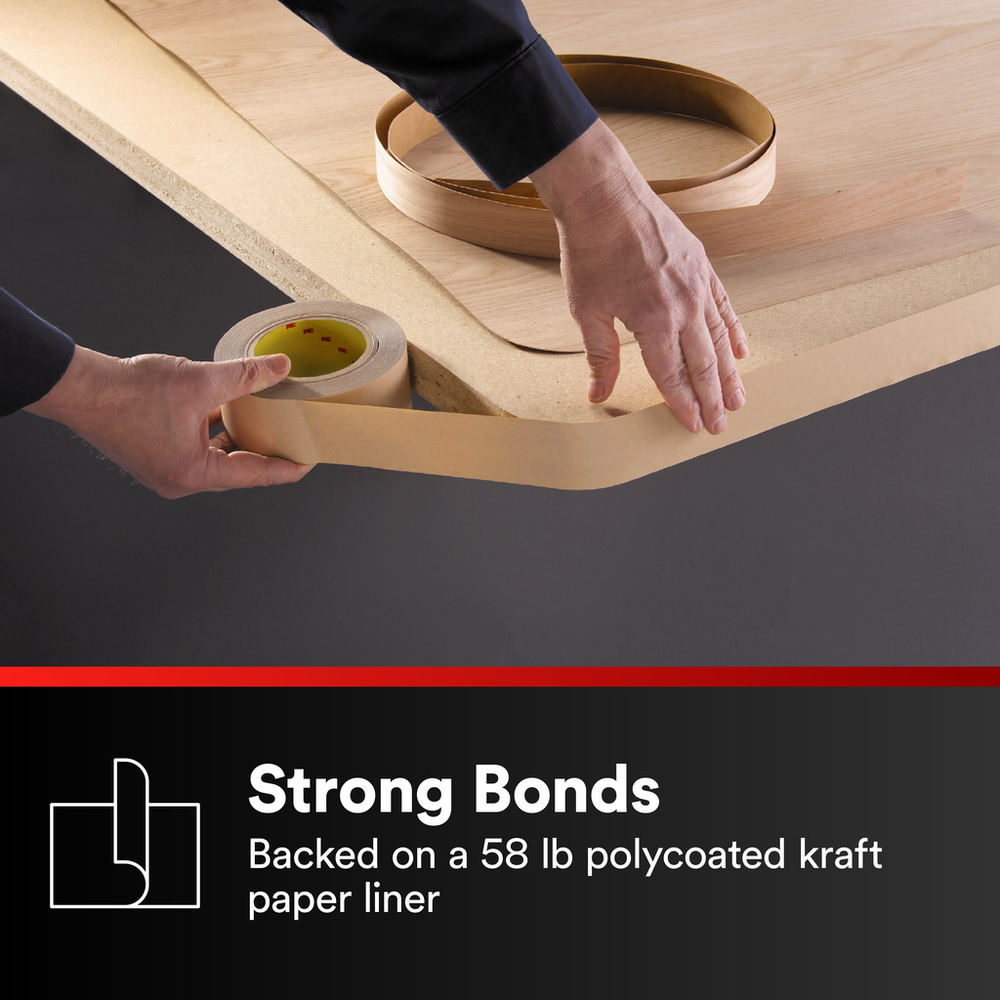

  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Number of Adhesive SidesDouble-sided
Primary Liner ColorTan
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric)54.86
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)609.6
Secondary Liner ColorTan
Maximum Operating Temperature (Celsius)149.0
Secondary Liner58# Polycoated Kraft Paper
Primary Liner Thickness (Metric)0.11
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Product ColorTranslucent
Primary Liner Thickness (Metric) UOMmm
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Units per Case UOMRoll
Primary Liner Thickness (Imperial)4.5
Units per Case1.0
Overall Width (Imperial) UOMin
Overall Width (Imperial)24.0
Shelf Life UOMMonth
Adhesive TypeHigh Performance Acrylic Adhesive 350
Indoor/OutdoorIndoor/Outdoor
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Overall Length (Imperial)60.0
