3M Products & Supplies

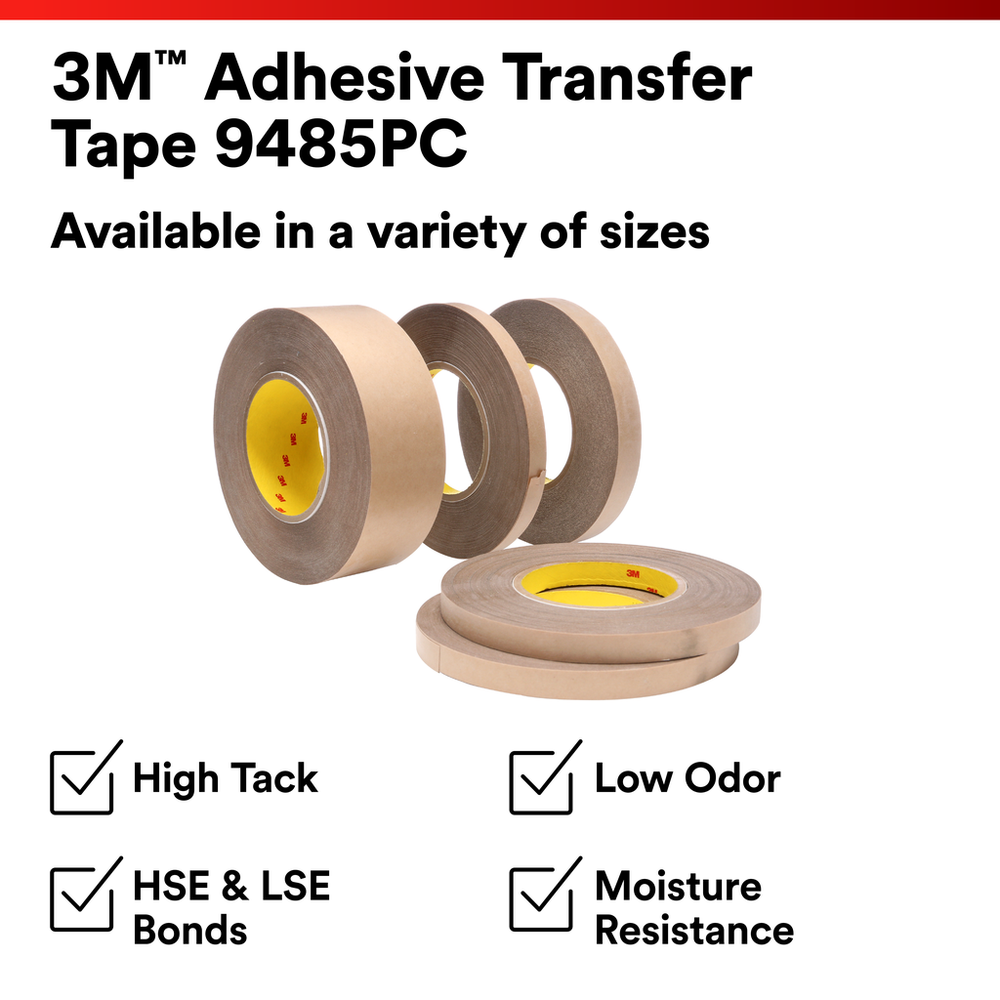

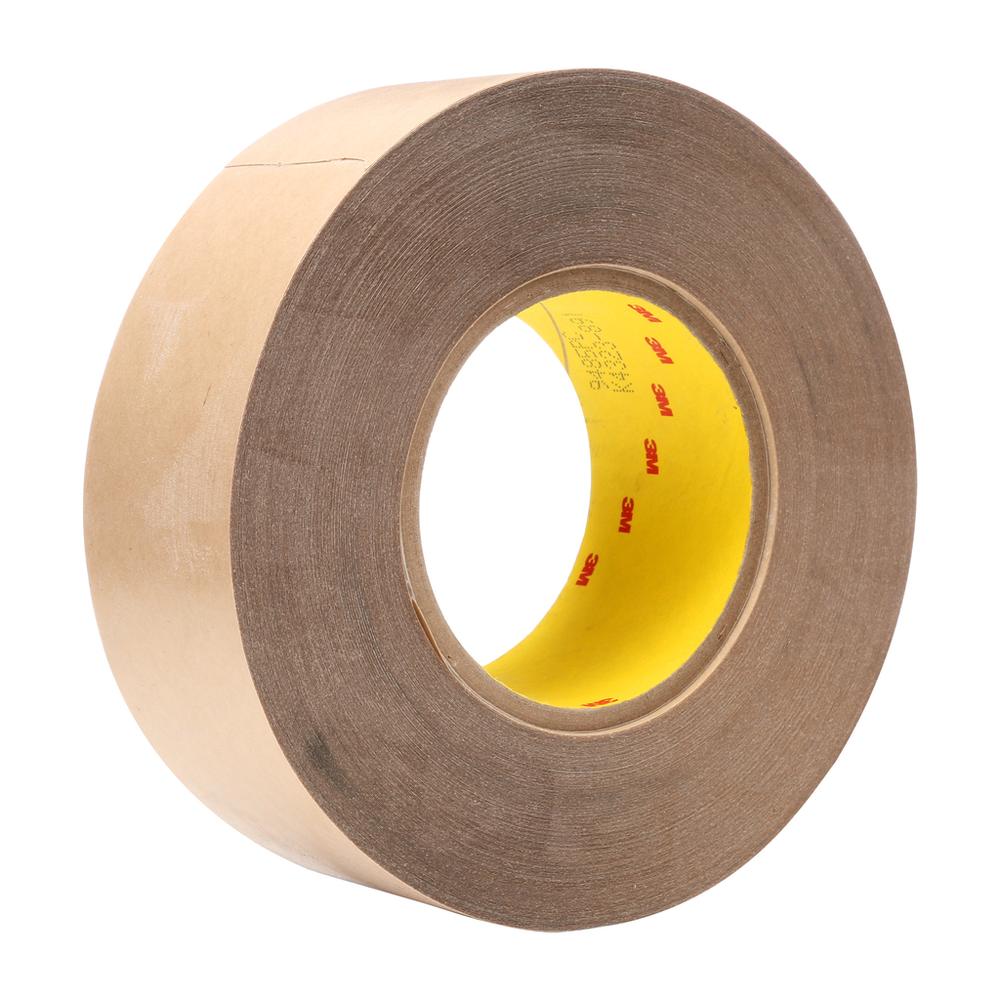

3M™ Adhesive Transfer Tape 9485PC, Clear, 1 1/2 in x 60 yd, 5 mil, 24 Roll/Case - 7010311901

Sold As: 24-Pack
SKU: 7010311901
MPN: 7010311901
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407826
3M ID: 70006255650
5 Digit UPC: 40782
$2,057.38 ($85.72 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Low odor to help improve working environment conditions
  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles

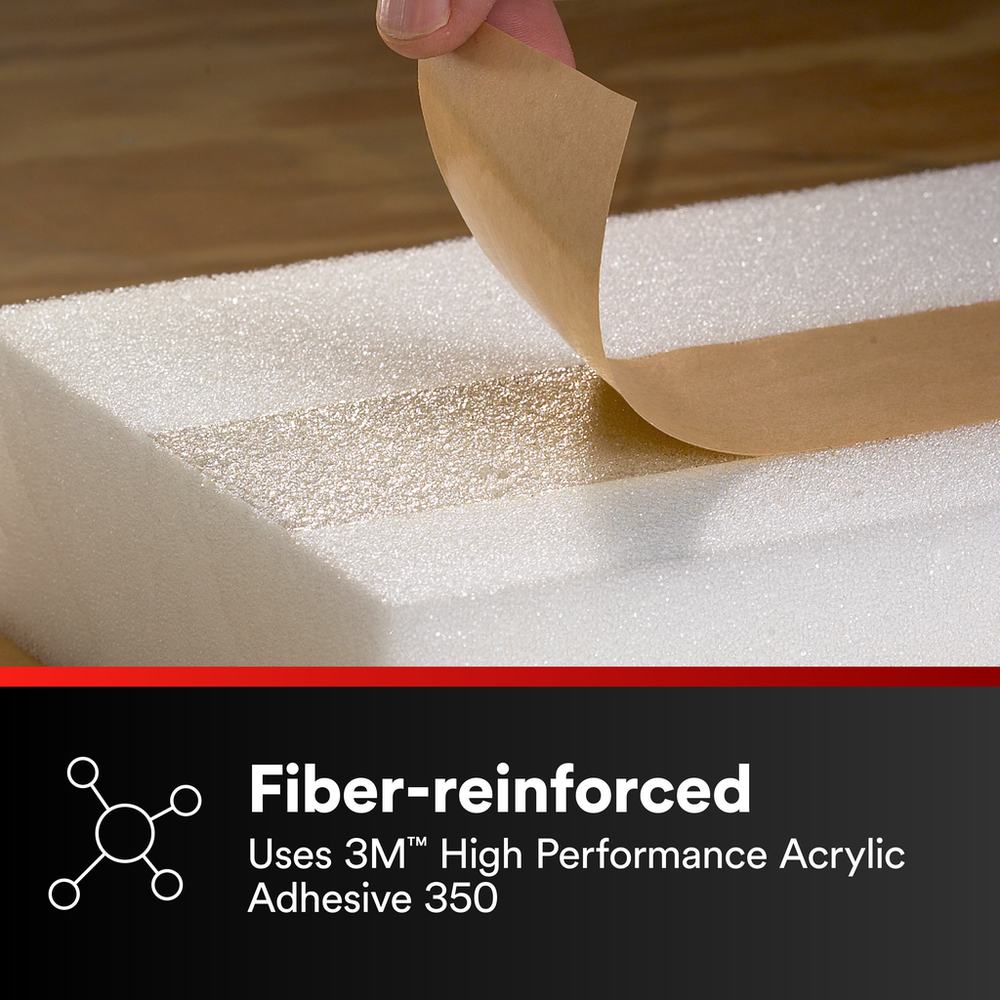

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Offers resistance to humidity, water, solvent, and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)5.0
Adhesive TypeHigh Performance Acrylic Adhesive 350
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)54.86
Units per Case24.0
Maximum Operating Temperature (Celsius)149.0
Overall Width (Imperial) UOMin
Product ColorTranslucent
Primary Liner Thickness (Imperial)4.5
Secondary Liner ColorTan
Maximum Operating Temperature (Fahrenheit) UOMDegree
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric)38.1
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Primary Liner ColorTan
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial) UOMmil
Secondary Liner58# Polycoated Kraft Paper
Number of Adhesive SidesDouble-sided
Overall Length (Imperial)60.0
Maximum Operating Temperature (Fahrenheit)300.0
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)1.5
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Primary Liner Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Shelf Life UOMMonth
