3M Products & Supplies

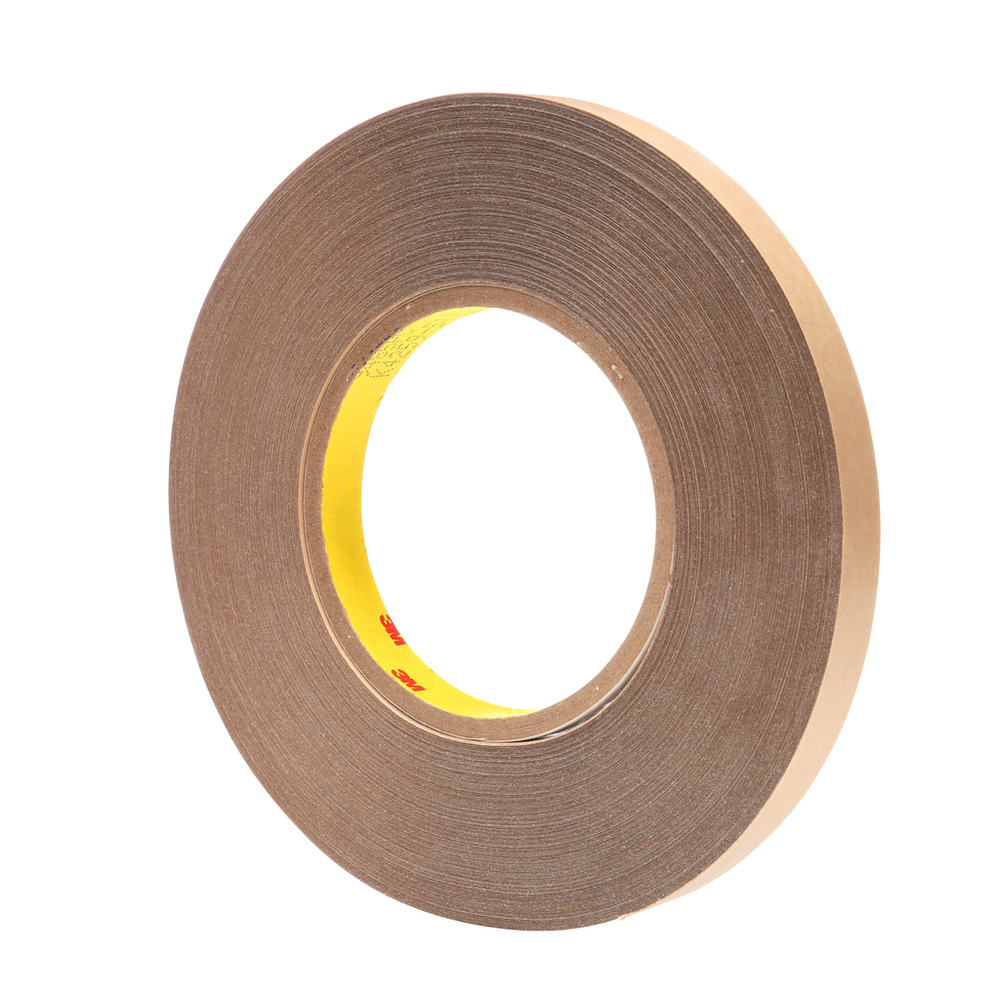

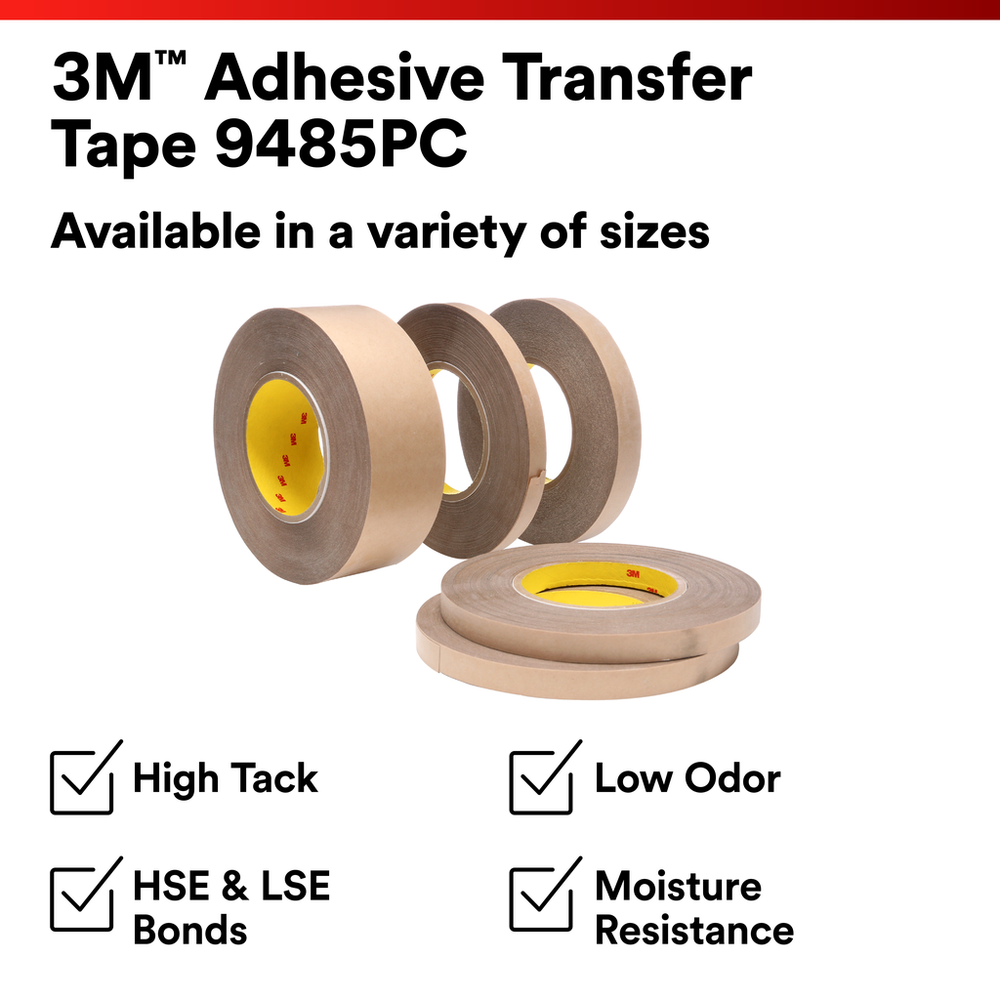

3M™ Adhesive Transfer Tape 9485PC, Clear, 1/2 in x 60 yd, 5 mil, 72 Roll/Case - 7000123366

Sold As: 72-Pack
SKU: 7000123366
MPN: 7000123366
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200634765
3M ID: 70006083615
5 Digit UPC: 63476
$2,057.38 ($28.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Offers resistance to humidity, water, solvent, and chemicals
  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Low odor to help improve working environment conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Length (Imperial)60.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)5.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Primary Liner Thickness (Imperial) UOMmil
Number of Adhesive SidesDouble-sided
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Minimum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner58# Polycoated Kraft Paper
Shelf Life UOMMonth
Overall Width (Metric)12.7
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Adhesive TypeHigh Performance Acrylic Adhesive 350
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case UOMRoll
Secondary Liner ColorTan
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Fahrenheit)300.0
Total Tape Thickness without Liner (Metric)0.127
Primary Liner Thickness (Metric) UOMmm
Primary Liner ColorTan
Product ColorTranslucent
Maximum Operating Temperature (Celsius)149.0
Overall Width (Metric) UOMmm
Overall Length (Metric)54.86
Overall Width (Imperial)0.5
Primary Liner Thickness (Metric)0.11
Primary Liner Thickness (Imperial)4.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case72.0
