3M Products & Supplies

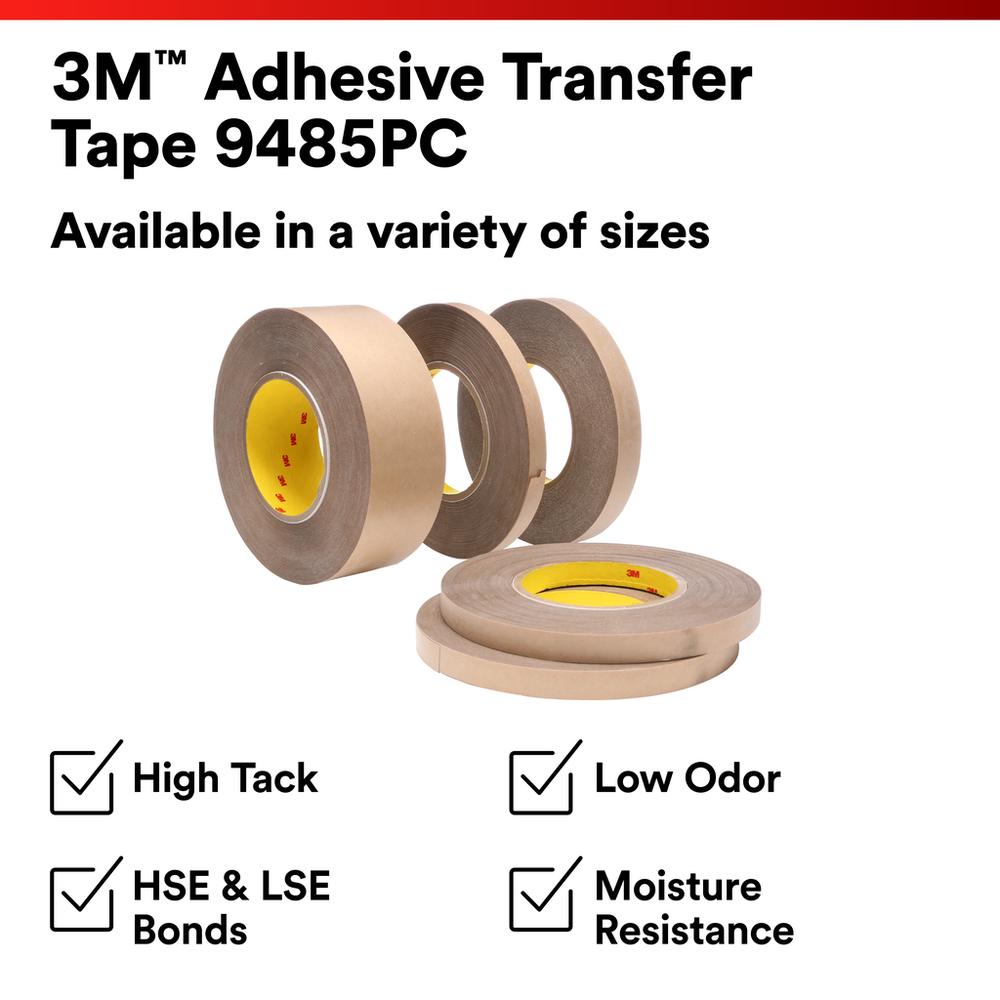

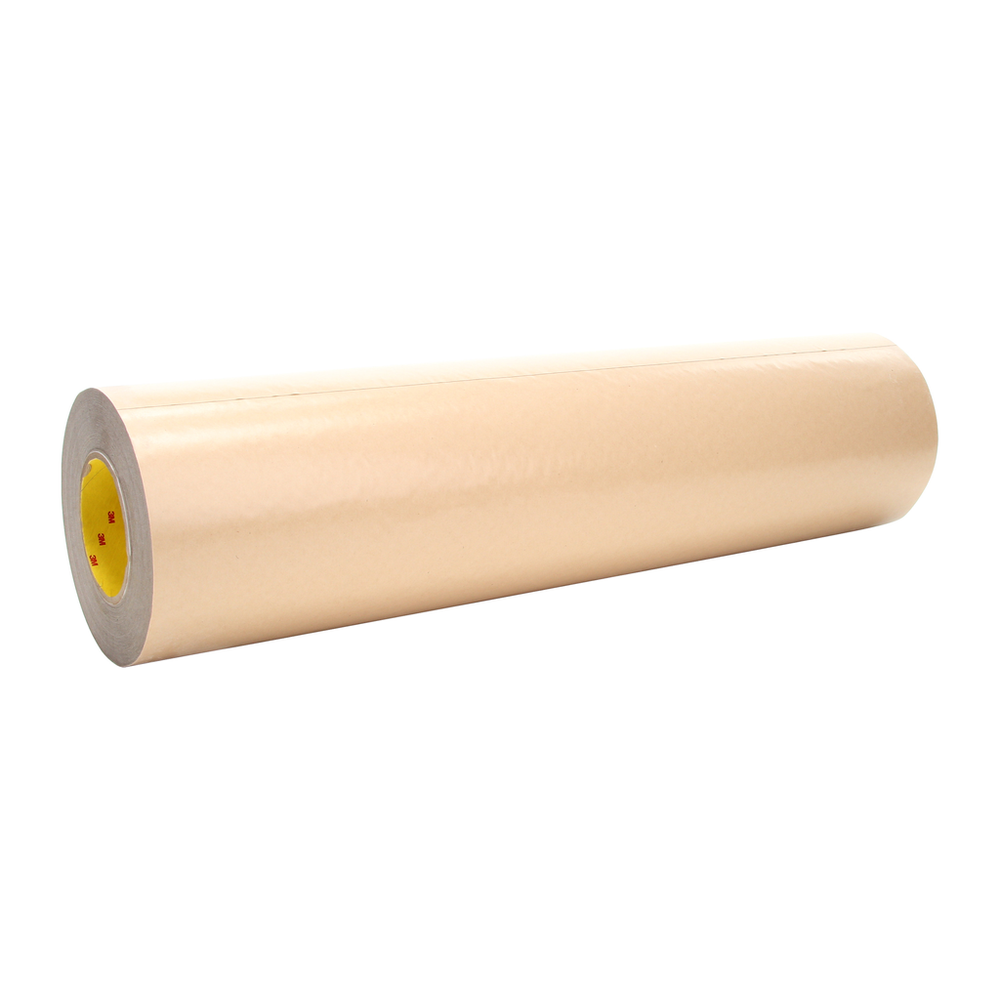

3M™ Adhesive Transfer Tape 9485PC, Clear, 48 in x 60 yd, 5 mil, 1 Roll/Case - 7100134119

SKU: 7100134119
MPN: 7100134119
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200379116
3M ID: 70006227451
5 Digit UPC: 37911
$2,743.18 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

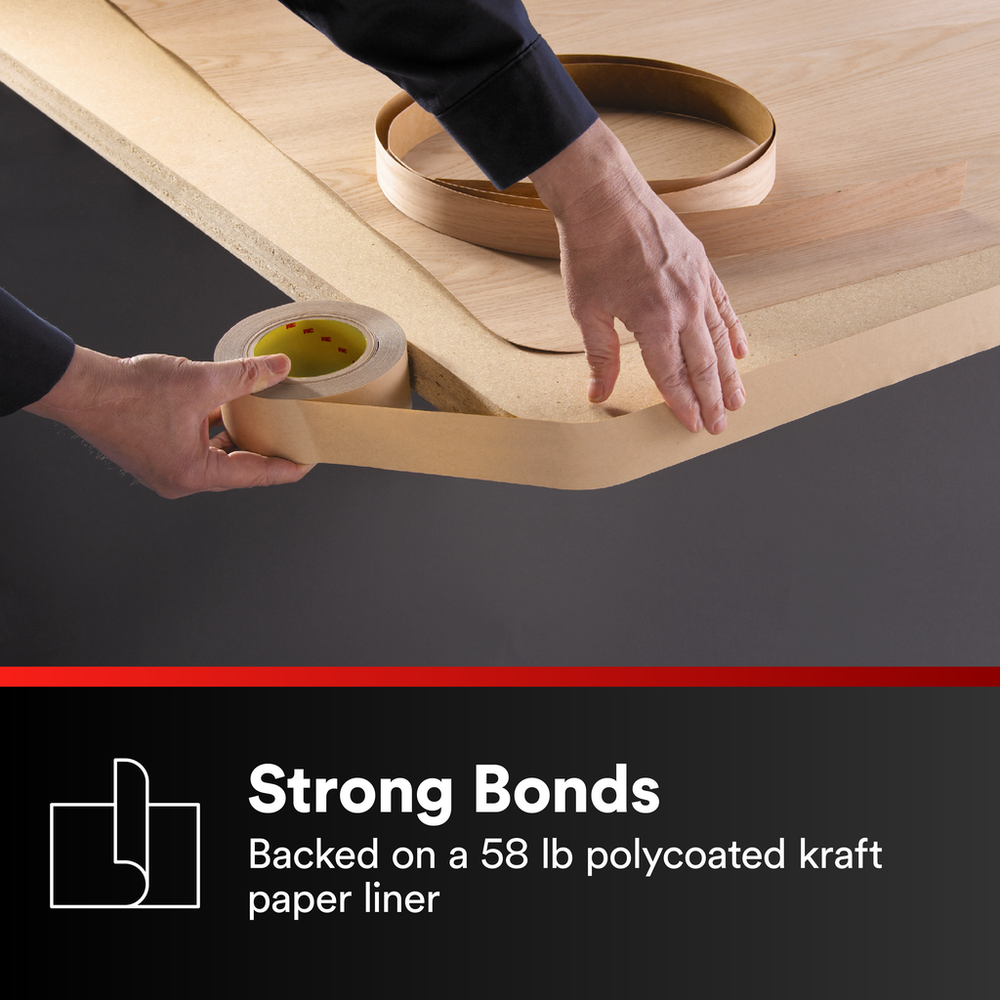

  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles

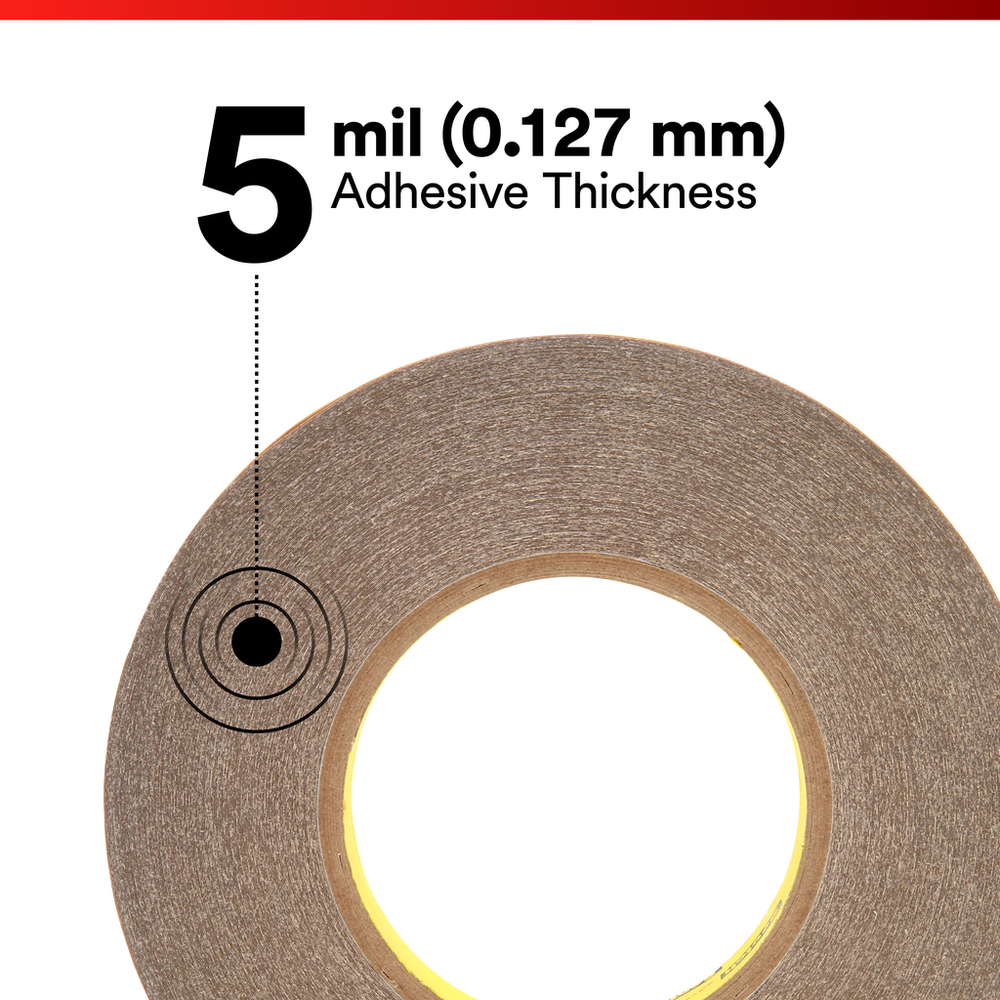

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Offers resistance to humidity, water, solvent, and chemicals
  • Low odor to help improve working environment conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Secondary Liner ColorTan
Primary Liner Thickness (Imperial)4.5
Overall Width (Imperial)48.0
Primary Liner Thickness (Metric)0.11
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Overall Width (Metric) UOMmm
Primary Liner ColorTan
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric)0.127
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Adhesive TypeHigh Performance Acrylic Adhesive 350
Secondary Liner58# Polycoated Kraft Paper
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit)-40.0
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric)54.86
Maximum Operating Temperature (Celsius)149.0
Product ColorTranslucent
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Imperial) UOMin
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric)1219.2
Total Tape Thickness without Liner (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)60.0
Maximum Operating Temperature (Fahrenheit)300.0
Units per Case1.0
