3M Products & Supplies

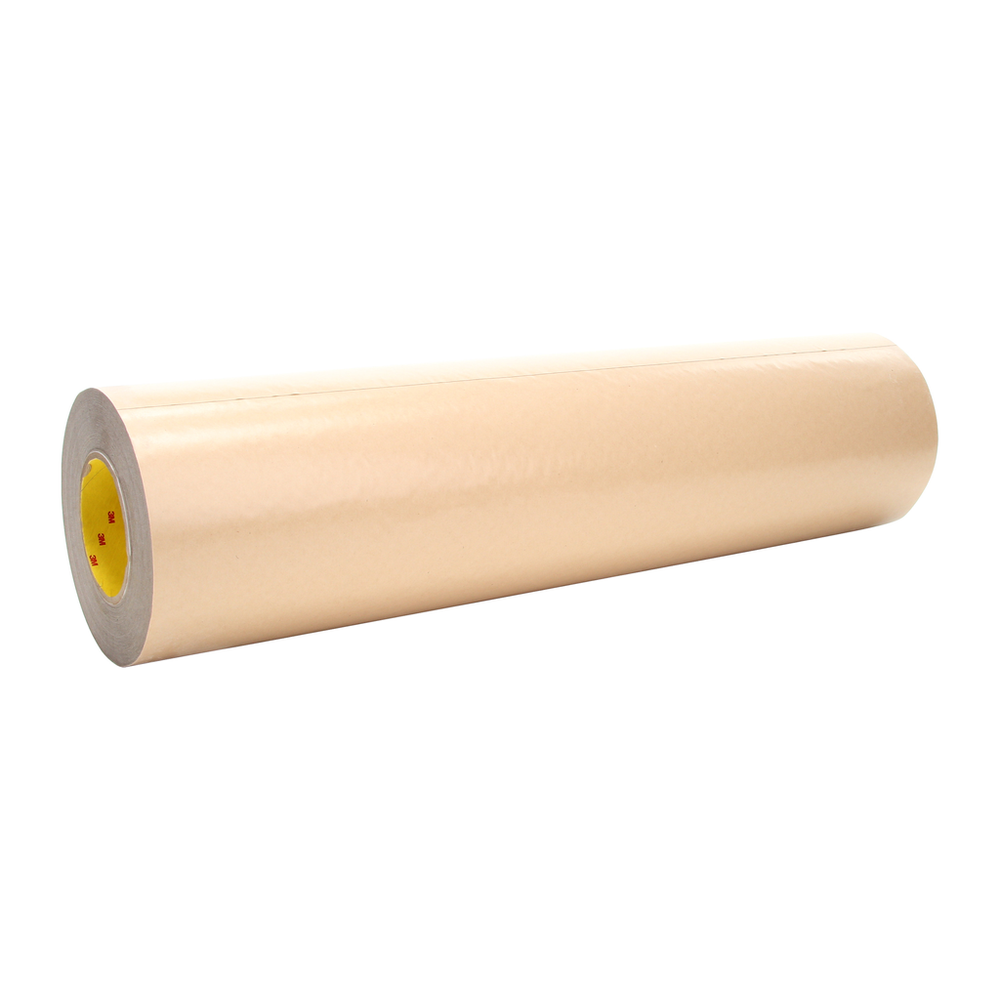

3M™ Adhesive Transfer Tape 9485PC, Clear, 24 in x 60 yd, 5 mil, 1 Roll/Case - 7000123365

SKU: 7000123365
MPN: 7000123365
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200634628
3M ID: 70006083334
5 Digit UPC: 63462
$1,371.59 each
Hurry up! Current stock:

Product Description

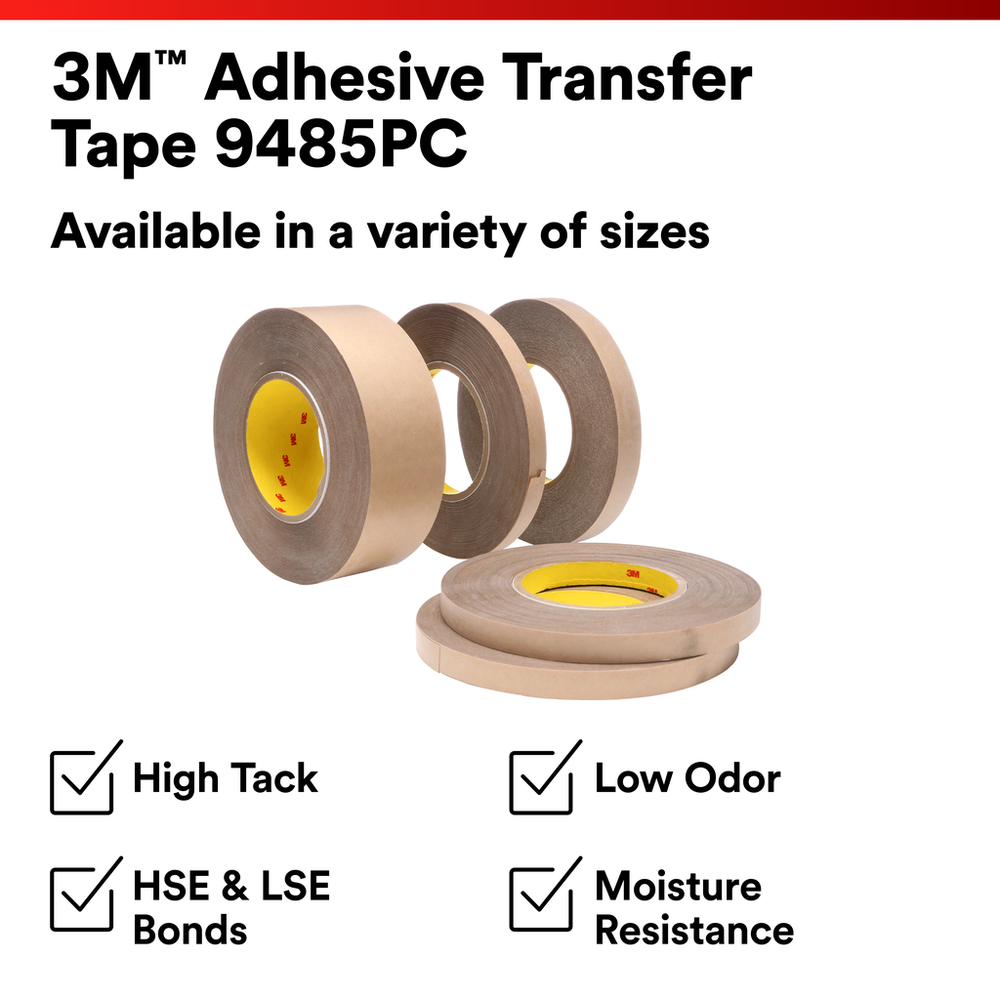

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

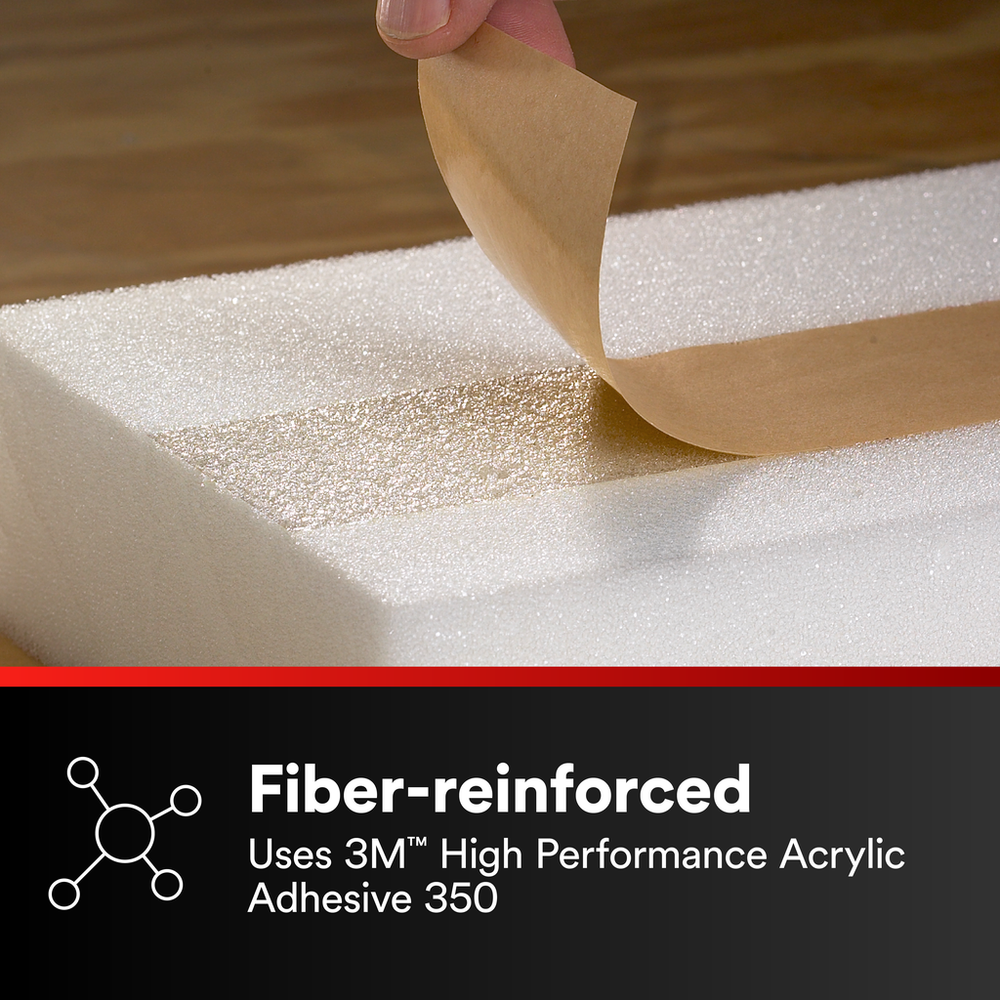

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Low odor to help improve working environment conditions
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • Offers resistance to humidity, water, solvent, and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Adhesive TypeHigh Performance Acrylic Adhesive 350
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMMonth
Primary Liner Thickness (Metric)0.11
Minimum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner ColorTan
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Primary Liner ColorTan
Primary Liner Thickness (Metric) UOMmm
Units per Case1.0
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Overall Length (Imperial)60.0
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)54.86
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Product ColorTranslucent
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner Thickness (Imperial)4.5
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Imperial)24.0
Maximum Operating Temperature (Celsius)149.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Secondary Liner58# Polycoated Kraft Paper
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric)0.127
Overall Width (Metric)609.6
