3M Products & Supplies

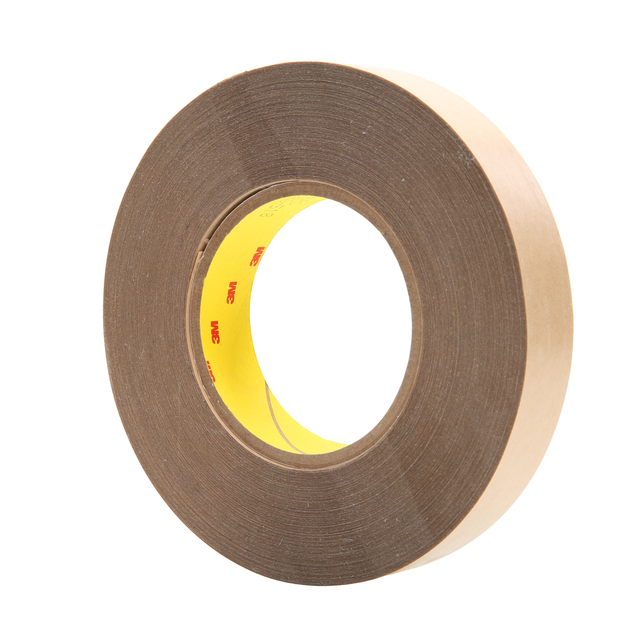

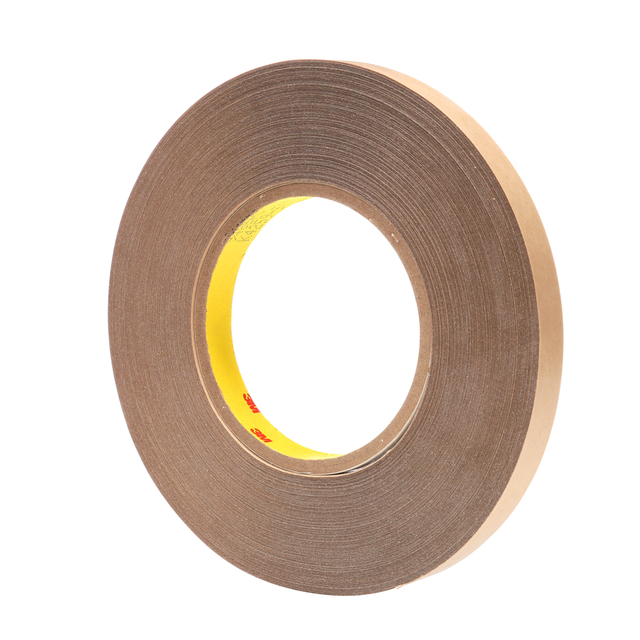

3M™ Adhesive Transfer Tape 9485PC, Clear, 2 in x 60 yd, 5 mil, 24 Roll/Case - 7000123391

Sold As: 24-Pack
SKU: 7000123391
MPN: 7000123391
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200674136
3M ID: 70006095452
5 Digit UPC: 67413
$2,743.18 ($114.30 / Count)
Hurry up! Current stock:

Product Description

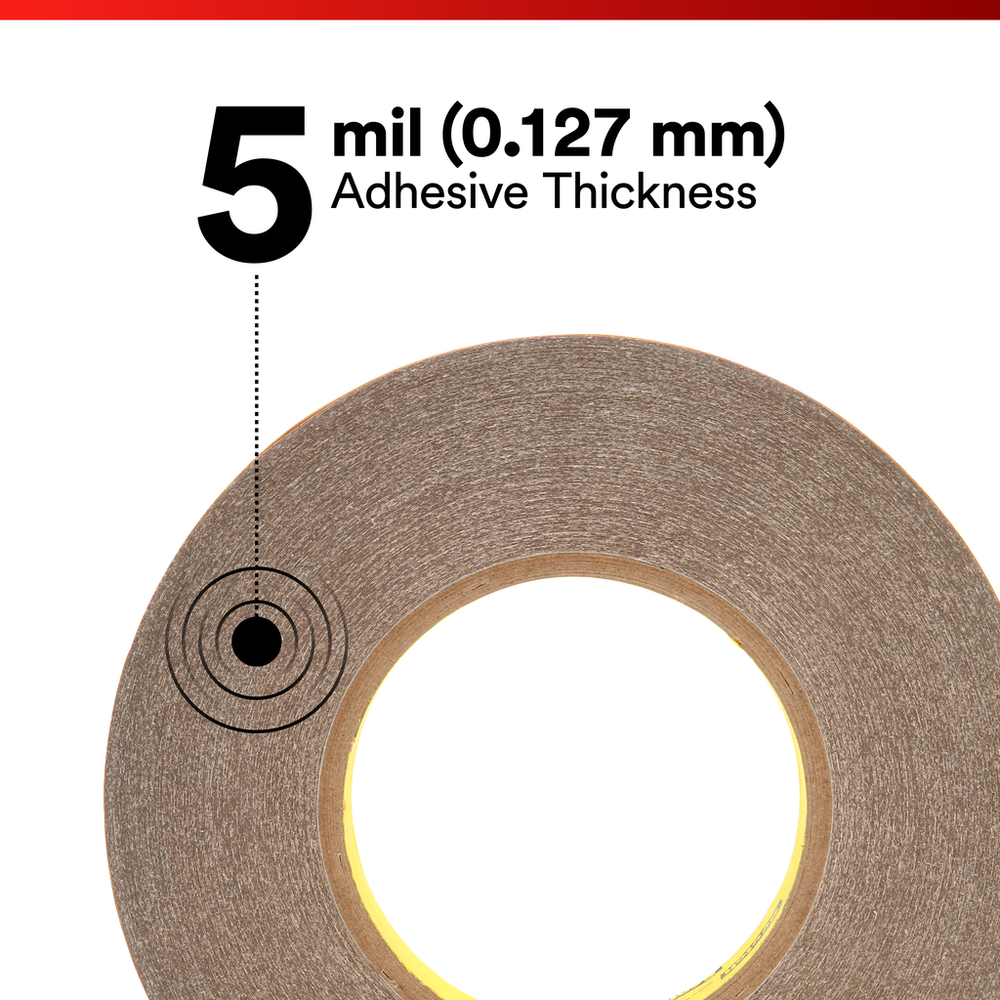

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength
  • Low odor to help improve working environment conditions
  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC

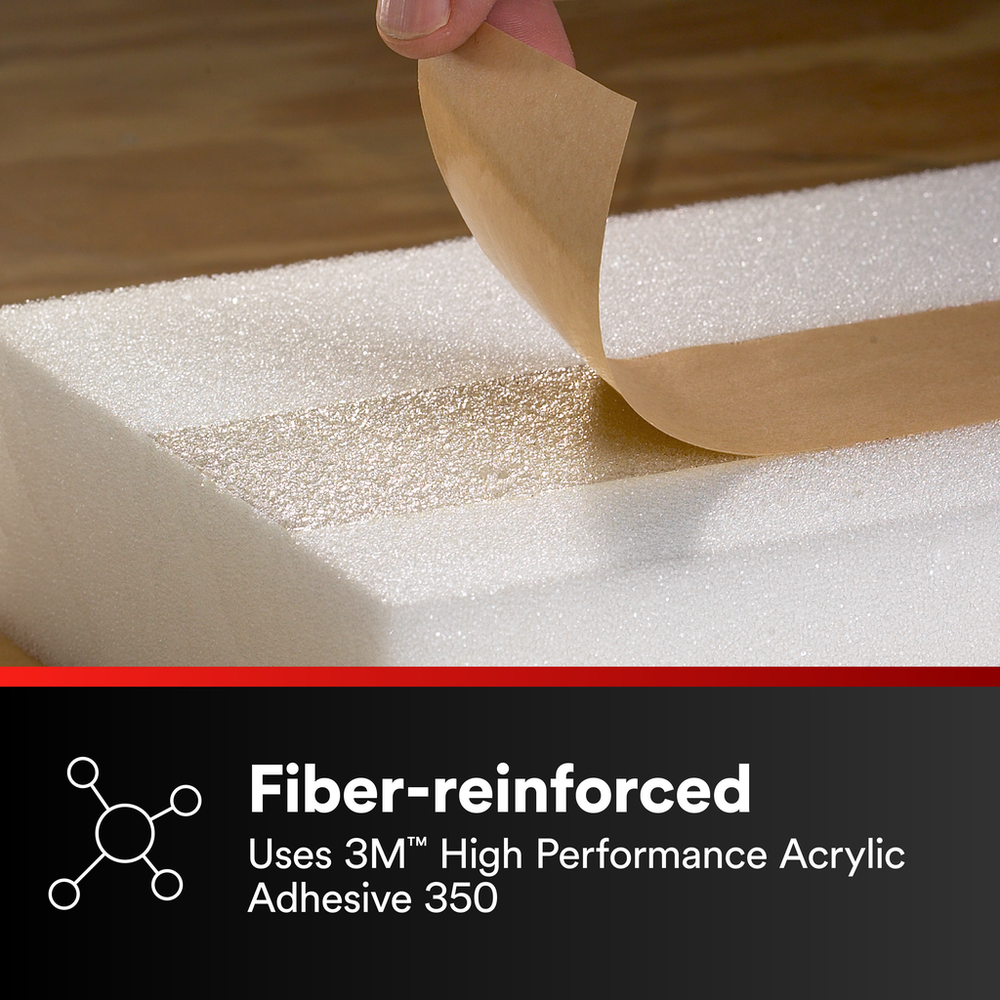

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Offers resistance to humidity, water, solvent, and chemicals
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case UOMRoll
Product ColorTranslucent
Overall Length (Imperial)60.0
Primary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Metric)54.86
Secondary Liner58# Polycoated Kraft Paper
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.127
Overall Length (Imperial) UOMyd
Secondary Liner ColorTan
Total Tape Thickness without Liner (Imperial)5.0
Units per Case24.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeHigh Performance Acrylic Adhesive 350
Overall Width (Imperial)2.0
Primary Liner Thickness (Metric)0.11
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Primary Liner Thickness (Imperial)4.5
Maximum Operating Temperature (Celsius)149.0
Primary Liner Thickness (Metric) UOMmm
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Shelf Life UOMMonth
Overall Width (Metric) UOMmm
Primary Liner ColorTan
Number of Adhesive SidesDouble-sided
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)50.8
