3M Products & Supplies

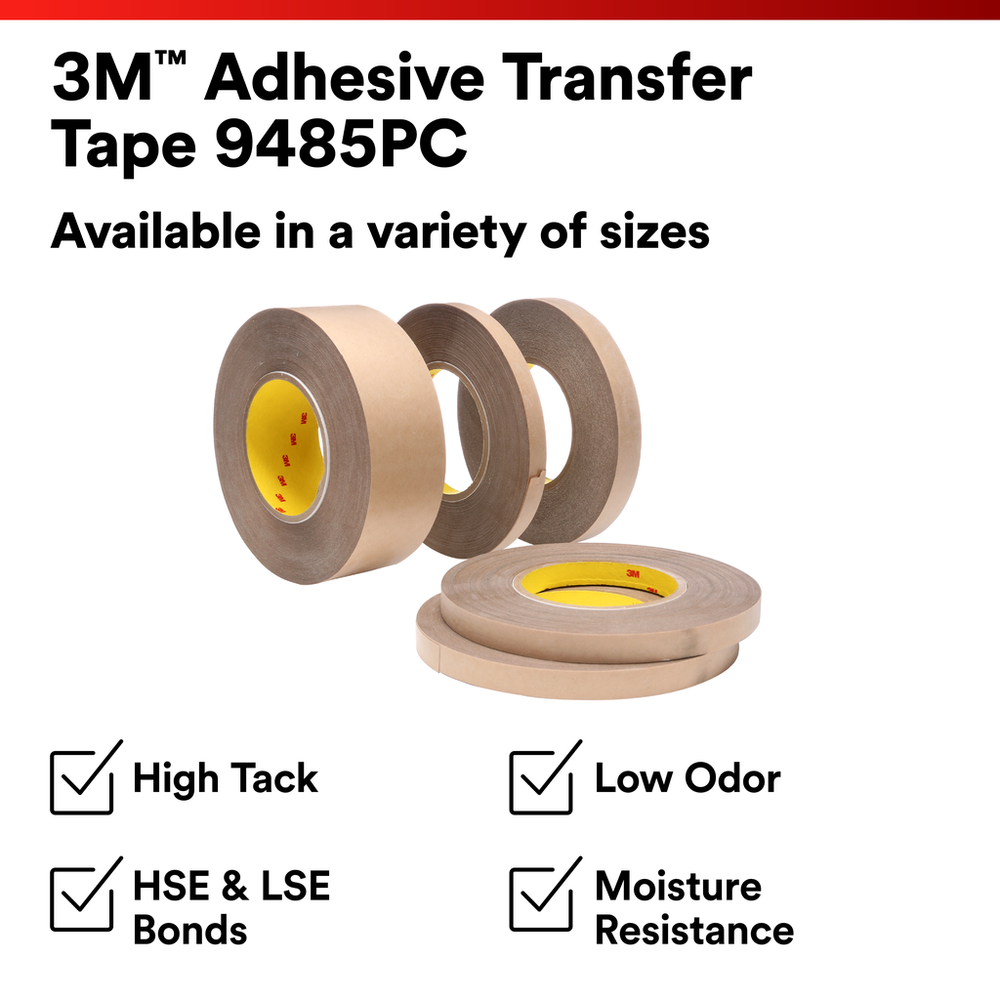

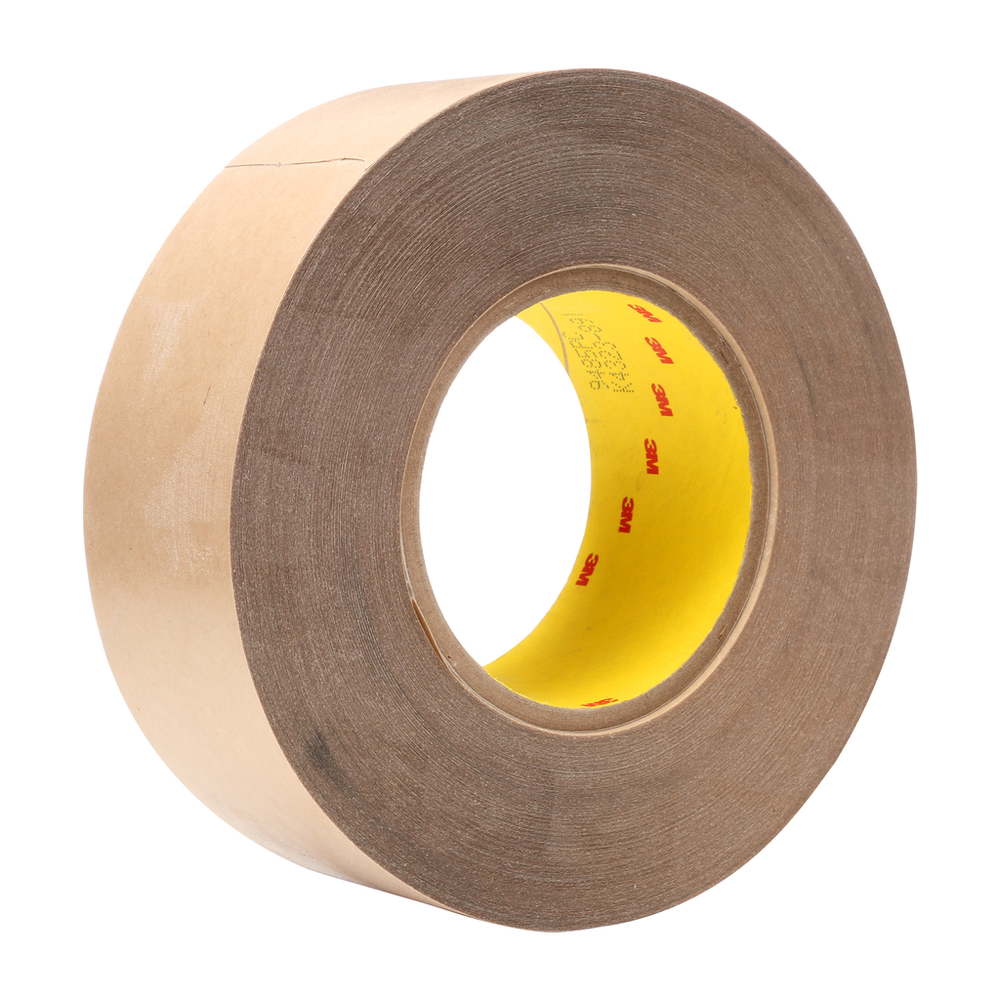

3M™ Adhesive Transfer Tape 9485PC, Clear, 3 in x 60 yd, 5 Mil, 12/Case - 7010373828

Sold As: 12-Pack
SKU: 7010373828
MPN: 7010373828
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396090
3M ID: 70006242773
5 Digit UPC: 39609
$2,057.39 ($171.45 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9485PC is a 5 mil (127µm) solution that leverages the power of 3M™ High Performance Acrylic Adhesive 350, a high-performance acrylic adhesive designed for applications requiring high shear strength. Mounted on a tan, 58 lb polycoated kraft paper liner for moisture resistance and wrinkle minimization, this transfer tape is a solution for bonding high and low surface energy (HSE and LSE) materials. Additionally, this tape uses fiber reinforcement for its adhesive, improving roll stability, even in narrow widths. Choose the high-temperature performance of 3M™ Adhesive Transfer Tape 9485PC.

Features

  • Utilizes a fiber-reinforced adhesive for roll stability in narrow widths and resists both adhesive edge picking and liner confusion that can result from adhesive oozing
  • Leverages 3M™ High Performance Acrylic Adhesive 350 for high tack, initial adhesion, and shear strength

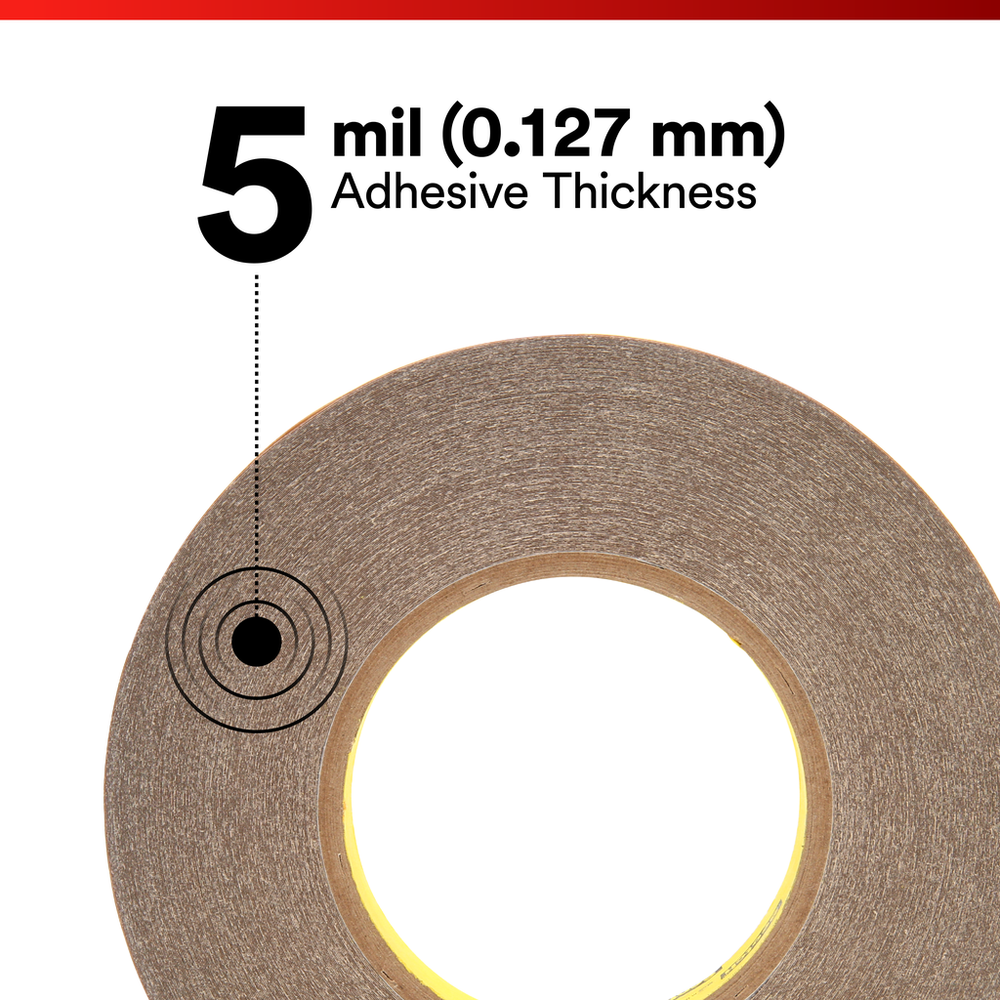

  • The 5 mil (127µm) thick version of 3M™ Adhesive Transfer Tape 9482PC
  • Low odor to help improve working environment conditions
  • A 58 lb polycoated kraft paper liner helps provide moisture resistance while minimizing wrinkles
  • Offers resistance to humidity, water, solvent, and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)5.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial)3.0
Overall Width (Metric)76.2
Primary Liner Thickness (Imperial)4.5
Primary Liner ColorTan
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Specifications MetCSA-C22.2 No. 0.15, UL 746C, UL 969
Product ColorTranslucent
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Metric)0.11
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)54.86
Total Tape Thickness without Liner (Metric)0.127
Units per Case12.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeHigh Performance Acrylic Adhesive 350
Units per Case UOMRoll
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.0
Secondary Liner58# Polycoated Kraft Paper
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner ColorTan
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
