3M Products & Supplies

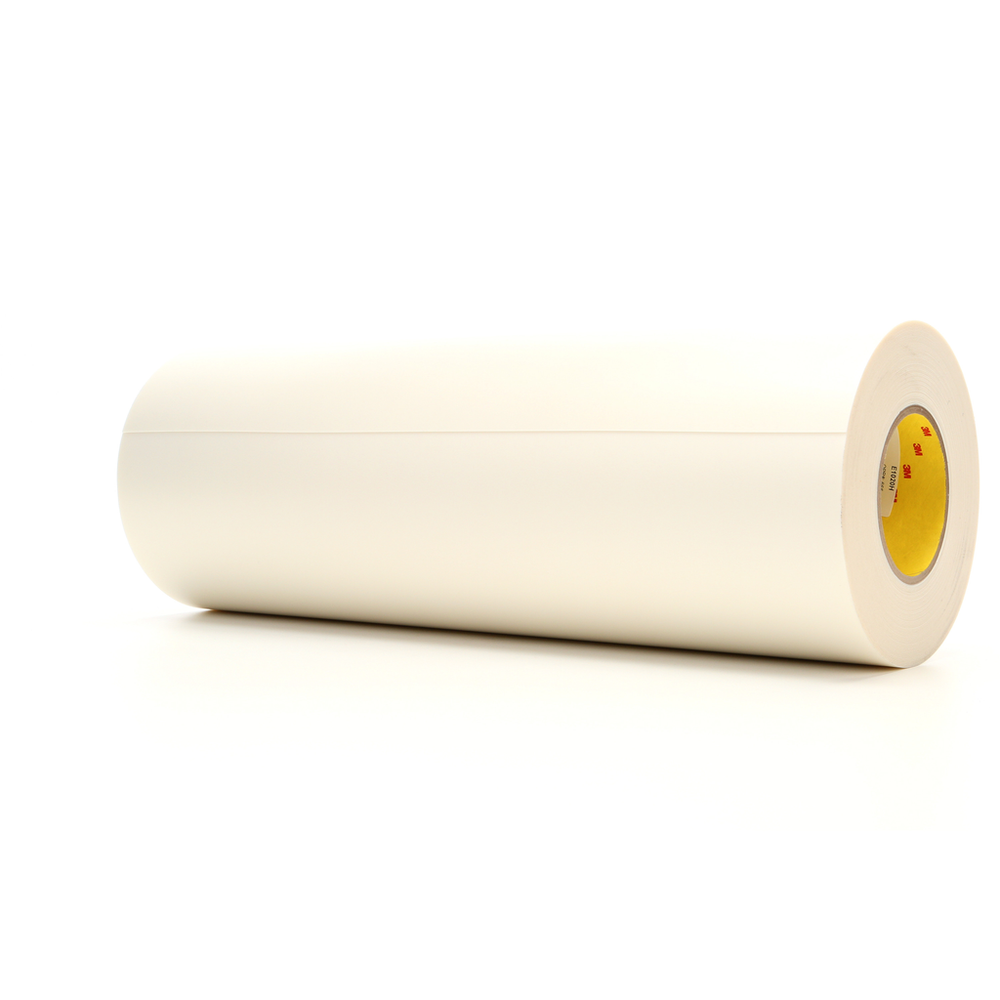

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 20 in x 36 yd, 20 mil, 1 Roll/Case - 7100314611

SKU: 7100314611
MPN: 7100314611
Lead Time: 18 working days.
UPC: 00068060005984
3M ID: 70007559126
$1,056.94 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary LinerPolycoated Polyester
Urethane SleevesYes
Product ColorWhite
Print Quality (Series)10 Series
Warranty Period2 Years from Date of Manufacture
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Overall Length (Metric)32.918
Application Thickness (Metric)0.5
Application Thickness (Imperial)20
Application Thickness (Imperial) UOMmil
Overall Length (Imperial)36.0
Overall Width (Metric)508.0
Overall Width (Metric) UOMmm
Application Thickness (Metric) UOMmm
Overall Width (Imperial)20.0
Adhesive TypeDifferential Acrylate
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
ApplicationFlexographic Plate Mounting
Backing MaterialPolyethylene Foam
Overall Length (Imperial) UOMyd
IndustriesPrint
Print QualityCombination Printing - Standard
