3M Products & Supplies

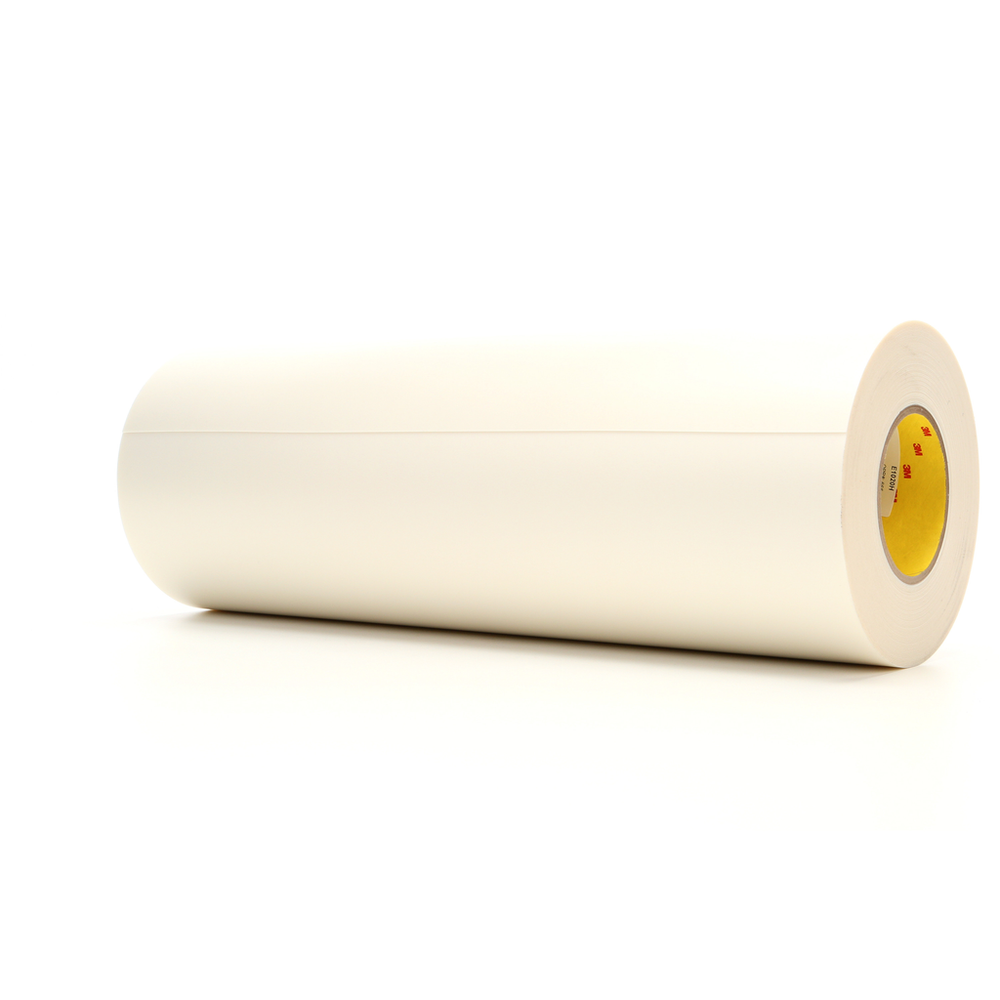

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 16 in x 36 yd, 20 mil, 1 Roll/Case - 7100314480

SKU: 7100314480
MPN: 7100314480
Lead Time: 18 working days.
UPC: 00068060005793
3M ID: 70007559076
$845.55 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary LinerPolycoated Polyester
Print Quality (Series)10 Series
Primary Liner Thickness (Metric)0.11
Overall Length (Imperial) UOMyd
Overall Width (Metric)406.4
Overall Length (Imperial)36.0
Warranty Period2 Years from Date of Manufacture
Total Tape Thickness without Liner (Imperial)20.0
Print QualityCombination Printing - Standard
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Backing MaterialPolyethylene Foam
Application Thickness (Metric) UOMmm
Overall Width (Imperial)16.0
Overall Length (Metric)32.918
Primary Liner Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Product ColorWhite
Application Thickness (Imperial) UOMmil
IndustriesPrint
Urethane SleevesYes
Application Thickness (Imperial)20
Application Thickness (Metric)0.5
ApplicationFlexographic Plate Mounting
Adhesive TypeDifferential Acrylate
Total Tape Thickness without Liner (Imperial) UOMmil
