3M Products & Supplies

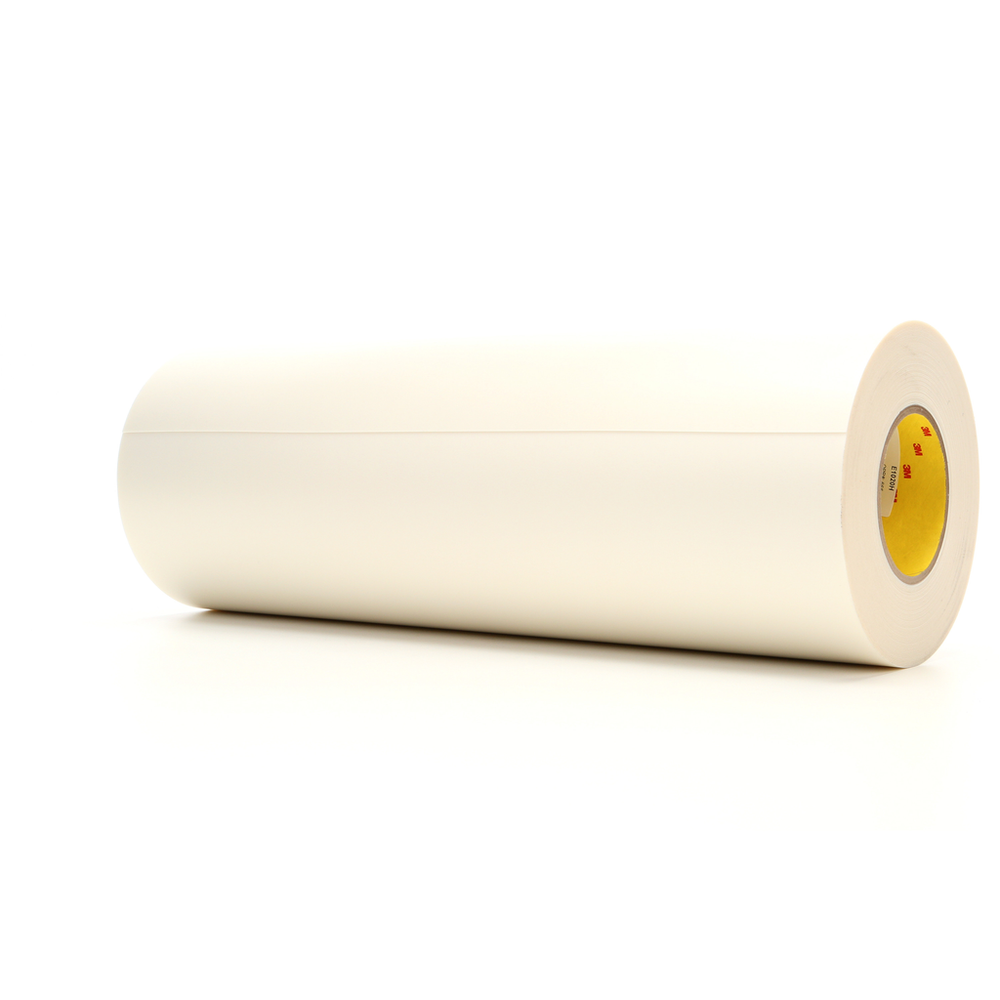

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 24 in x 36 yd, 20 mil, 1 Roll/Case - 7100314488

SKU: 7100314488
MPN: 7100314488
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060006059
3M ID: 70007559167
$1,268.33 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Metric)0.5
Print QualityCombination Printing - Standard
Urethane SleevesYes
Adhesive TypeDifferential Acrylate
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
ApplicationFlexographic Plate Mounting
Overall Width (Metric)609.6
Overall Length (Imperial)36.0
Application Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Print Quality (Series)10 Series
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorWhite
Warranty Period2 Years from Date of Manufacture
Total Tape Thickness without Liner (Imperial)20.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.918
Primary Liner Thickness (Metric)0.11
Primary LinerPolycoated Polyester
Overall Width (Imperial)24.0
Application Thickness (Metric) UOMmm
Application Thickness (Imperial)20
IndustriesPrint
Primary Liner Thickness (Metric) UOMmm
Backing MaterialPolyethylene Foam
