3M Products & Supplies

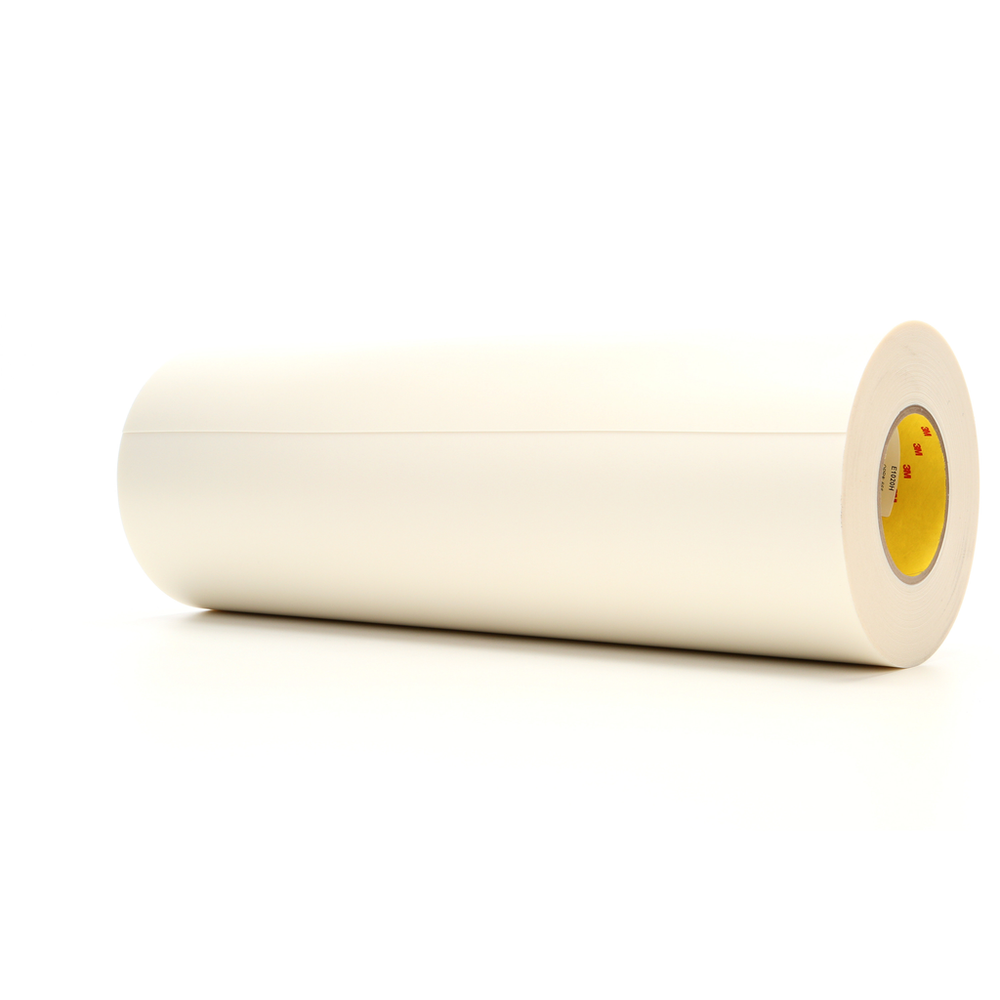

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H, White, 22 in x 36 yd, 20 mil, Roll - 7100367187

SKU: 7100367187
MPN: 7100367187
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060553787
3M ID: UU013531874
$1,162.64 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
Spec Sheet



Downloads

Specifications

Overall Width (Imperial) UOMin
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Width (Imperial)22.0
Overall Width (Metric)558.8
Backing MaterialPolyethylene Foam
Application Thickness (Imperial) UOMmil
Primary LinerPolycoated Polyester
Print Quality (Series)10 Series
Print QualityCombination Printing - Standard
ApplicationFlexographic Plate Mounting
Primary Liner Thickness (Metric)0.11
Application Thickness (Imperial)20
Adhesive TypeDifferential Acrylate
IndustriesPrint
Shelf Life730
Application Thickness (Metric)0.5
Primary Liner Thickness (Metric) UOMmm
Product ColorWhite
Application Thickness (Metric) UOMmm
Urethane SleevesYes
Warranty Period2 Years from Date of Manufacture
Primary Liner Thickness (Imperial)4.5
Primary Liner Thickness (Imperial) UOMmil
